Baldor L3356 - .25 HP, 3450RPM, 1 Phase, 60HZ, 42, 3316L, TEFC, F1 60HZ Single Phase Single Phase 25 HP

Save $150.75
BaldorSKU: L3356

Price:
Sale price$452.25 Regular price$603.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

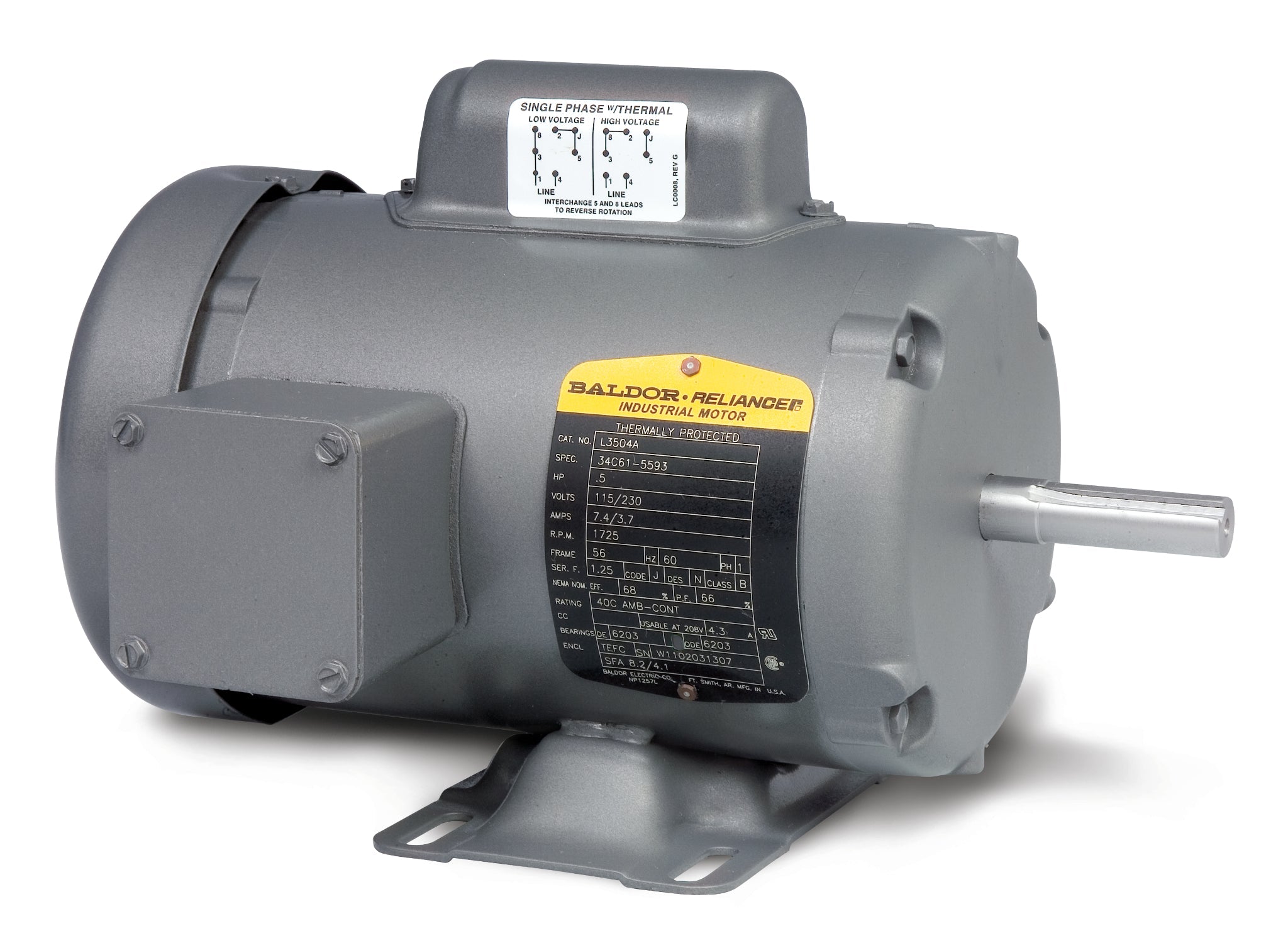

Baldor L3356 - .25 HP Single Phase Enclosed Motor

The Baldor L3356 is a high-performance .25 HP single phase enclosed motor designed for reliability and efficiency. Operating at 3450 RPM and powered by a 60HZ electrical supply, this motor is ideal for various applications requiring dependable performance. With a TEFC (Totally Enclosed Fan Cooled) design, it ensures optimal protection against dust and moisture, making it suitable for both indoor and outdoor use.

Specifications:

  • Power: .25 HP
  • Speed: 3450 RPM
  • Phase: 1 Phase
  • Frequency: 60HZ
  • Frame: 42
  • Model: 3316L
  • Type: TEFC
  • Product Code: L3356

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor L3356 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568100080
Supplier Part Number L3356
Category AC Motors
Subcategory Single Phase Enclosed
Product Family General Purpose
Agency Approvals CURUS, C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 18.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number L3356
Current @ Voltage 2.000 A @ 230.0 V, 2.400 A @ 208.0 V, 4.000 A @ 115.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 57.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Feedback Signal NONE
Frame 42
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
High Voltage Full Load Amps 2.0 a
Insulation Class B
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3316L
Mounting Arrangement F1
Number of Poles 2
Output 0.250 hp
Output @ Frequency .250 HP @ 60 HZ
Overall Length 9.56 IN
Phase 1
Power Factor 64
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.35
Shaft Diameter 0.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 115 V, 230 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
