Baldor L1512T - 10 HP, 1725RPM, 1 Phase, 60HZ, 215T, 3737LC, Opsb, F 60HZ Single Phase Single Phase 10 HP

Save $890.75
BaldorSKU: L1512T

Price:
Sale price$2,672.25 Regular price$3,563.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

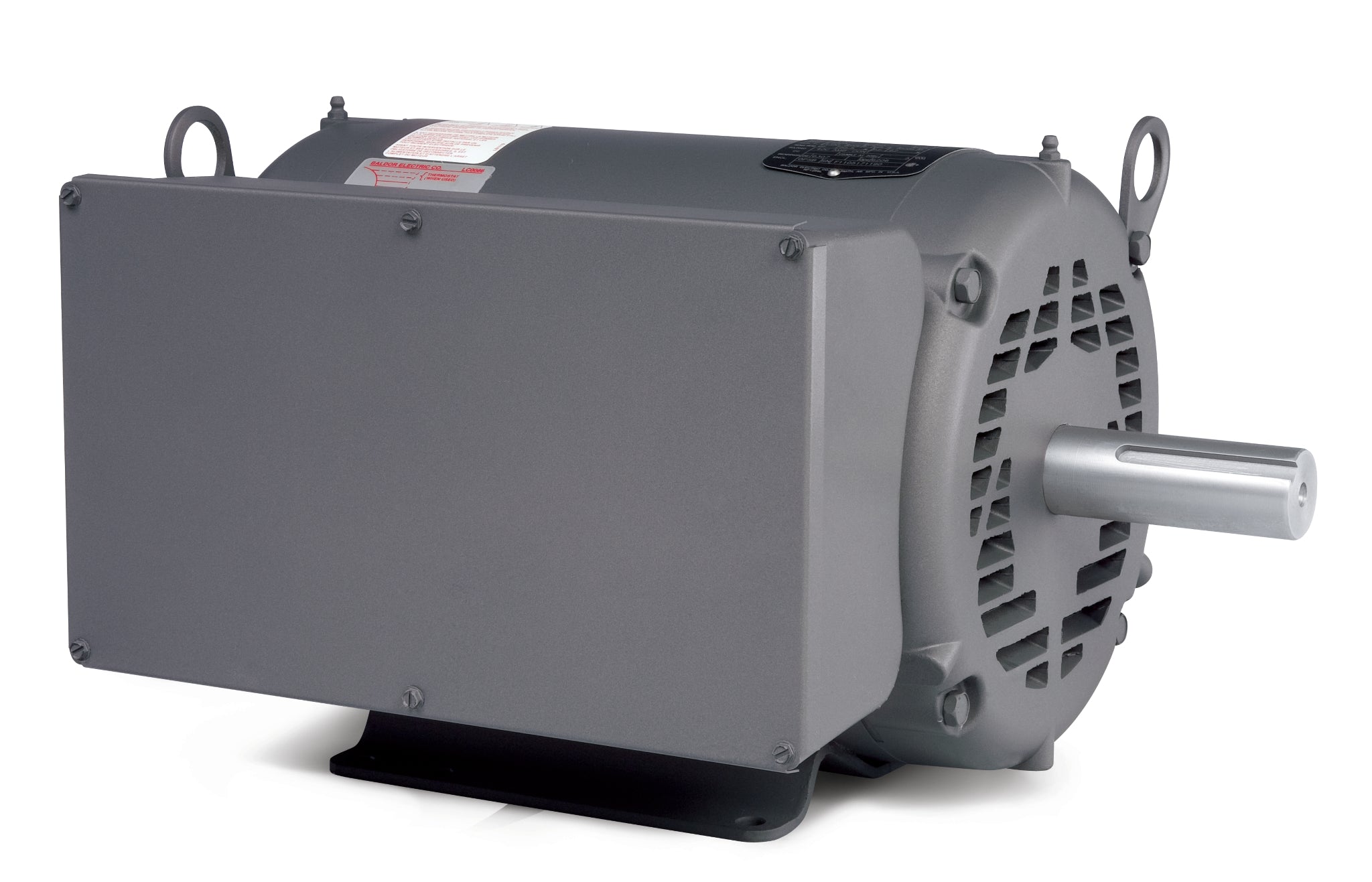

Baldor-Reliance Single Phase Open Motor - Model L1512T

Upgrade your pumping system with the Baldor L1512T, a powerful 10 HP single-phase motor designed for efficiency and reliability. Operating at 1725 RPM and 60HZ, this motor is ideal for various applications requiring robust performance.

  • Power: 10 HP
  • Speed: 1725 RPM
  • Phase: Single Phase
  • Frequency: 60HZ
  • Frame Size: 215T
  • Type: Open
  • Product Code: L1512T

This Baldor-Reliance motor is perfect for those looking for a dependable solution in AC motors, specifically tailored for pump applications. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right fit for your needs.

If you have questions or need assistance in selecting the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor L1512T to ensure compatibility. Don’t hesitate to reach out if you need help finding the right item!

UPC 781568101728
Supplier Part Number L1512T
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 132.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number L1512T
Current @ Voltage 39.000 A @ 230.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 85.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 215T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 39.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code E
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Cap Box
Motor Lead Quantity/Wire Size 2 @ 10 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3737LC
Mounting Arrangement F1
Number of Poles 4
Output 10.000 hp
Output @ Frequency 10.000 HP @ 60 HZ
Overall Length 17.45 IN
Phase 1
Power Factor 97
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V
Voltage @ Frequency 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
