Baldor L1313T - 1.5 HP, 3450RPM, 1 Phase, 60HZ, 143T, 3520L, Open 60HZ Single Phase Single Phase 1.5 HP

Save $235.50
BaldorSKU: L1313T

Price:
Sale price$706.50 Regular price$942.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

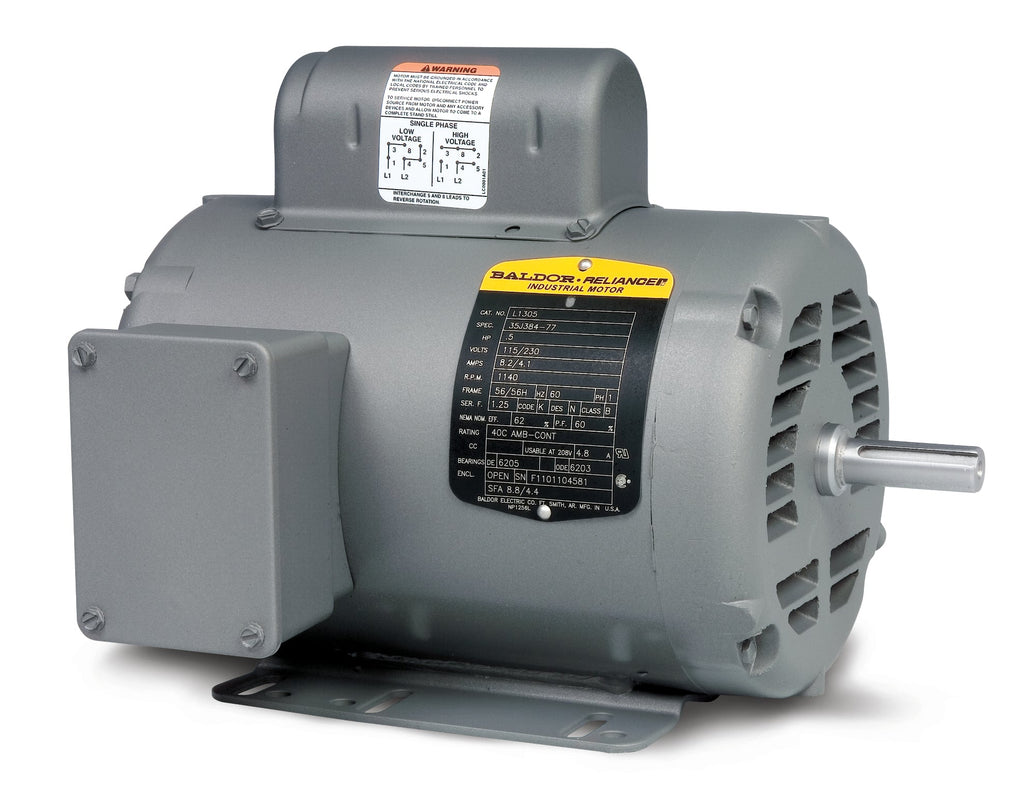

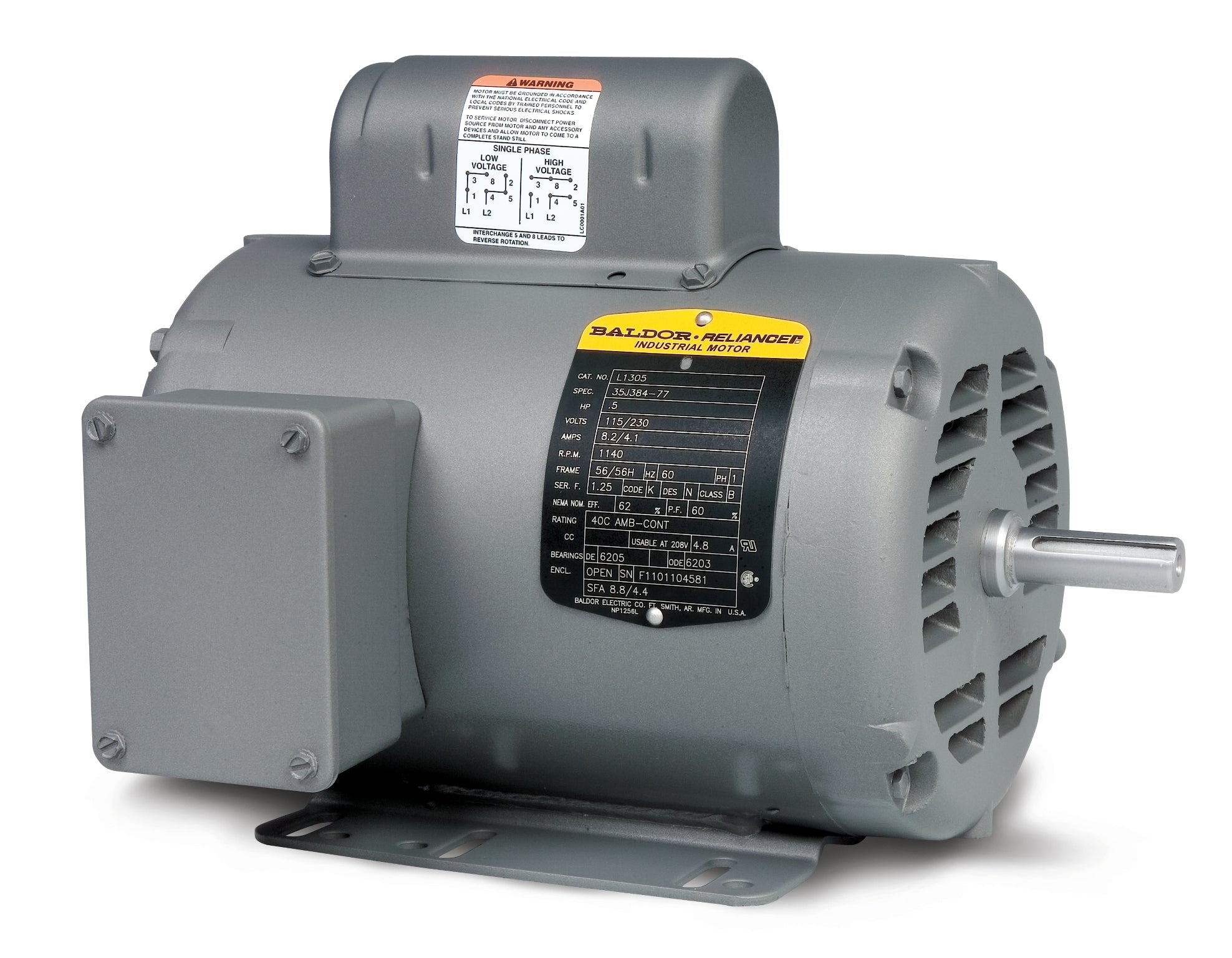

Baldor L1313T - 1.5 HP Single Phase Open Motor

The Baldor L1313T is a high-performance single-phase motor designed for a variety of applications. With a robust 1.5 horsepower and a speed of 3450 RPM, this motor is ideal for powering pumps and other equipment that require reliable performance. Operating at 60Hz, this motor features a 143T frame and is built for durability and efficiency.

Key Specifications:

  • Power: 1.5 HP
  • Speed: 3450 RPM
  • Phase: Single Phase
  • Frequency: 60Hz
  • Frame: 143T
  • Product Code: L1313T

This Baldor-Reliance motor is an excellent choice for those seeking a dependable and efficient solution for their pumping needs. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right fit for your application.

If you have questions or need assistance in finding the right pump, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor L1313T to ensure compatibility. Don't hesitate to reach out if you need help!

UPC 781568101384
Supplier Part Number L1313T
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals C UR US, CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 36.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number L1313T
Current @ Voltage 8.900 A @ 230.0 V, 9.300 A @ 208.0 V, 17.800 A @ 115.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 70.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 143T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 8.9 a
Insulation Class B
Inverter Code Not Inverter
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 4 @ 16 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3520L
Mounting Arrangement F1
Number of Poles 2
Output 1.500 hp
Output @ Frequency 1.500 HP @ 60 HZ
Overall Length 11.13 IN
Phase 1
Power Factor 78
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 230.0 V @ 60 HZ, 115.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
