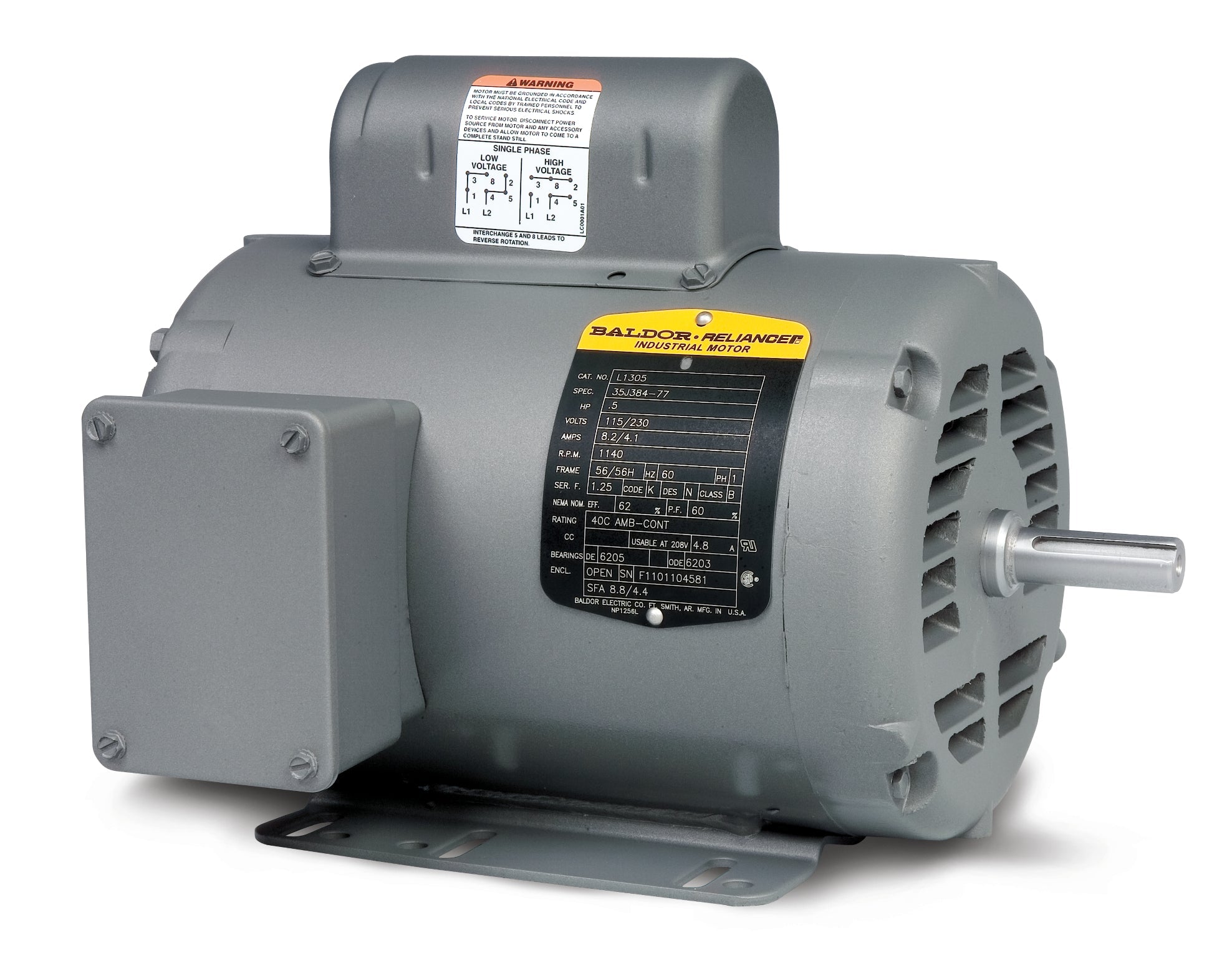

Baldor L1309-50 - 1/KW .75, 2850RPM, 1 Phase, 50HZ, 56, 3432LC, Open 50HZ Single Phase Single Phase

Save $193.00
BaldorSKU: L1309-50

Price:
Sale price$579.00 Regular price$772.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

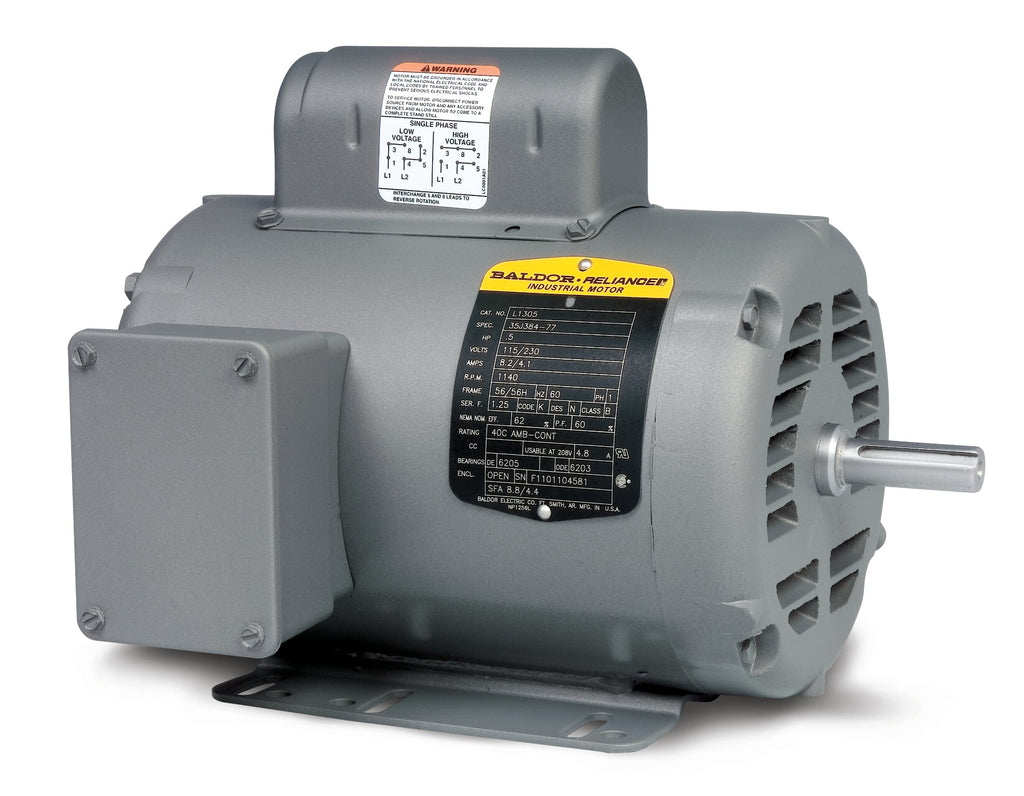

Baldor-Reliance Single Phase Open Motor - Model L1309-50

Discover the efficiency and reliability of the Baldor L1309-50 motor, designed for optimal performance in various applications. This single-phase open motor operates at 1 KW (0.75 HP) with a speed of 2850 RPM and is specifically engineered for 50HZ power systems. With a frame size of 56 and a robust design (3432LC), this motor is perfect for those seeking a dependable solution for their pumping needs.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, feel free to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect match.

Upgrade your pumping system with the Baldor L1309-50 motor and experience the quality and performance that Baldor-Reliance is known for.

UPC 781568119860
Supplier Part Number L1309-50
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals UKCA, WEEE, CURUS, CE
Ambient Temperature 40 °C
Approximate Weight (lbs) 34.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number L1309-50
Current @ Voltage 4.500 A @ 220.0 V, 9.000 A @ 110.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 77.4 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 50.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 4.5 a
Insulation Class B
Inverter Code Not Inverter
KVA Code H
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 4 @ 16 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3432LC
Mounting Arrangement F1
Number of Poles 2
Output 0.750 kW
Output @ Frequency .750 KW @ 50 HZ
Overall Length 11.50 IN
Phase 1
Power Factor 96
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 2850 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,000 rpm
Synchronous Speed @ Frequency 3000 RPM @ 50 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 220 V, 110 V
Voltage @ Frequency 110.0 V @ 50 HZ, 220.0 V @ 50 HZ
Winding Thermal 1 None
Winding Thermal 2 None
