Baldor L1307-50 - .75/.56KW, 1450RPM, 1 Phase, 50HZ, 56, 3524LC, Ope 50HZ Single Phase Single Phase

Save $234.25
BaldorSKU: L1307-50

Price:
Sale price$702.75 Regular price$937.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

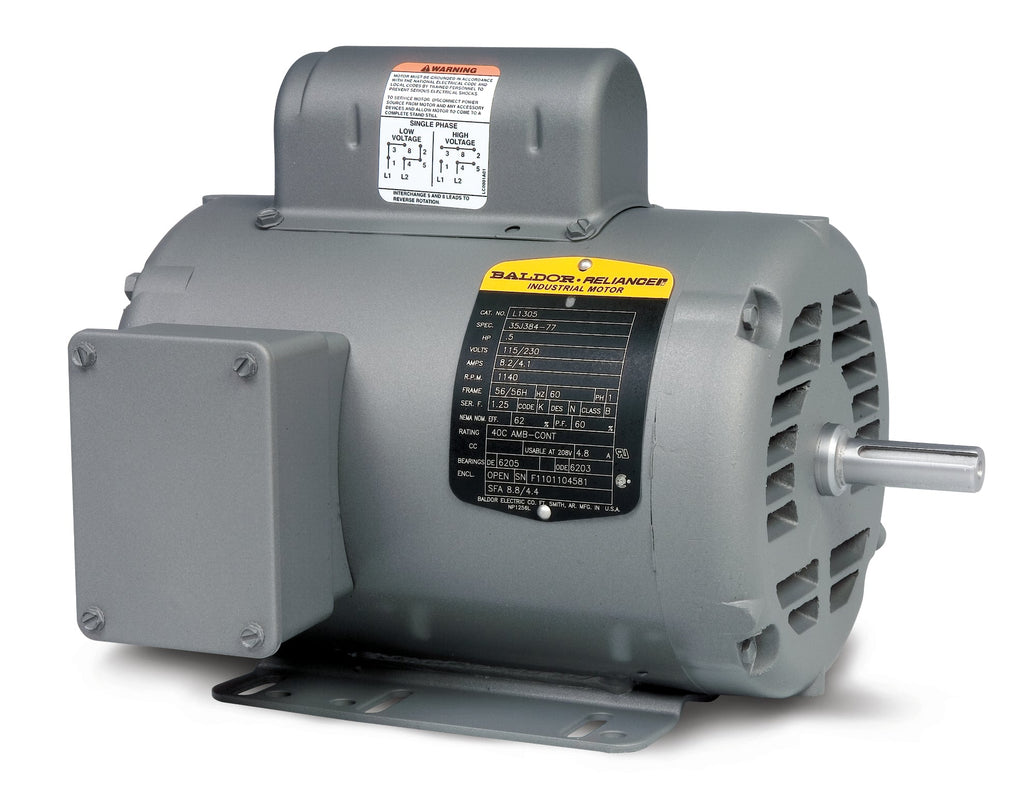

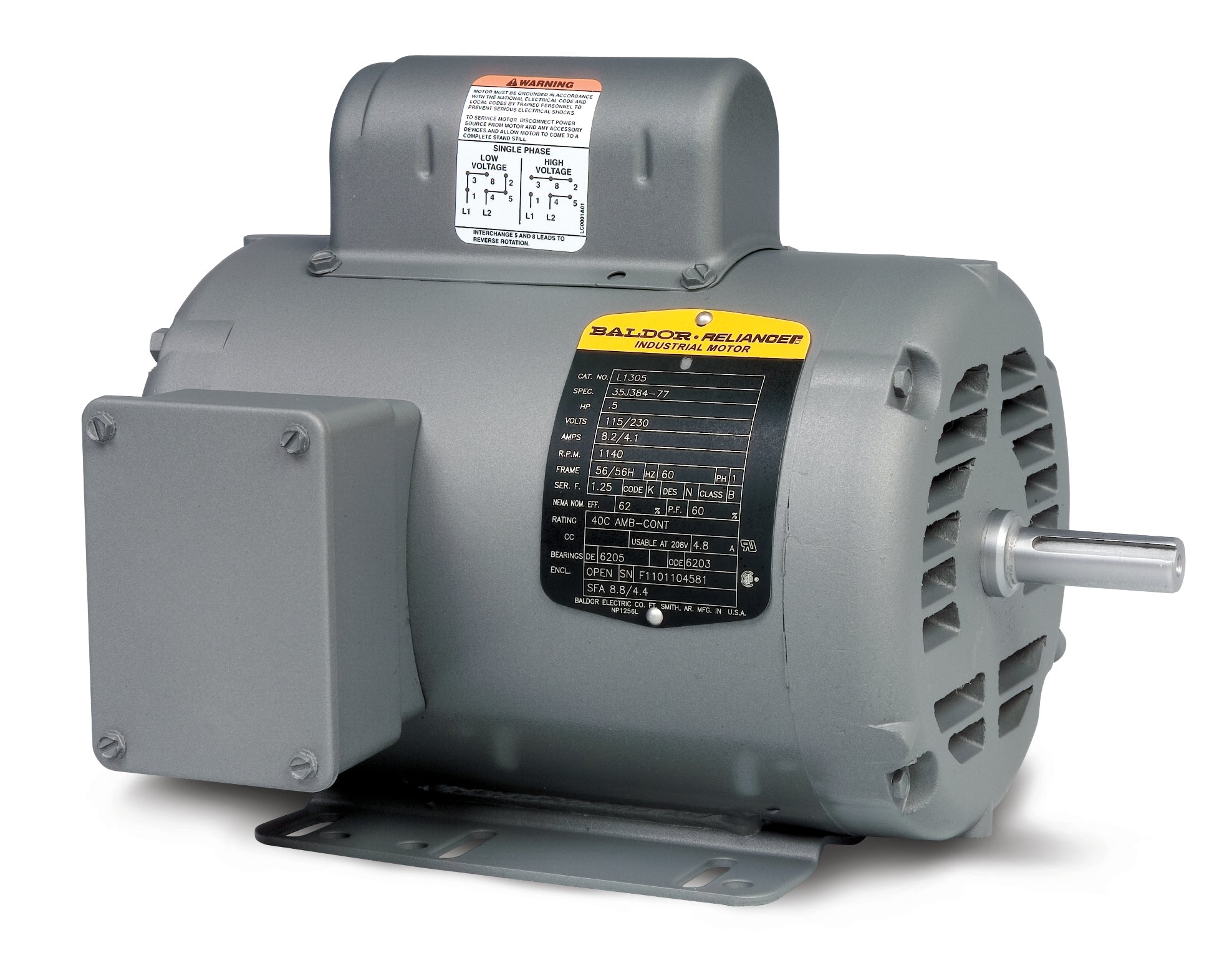

Baldor-Reliance Single Phase Open Motor - Model L1307-50

Discover the reliability and performance of the Baldor L1307-50 motor, designed for efficient operation in various applications. This single-phase open motor features a power output of .75/.56KW and operates at a speed of 1450 RPM. With a frequency of 50HZ, this motor is ideal for environments requiring consistent and dependable performance.

Specifications:

  • Power: .75/.56KW
  • Speed: 1450 RPM
  • Phase: 1PH
  • Frequency: 50HZ
  • Frame Size: 56
  • Product Code: L1307-50

This Baldor-Reliance motor is categorized under AC Motors, specifically designed for Pump Motors. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect match.

UPC 781568119853
Supplier Part Number L1307-50
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals C UR US, CE, CURUS, UKCA, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 38.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number L1307-50
Current @ Voltage 7.000 A @ 110.0 V, 3.500 A @ 220.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 77.1 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 50.00 Hz
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 3.5 a
Insulation Class F
Inverter Code Not Inverter
KVA Code H
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Quantity/Wire Size 4 @ 16 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3524LC
Mounting Arrangement F1
Number of Poles 4
Output 0.550 kW
Output @ Frequency .550 KW @ 50 HZ
Overall Length 12.07 IN
Phase 1
Power Factor 92
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,500 rpm
Synchronous Speed @ Frequency 1500 RPM @ 50 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 220 V, 110 V
Voltage @ Frequency 220.0 V @ 50 HZ, 110.0 V @ 50 HZ
Winding Thermal 1 None
Winding Thermal 2 None
