Baldor L1306-50 - .75/KW .56, 2900RPM, 1 Phase, 50HZ, 56, 3428LC, Op 50HZ Single Phase Single Phase

Save $183.50
BaldorSKU: L1306-50

Price:
Sale price$550.50 Regular price$734.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

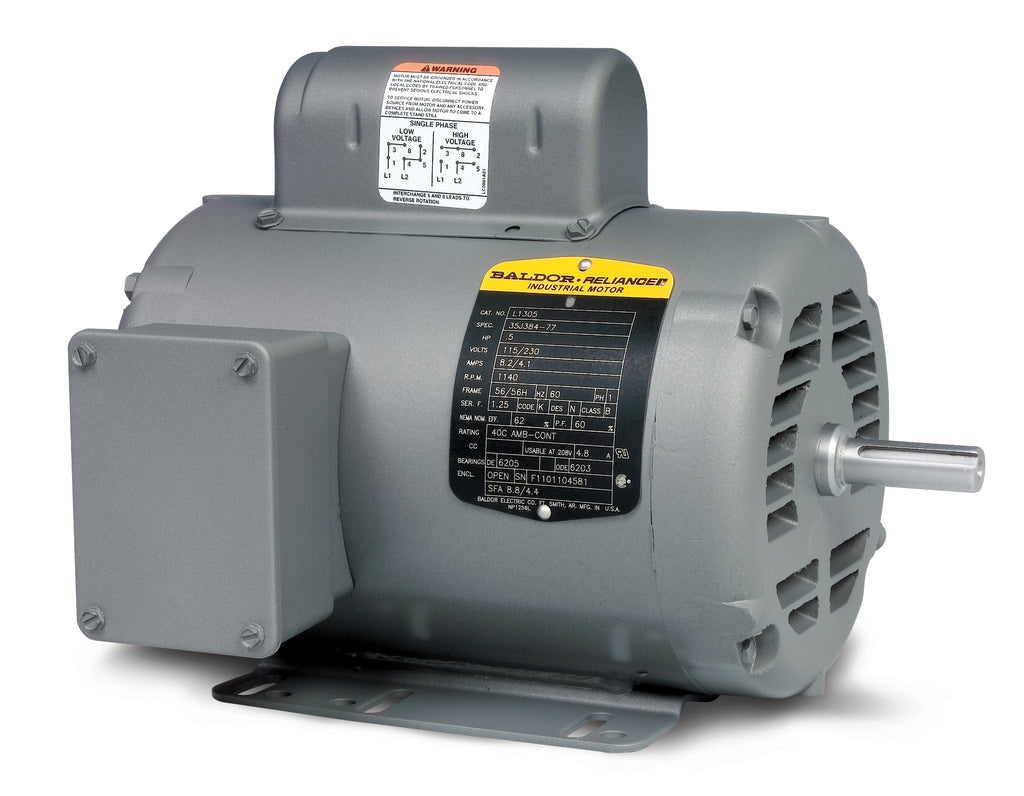

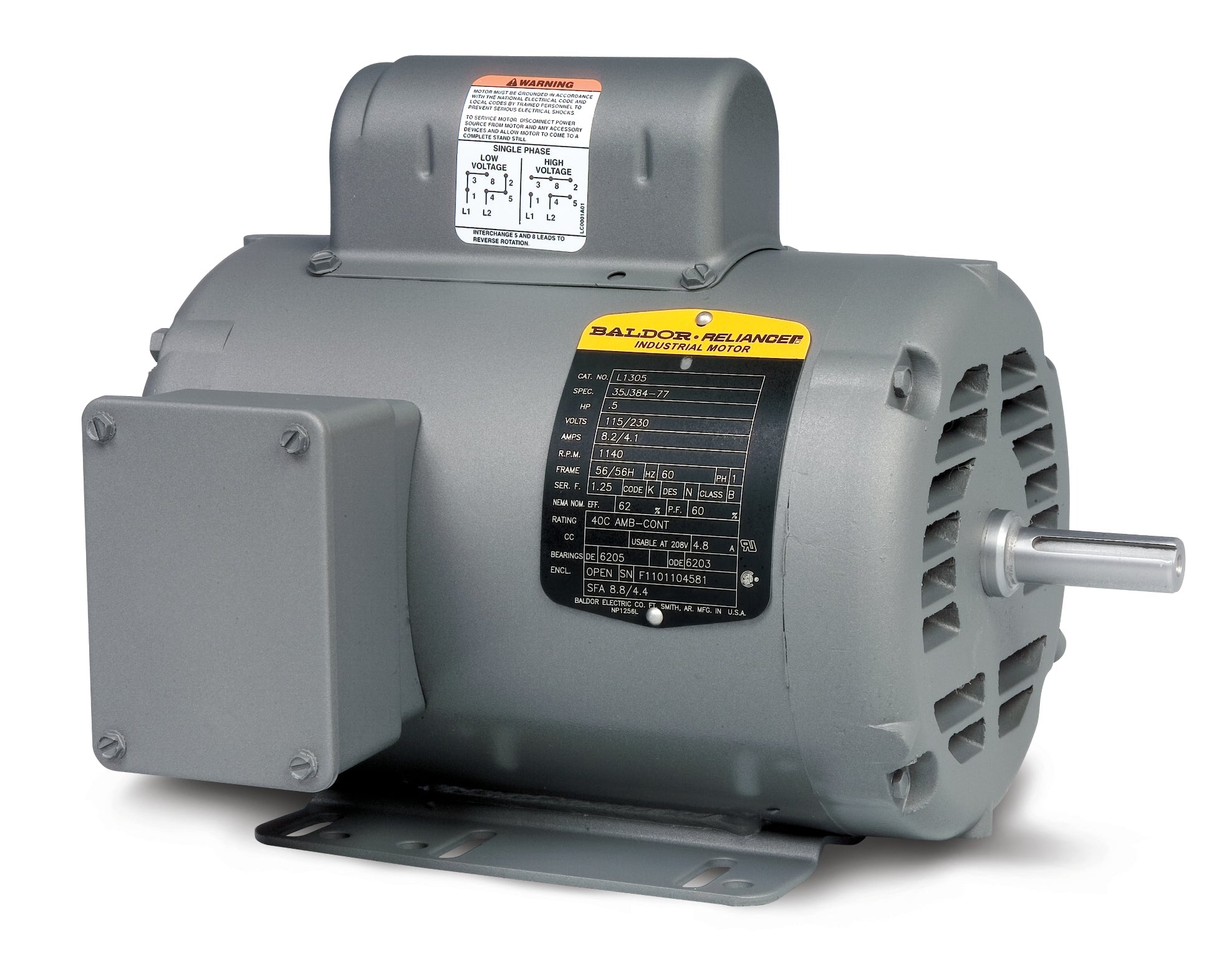

Baldor-Reliance Single Phase Open Motor - Model L1306-50

Discover the efficiency and reliability of the Baldor L1306-50 motor, designed for optimal performance in various applications. This single-phase open motor operates at .75 KW with a speed of 2900 RPM, making it an ideal choice for your pumping needs. With a frequency of 50HZ and a frame size of 56, this motor is built to deliver consistent power and durability.

As a trusted vendor, Baldor provides high-quality motors that meet the demands of both residential and commercial applications. The L1306-50 is categorized under AC Motors, specifically within the Baldor-Reliance Motors & Drives range, ensuring you receive a product that stands the test of time.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor L1306-50 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568119846
Supplier Part Number L1306-50
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals UKCA, WEEE, CURUS, CE
Ambient Temperature 40 °C
Approximate Weight (lbs) 28.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number L1306-50
Current @ Voltage 3.400 A @ 220.0 V, 6.800 A @ 110.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 75.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 50.00 Hz
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 3.4 a
Insulation Class B
Inverter Code Not Inverter
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3428LC
Mounting Arrangement F1
Number of Poles 2
Output 0.550 kW
Output @ Frequency .550 KW @ 50 HZ
Overall Length 11.00 IN
Phase 1
Power Factor 93
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 2900 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,000 rpm
Synchronous Speed @ Frequency 3000 RPM @ 50 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 220 V, 110 V
Voltage @ Frequency 110.0 V @ 50 HZ, 220.0 V @ 50 HZ
Winding Thermal 1 None
Winding Thermal 2 None
