Baldor KENM3454 - .25 HP, 1785RPM, 3 Phase, 60HZ, 56C, 3512M, Gp, N 60HZ Three Phase Three Phase 25 HP 3512 M Cable 56°C

Save $211.25
BaldorSKU: KENM3454

Price:
Sale price$633.75 Regular price$845.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

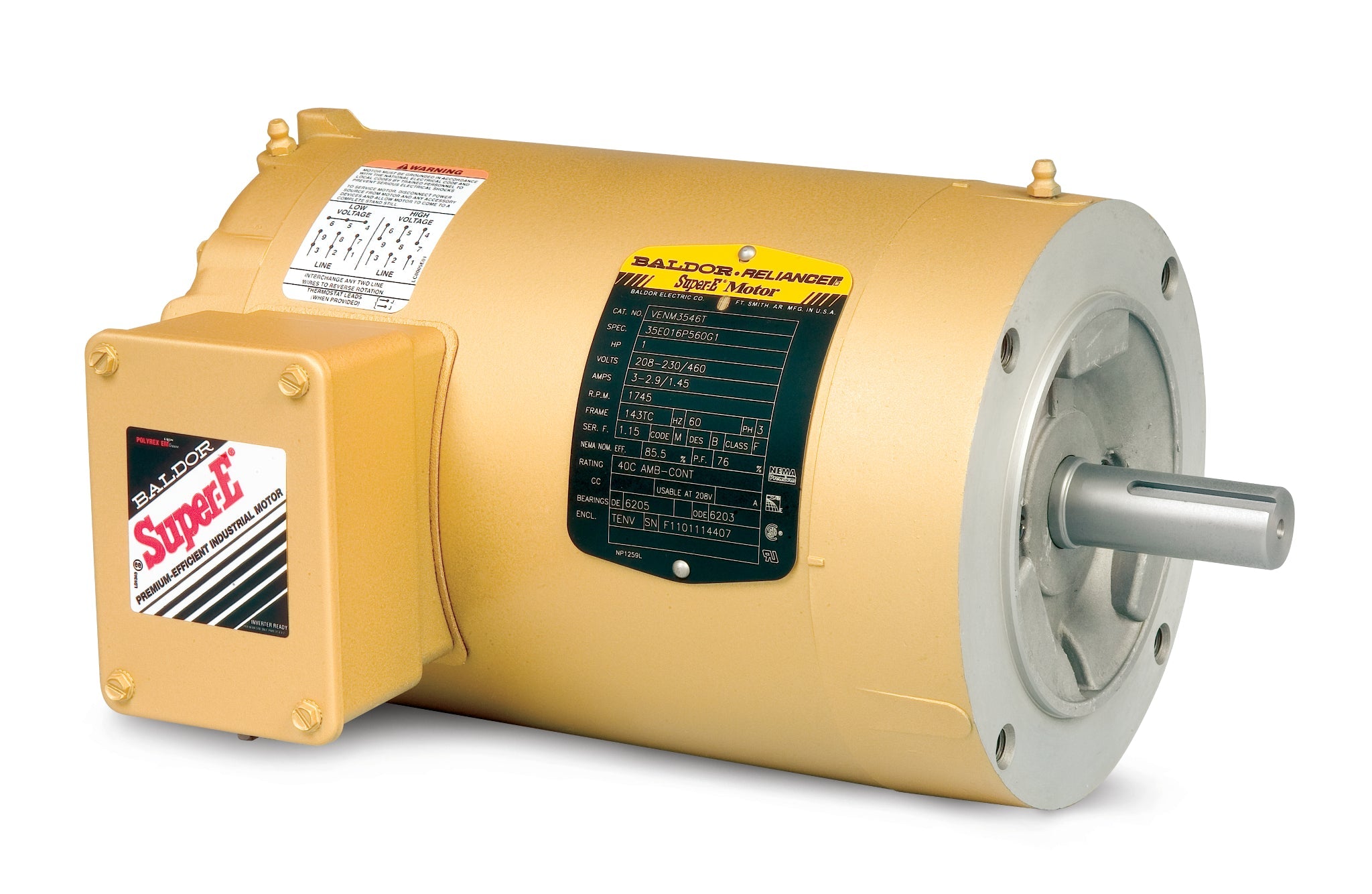

Baldor-Reliance Three Phase Enclosed Motor - Model KENM3454

Discover the reliability and performance of the Baldor KENM3454 motor, designed for a variety of industrial applications. This .25 HP motor operates at 1785 RPM and is engineered for three-phase power, making it an ideal choice for efficient operation in demanding environments.

Specifications:

  • Power: .25 HP
  • Speed: 1785 RPM
  • Phase: 3 Phase
  • Frequency: 60 HZ
  • Frame: 56C
  • Model: 3512M
  • Type: General Purpose (GP)
  • Temperature Rating: 56°C

This motor is part of the Baldor-Reliance line, known for its durability and efficiency. Whether you are replacing an existing motor or upgrading your system, the KENM3454 is a dependable choice.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568503157
Supplier Part Number KENM3454
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 26.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number KENM3454
Current @ Voltage .800 A @ 460.0 V, 1.600 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 70.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure GP
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 0.8 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code U
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3512M
Mounting Arrangement F1
Number of Poles 4
Output 0.250 hp
Output @ Frequency .250 HP @ 60 HZ
Overall Length 11.06 IN
Phase 3
Power Factor 42
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1785 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
