Baldor KBL3409 - .5 HP, 1725RPM, 1 Phase, 60HZ, 56C, Brake, 3421L 60HZ Single Phase 5 HP 56°C

Save $470.00
BaldorSKU: KBL3409

Price:
Sale price$1,410.00 Regular price$1,880.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

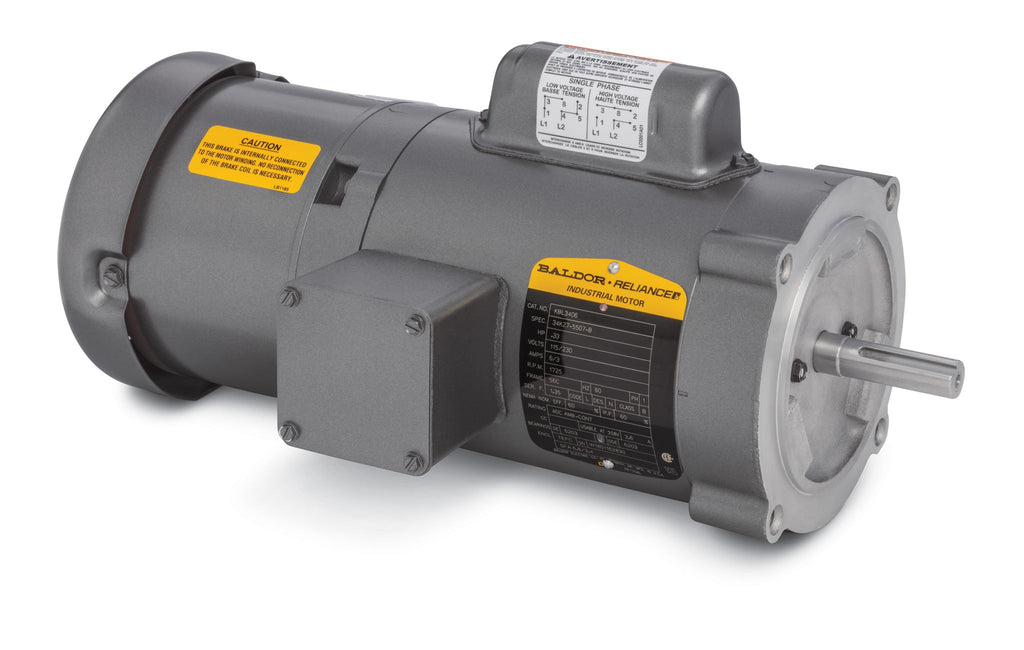

Baldor KBL3409 Short-Series Brake Motor

Upgrade your pumping system with the Baldor KBL3409, a reliable and efficient .5 HP brake motor designed for optimal performance. Operating at 1725 RPM and powered by a single-phase 60Hz supply, this motor is perfect for various applications requiring precise control and stopping capabilities.

Key Features:

  • Power: .5 HP
  • Speed: 1725 RPM
  • Phase: 1 Phase
  • Frequency: 60Hz
  • Frame Size: 56C
  • Type: Short-Series Brake Motor
  • Product Code: KBL3409

This Baldor-Reliance motor is engineered for durability and efficiency, making it an ideal choice for both industrial and commercial applications. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right components for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor KBL3409. Our team is here to help you with any inquiries or challenges you may face in selecting the perfect motor.

UPC 781568115336
Supplier Part Number KBL3409
Category AC Motors
Subcategory Short-Series Brake Motors
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 32.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 3.0 lb-ft
Catalog Number KBL3409
Current @ Voltage 3.700 A @ 230.0 V, 4.300 A @ 208.0 V, 7.400 A @ 115.0 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 68.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Brake Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 3.7 a
Insulation Class B
Inverter Code Not Inverter
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3421L
Mounting Arrangement F1
Number of Poles 4
Output 0.500 hp
Output @ Frequency .500 HP @ 60 HZ
Overall Length 16.07 IN
Phase 1
Power Factor 66
Product Type BRAKE MOTOR
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 115 V, 230 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
