Baldor JPL1512T - 10 HP, 1725RPM, 1 Phase, 60HZ, 215JP, 3744LC, Odtf 60HZ Single Phase 10 HP

Save $1,158.75
BaldorSKU: JPL1512T

Price:
Sale price$3,476.25 Regular price$4,635.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

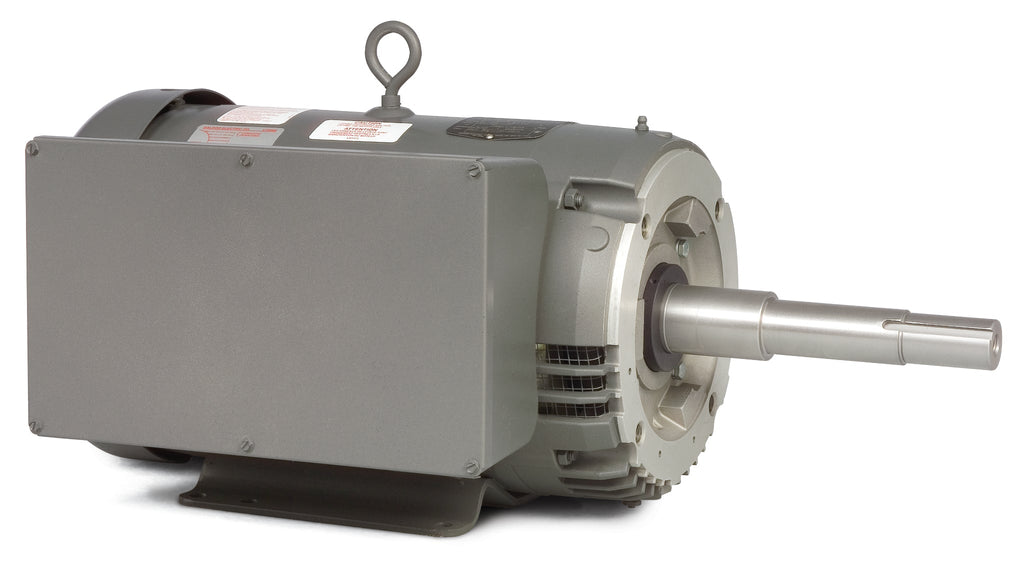

Baldor JPL1512T - 10 HP Close Coupled Motor

Discover the power and reliability of the Baldor JPL1512T, a high-performance 10 HP, 1725 RPM single-phase motor designed for various industrial applications. This motor operates at 60Hz and features a robust 215JP frame, ensuring durability and efficiency in demanding environments.

As part of the Baldor-Reliance JM, JP, WCP Close Coupled Motors series, the JPL1512T is engineered for seamless integration with pumps and other machinery, making it an ideal choice for those seeking dependable performance.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the JPL1512T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

Product Specifications:

  • Power: 10 HP
  • Speed: 1725 RPM
  • Phase: 1
  • Frequency: 60Hz
  • Frame: 215JP
  • Product Code: JPL1512T

Choose the Baldor JPL1512T for unmatched performance and reliability in your operations.

UPC 781568204757
Supplier Part Number JPL1512T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 142.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number JPL1512T
Current @ Voltage 41.000 A @ 230.0 V, 45.000 A @ 208.0 V
Design Code L
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 84.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 215JP
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Drip Cover Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 41.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code F
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 8 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3744LC
Mounting Arrangement F1
Number of Poles 4
Output 10.000 hp
Output @ Frequency 10.000 HP @ 60 HZ
Overall Length 20.95 IN
Phase 1
Power Factor 94
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
Service Factor 1.15
Shaft Diameter 1.250 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V
Voltage @ Frequency 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
