Baldor JPL1510T - 7.5 HP, 1750RPM, 1 Phase, 60HZ, 3740LC, N 60HZ Single Phase 7.5 HP

Save $936.25
BaldorSKU: JPL1510T

Price:
Sale price$2,808.75 Regular price$3,745.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

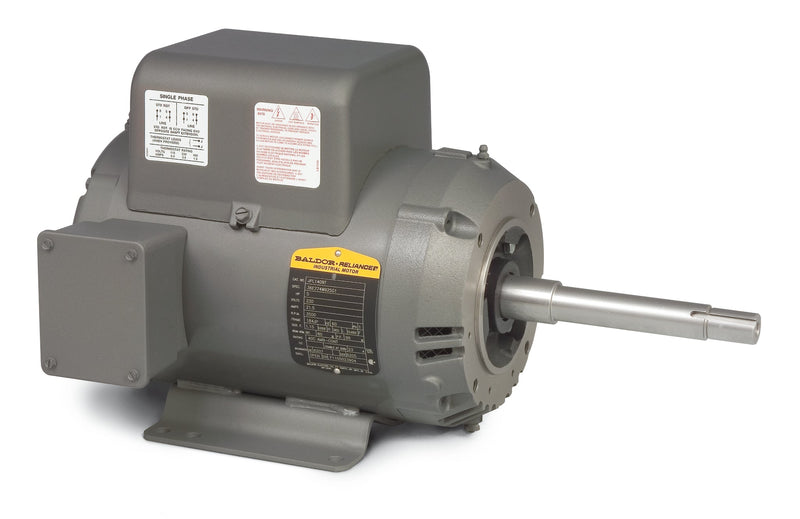

Baldor JPL1510T - 7.5 HP Close Coupled Motor

Upgrade your pumping system with the Baldor JPL1510T, a high-performance 7.5 HP motor designed for reliability and efficiency. Operating at 1750 RPM and compatible with single-phase 60Hz power, this motor is ideal for a variety of applications requiring robust performance.

Key Features:

  • Power: 7.5 HP
  • Speed: 1750 RPM
  • Phase: Single Phase
  • Frequency: 60Hz
  • Type: JM, JP, WCP Close Coupled Motors
  • Product Code: JPL1510T

As a trusted vendor, Baldor ensures that this motor meets high standards of quality and durability, making it a perfect choice for your pumping needs. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your application.

If you have questions or need assistance in selecting the right pump, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor JPL1510T to ensure compatibility. Our team is here to help you find the perfect fit for your needs.

UPC 781568114742
Supplier Part Number JPL1510T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 143.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number JPL1510T
Current @ Voltage 33.000 A @ 230.0 V, 35.500 A @ 208.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 85.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 215JP
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 33.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code E
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 10 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3740LC
Mounting Arrangement F1
Number of Poles 4
Output 7.500 hp
Output @ Frequency 7.500 HP @ 60 HZ
Overall Length 23.19 IN
Phase 1
Power Factor 87
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
Service Factor 1.15
Shaft Diameter 1.250 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1750 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V
Voltage @ Frequency 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
