Baldor JPL1409T - 5 HP, 3500RPM, 1 Phase, 60HZ, 184, Jp, 3634LC, Open 60HZ Single Phase 5 HP

Save $617.00
BaldorSKU: JPL1409T

Price:
Sale price$1,851.00 Regular price$2,468.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

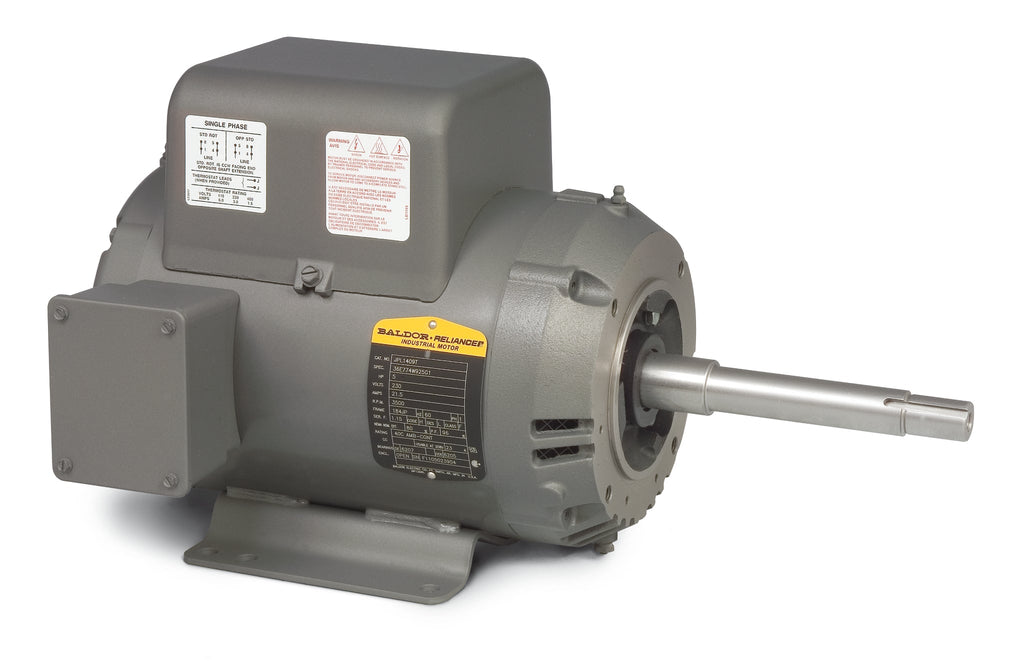

Baldor JPL1409T - 5 HP Close Coupled Motor

The Baldor JPL1409T is a high-performance 5 HP, 3500 RPM, single-phase motor designed for reliable operation in various applications. This motor operates at 60Hz and features a robust 184 frame size, making it an ideal choice for close-coupled pump systems. With its open design, the JPL1409T ensures efficient cooling and optimal performance, making it a preferred option for both industrial and commercial use.

Key Features:

  • Power: 5 HP
  • Speed: 3500 RPM
  • Phase: Single Phase
  • Frequency: 60Hz
  • Frame Size: 184
  • Type: JM, JP, WCP Close Coupled Motor
  • Product Code: JPL1409T

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor JPL1409T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568114711
Supplier Part Number JPL1409T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 88.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number JPL1409T
Current @ Voltage 21.500 A @ 230.0 V, 23.000 A @ 208.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 80.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 184JP
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 21.5 a
Insulation Class F
Inverter Code Not Inverter
KVA Code H
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 12 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3634LC
Mounting Arrangement F1
Number of Poles 2
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 19.56 IN
Phase 1
Power Factor 96
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3500 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V
Voltage @ Frequency 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
