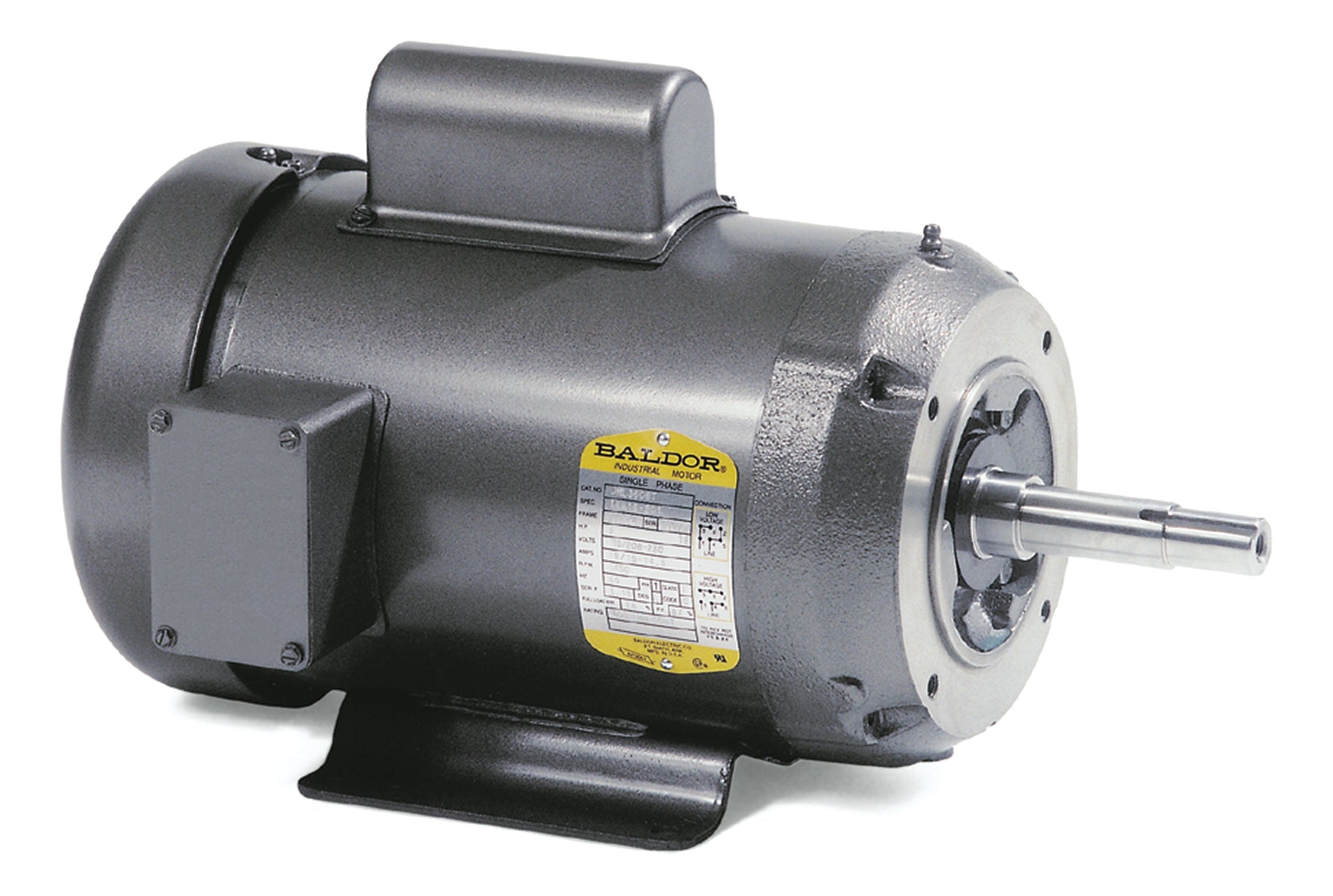

Baldor JML1512T - 10 HP, 1725RPM, 1 Phase, 60HZ, 215JM, 3744LC, Odtf 60HZ Single Phase 10 HP

Save $1,158.75
BaldorSKU: JML1512T

Price:
Sale price$3,476.25 Regular price$4,635.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor-Reliance JM, JP, WCP Close Coupled Motors

Introducing the Baldor JML1512T, a powerful and efficient 10 HP close coupled motor designed for a variety of industrial applications. Operating at 1725 RPM and powered by a single-phase 60Hz supply, this motor is engineered for reliability and performance. With a frame size of 215JM and a robust design, the JML1512T is perfect for those seeking a dependable solution for their pumping needs.

This motor is part of the esteemed Baldor-Reliance series, known for its durability and efficiency in demanding environments. Whether you are replacing an existing motor or upgrading your system, the JML1512T is an excellent choice.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you are having trouble locating the right item, our team is here to help!

Product Specifications:

  • Power: 10 HP
  • Speed: 1725 RPM
  • Phase: 1
  • Frequency: 60Hz
  • Frame Size: 215JM
  • Product Code: JML1512T

Choose the Baldor JML1512T for a reliable and efficient motor solution that meets your industrial needs.

UPC 781568204740
Supplier Part Number JML1512T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 150.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number JML1512T
Current @ Voltage 41.000 A @ 230.0 V, 45.000 A @ 208.0 V
Design Code L
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 84.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 215JM
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Drip Cover Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 41.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code F
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Cap Box
Motor Lead Quantity/Wire Size 2 @ 8 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3744LC
Mounting Arrangement F1
Number of Poles 4
Output 10.000 hp
Output @ Frequency 10.000 HP @ 60 HZ
Overall Length 20.95 IN
Phase 1
Power Factor 94
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V
Voltage @ Frequency 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
