Baldor JM3457 - .33 HP, 3450RPM, 3 Phase, 60HZ, 56J, 3410M, TEFC, F1 60HZ Three Phase 33 HP 3410 M Cable

Save $144.50
BaldorSKU: JM3457

Price:
Sale price$433.50 Regular price$578.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

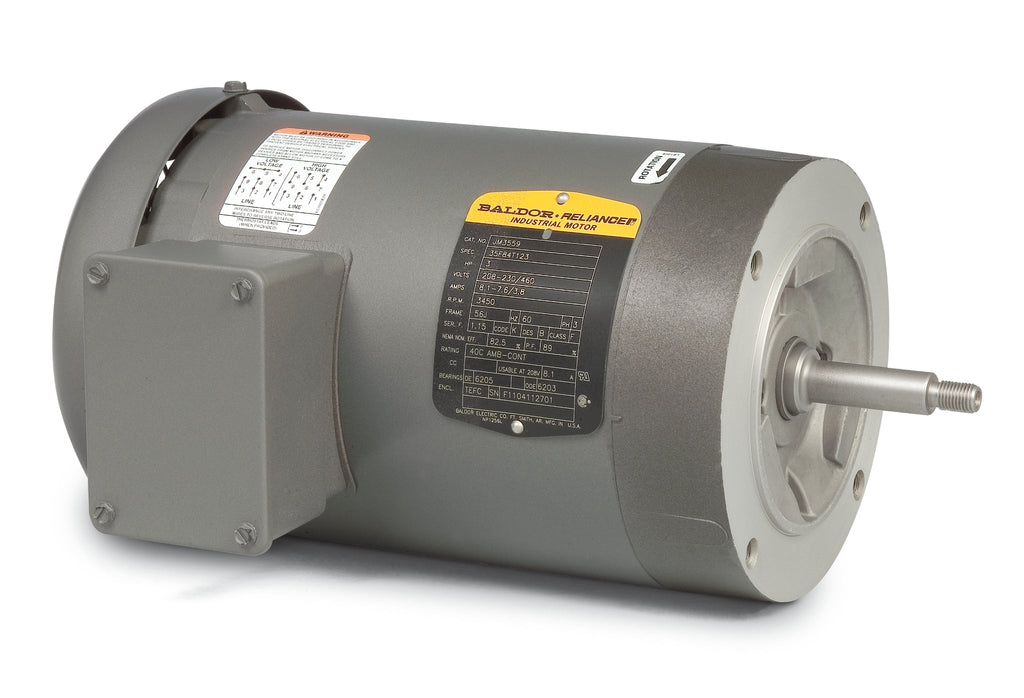

Baldor-Reliance 56J Jet Pump Motor - Model JM3457

Upgrade your pumping system with the Baldor-Reliance 56J Jet Pump Motor, featuring a powerful .33 HP output and a high-speed 3450 RPM operation. This robust motor is designed for 3-phase applications at 60HZ, ensuring efficient performance for various pumping needs.

Key specifications include:

  • Power: .33 HP
  • Speed: 3450 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ
  • Frame: 56J
  • Model: 3410M
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: JM3457

This motor is ideal for a variety of applications, providing reliable and efficient operation. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches this model. If you have any questions or need assistance in finding the right item, please don't hesitate to call us at (781) 281-8905.

UPC 781568217931
Supplier Part Number JM3457
Category AC Motors
Subcategory 56J Jet Pump Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 19.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number JM3457
Current @ Voltage .800 A @ 460.0 V, 1.600 A @ 230.0 V, 2.400 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 62.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56J
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 0.8 a
Insulation Class B
Inverter Code Not Inverter
KVA Code P
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3410M
Mounting Arrangement F1
Number of Poles 2
Output 0.330 hp
Output @ Frequency .330 HP @ 60 HZ
Overall Length 11.84 IN
Phase 3
Power Factor 61
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Ext Thread
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.75
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
