Baldor JL1323A - 3 HP, 3450RPM, 1 Phase, 60HZ, 56J, 3535LC, Open, F1 60HZ Single Phase 3 HP

Save $324.00
BaldorSKU: JL1323A

Price:
Sale price$972.00 Regular price$1,296.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

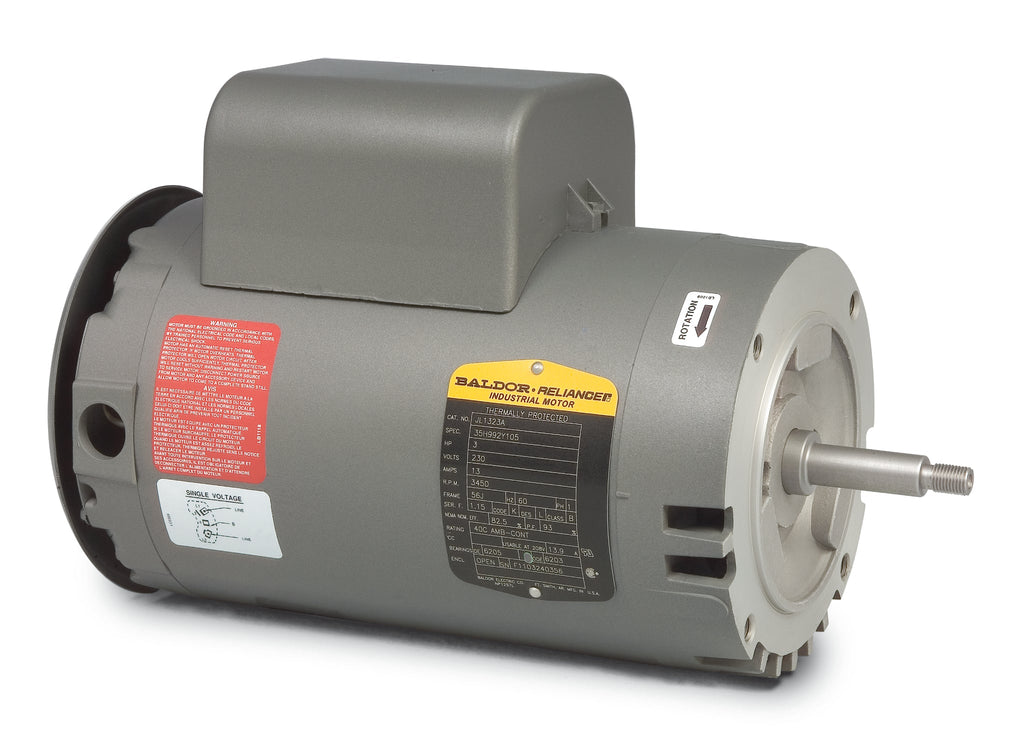

Baldor-Reliance 56J Jet Pump Motor - Model JL1323A

Upgrade your pumping system with the Baldor-Reliance 56J Jet Pump Motor, designed for high performance and reliability. This powerful motor features:

  • Power: 3 HP
  • Speed: 3450 RPM
  • Phase: 1 Phase
  • Frequency: 60 Hz
  • Frame Size: 56J
  • Type: Open, F1
  • Product Code: JL1323A

This motor is ideal for various applications, providing efficient operation and durability. Whether you are replacing an old motor or upgrading your system, the Baldor JL1323A is a reliable choice.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. Don’t hesitate to reach out if you need help finding the right item!

UPC 781568112847
Supplier Part Number JL1323A
Category AC Motors
Subcategory 56J Jet Pump Motors
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 52.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number JL1323A
Current @ Voltage 13.000 A @ 230.0 V
Design Code L
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 56J
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Terminal Panel
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 13.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Terminal Panel
Motor Lead Quantity/Wire Size 2 @ 14 AWG, A PH
Motor Lead Termination None
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3535LC
Mounting Arrangement F1
Number of Poles 2
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 14.11 IN
Phase 1
Power Factor 93
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Ext Thread
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Fixed Opposite Standard
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V
Voltage @ Frequency 230.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None
