Baldor JL1313A - 1.5 HP, 3450RPM, 1 Phase, 60HZ, 56J, 3432LC, Open 60HZ Single Phase 1.5 HP

Save $256.00
BaldorSKU: JL1313A

Price:
Sale price$768.00 Regular price$1,024.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

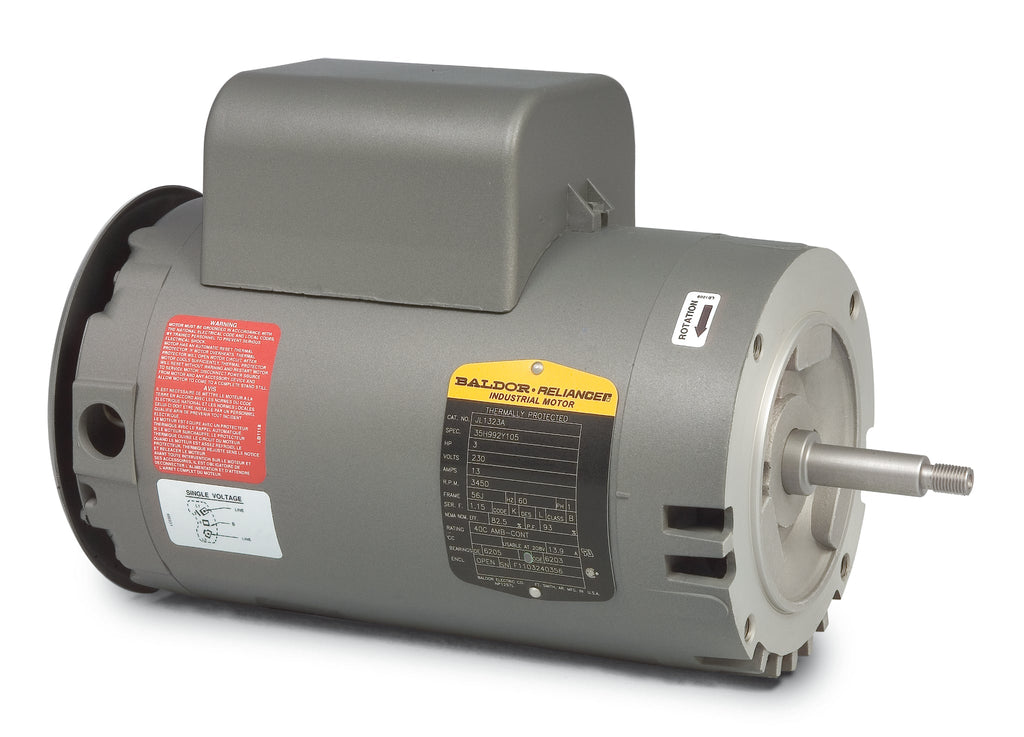

Baldor-Reliance 56J Jet Pump Motor - Model JL1313A

Upgrade your pumping system with the Baldor-Reliance 56J Jet Pump Motor, featuring a powerful 1.5 HP output and a high-speed performance of 3450 RPM. Designed for single-phase operation at 60Hz, this motor is ideal for a variety of applications requiring reliable and efficient performance.

Key Specifications:

  • Power: 1.5 HP
  • Speed: 3450 RPM
  • Phase: 1
  • Frequency: 60Hz
  • Type: 56J Jet Pump Motor
  • Product Code: JL1313A

This open-type motor is built to withstand demanding conditions, making it a perfect choice for both residential and commercial use. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you have any questions or need assistance in finding the right item, please don't hesitate to call us at (781) 281-8905.

UPC 781568112823
Supplier Part Number JL1313A
Category AC Motors
Subcategory 56J Jet Pump Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 36.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number JL1313A
Current @ Voltage 13.000 A @ 115.0 V, 6.500 A @ 230.0 V
Design Code -
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 78.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 56J
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Drip Cover Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 6.5 a
Insulation Class B
Inverter Code Not Inverter
KVA Code H
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Terminal Panel Or Lead Hole
Motor Lead Quantity/Wire Size 4 @ 16 AWG, A&J
Motor Lead Termination Flying Leads With QC
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3432LC
Mounting Arrangement F1
Number of Poles 2
Output 1.500 hp
Output @ Frequency 1.500 HP @ 60 HZ
Overall Length 13.89 IN
Phase 1
Power Factor 95
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Ext Thread
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.3
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Fixed Opposite Standard
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 115 V, 230 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None
