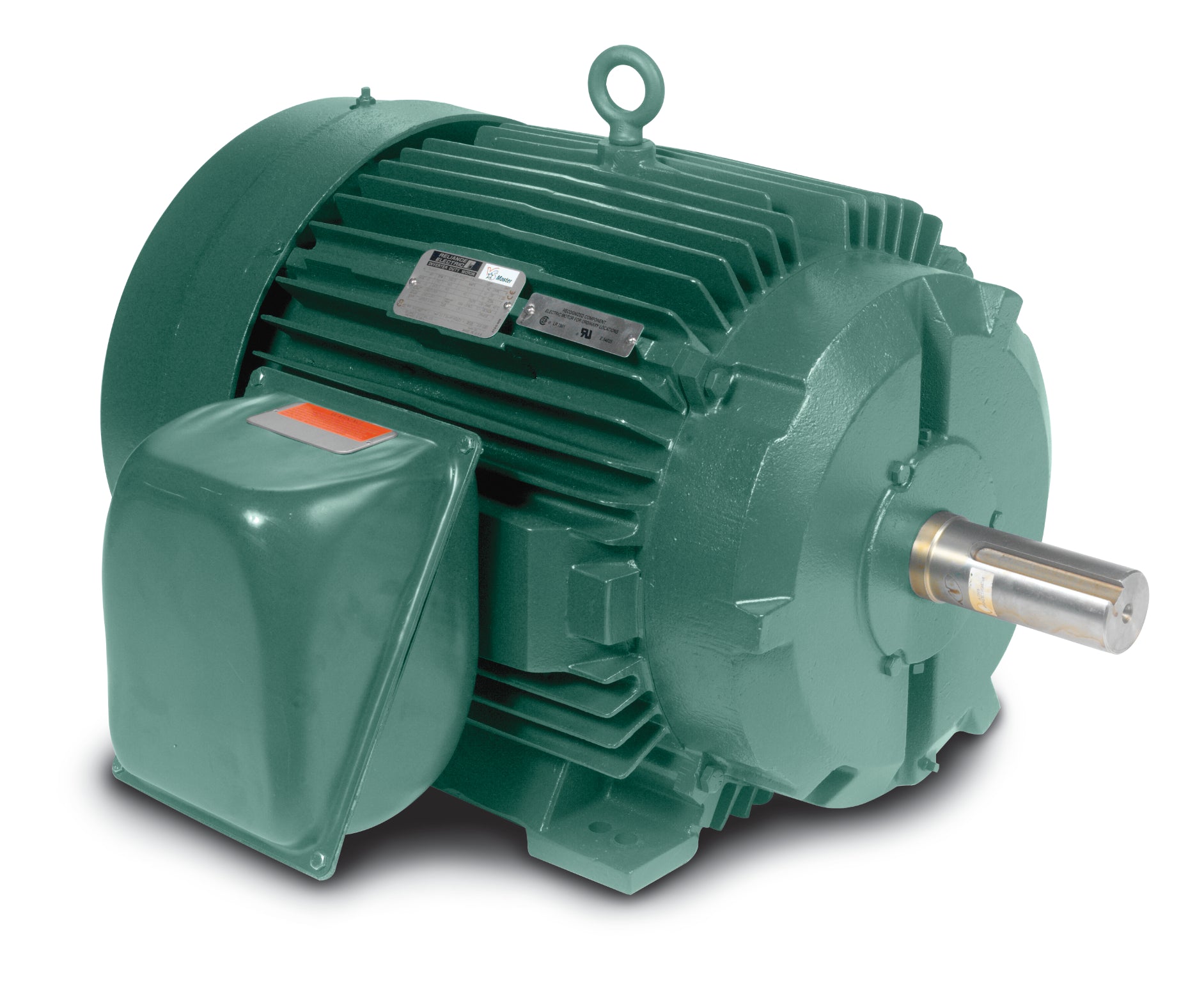

Image shown may not be actual product
Baldor IDVSM4407T-4 - 200HP, 1790-2685RPM, 3PH, 60-90HZ, 447T, A441 - AC VS Master Motors
Roll over image to zoom in Click on image to zoom
Baldor IDVSM4407T-4 - 200HP, 1790-2685RPM, 3PH, 60-90HZ, 447T, A441 - AC VS Master Motors
Baldor Electric Motors

Baldor IDVSM4407T-4 - 200 HP, 1790-2685RPM, 3 Phase, 60-90HZ, 447T, A441 90HZ Three Phase 200 HP

BaldorSKU: IDVSM4407T-4
Price:
$32,473.50

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

Baldor Replacement Part — Component

The Baldor IDVSM4407T-4 for Baldor pump systems.

Part Specifications
Part Number IDVSM4407T-4
Brand Baldor
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Need help confirming compatibility or finding the right part? Contact PumpStop — chat or call (781) 281-8905.
UPC
781568465462
Supplier Part Number
IDVSM4407T-4
Category
AC Motors
Subcategory
AC VS Master Motors
Agency Approvals
CURUS
Ambient Temperature
40 °C
Approximate Weight (lbs)
2189.0
Auxillary Box
No Auxillary Box
Base Indicator
Rigid
Bearing Grease Type
Polyrex EM (-20F +300F)
Catalog Number
IDVSM4407T-4
Constant Torque Speed Range
1000:1
Current @ Voltage
218.000 A @ 460.0 V, 226.000 A @ 460.0 V
Design Code
A
Drip Cover
No Drip Cover
Duty Rating
CONT
Efficiency @ 100% Load
95.4 %
Enclosure
TEFC
Feedback Device
NO FEEDBACK
Frame
447T
Frame Material
Cast Iron
Frequency
60.00 Hz, 90.00 Hz
Haz Area Class and Group
NONE
Haz Area Division
Not Applicable
Heater Indicator
No Heater
High Voltage Full Load Amps
218.0 a
Insulation Class
F
Inverter Code
Inverter Duty
IP Rating
NONE
KVA Code
L
Lifting Lugs
Standard Lifting Lugs
Max Speed
3600 rpm
Motor Lead Quantity/Wire Size
6 @ 1/0 AWG
Motor Letter Type
Three Phase
Motor Standards
NEMA
Motor Type
A44106M
Mounting Arrangement
F1
Number of Poles
4
Output
200.000 hp @ 60 Hz, 200.000 hp @ 90 Hz
Output @ Frequency
200.000 HP @ 90 HZ, 200.000 HP @ 60 HZ
Overall Length
48.24 IN
Phase
3
Power Factor
87
Pulley End Bearing Type
Ball
Pulley Face Code
Standard
Service Factor
1
Shaft Diameter
3.375 IN
Shaft Ground Indicator
No Shaft Grounding
Shaft Rotation
Reversible
Shaft Slinger Indicator
No Slinger
Speed
1790 rpm, 2685 rpm
Speed Code
Single Speed
Starting Method
Direct on line
Synchronous Speed
3,000 rpm
Synchronous Speed @ Frequency
3000 RPM @ 90 HZ
Thermal Device - Bearing
None
Thermal Device - Winding
Normally Closed Thermostat
Voltage
460 V @ 60 Hz, 460 V @ 90 Hz
Voltage @ Frequency
460.0 V @ 60 HZ, 460.0 V @ 90 HZ
