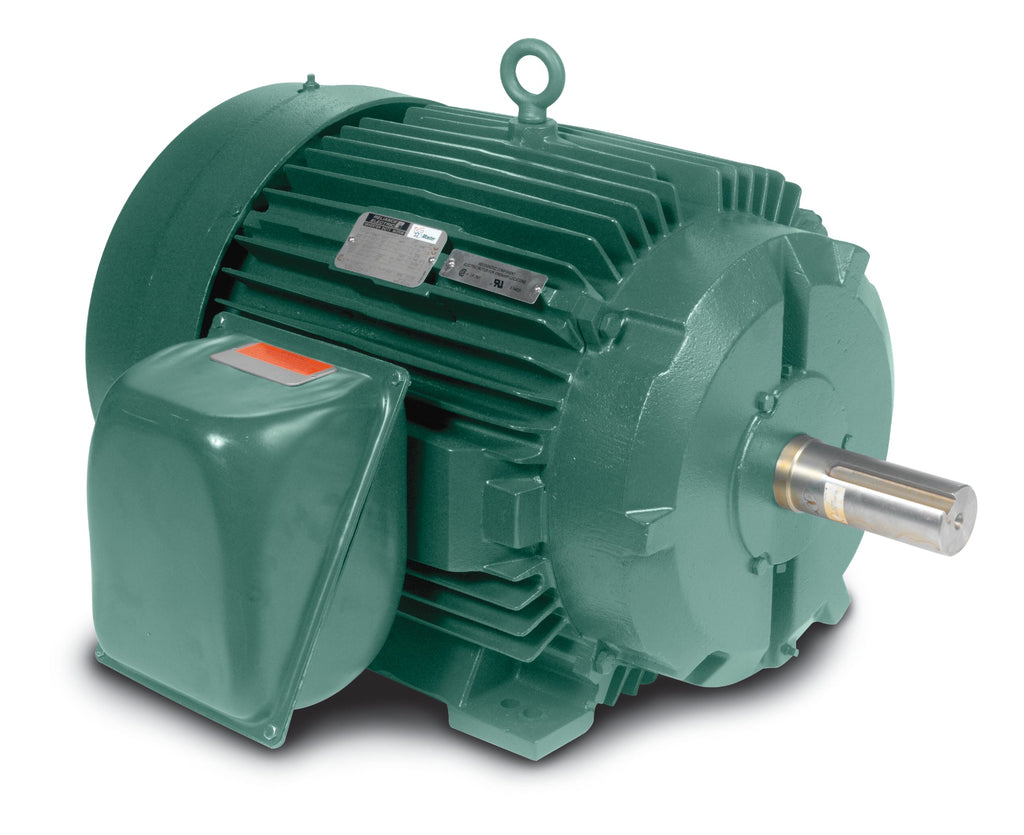

Image shown may not be actual product
Roll over image to zoom in
Click on image to zoom
Description
Baldor Replacement Part — Component
The Baldor IDVSM4316T for Baldor pump systems.
Part Specifications
| Part Number | IDVSM4316T |
| Brand | Baldor |
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
- UPC
- 781568465431
- Supplier Part Number
- IDVSM4316T
- Category
- AC Motors
- Subcategory
- AC VS Master Motors
- Product Family
- General Industrial
- Agency Approvals
- CURUS
- Ambient Temperature
- 40 °C
- Approximate Weight (lbs)
- 873.0
- Auxillary Box
- No Auxillary Box
- Base Indicator
- Rigid
- Bearing Grease Type
- Polyrex EM (-20F +300F)
- Catalog Number
- IDVSM4316T
- Constant Torque Speed Range
- 1000:1
- Current @ Voltage
- 172.000 A @ 230.0 V, 86.000 A @ 460.0 V
- Design Code
- A
- Drip Cover
- No Drip Cover
- Duty Rating
- CONT
- Efficiency @ 100% Load
- 95.4 %
- Enclosure
- TEFC
- Feedback Device
- NO FEEDBACK
- Frame
- 365T
- Frame Material
- Cast Iron
- Frequency
- 60.00 Hz
- Haz Area Class and Group
- NONE
- Haz Area Division
- Not Applicable
- Heater Indicator
- No Heater
- High Voltage Full Load Amps
- 86.0 a
- Insulation Class
- F
- Inverter Code
- Inverter Duty
- IP Rating
- NONE
- KVA Code
- H
- Lifting Lugs
- Standard Lifting Lugs
- Max Speed
- 3600 rpm
- Motor Lead Quantity/Wire Size
- 3 @ 4 AWG
- Motor Letter Type
- Three Phase
- Motor Standards
- NEMA
- Motor Type
- A36070M
- Mounting Arrangement
- F1
- Number of Poles
- 4
- Output
- 75.000 hp
- Output @ Frequency
- 75.000 HP @ 60 HZ
- Overall Length
- 33.48 IN
- Phase
- 3
- Power Factor
- 83
- Pulley End Bearing Type
- Ball
- Pulley Face Code
- Standard
- Service Factor
- 1
- Shaft Diameter
- 2.374 IN
- Shaft Ground Indicator
- No Shaft Grounding
- Shaft Rotation
- Reversible
- Shaft Slinger Indicator
- No Slinger
- Speed
- 1780 rpm
- Speed Code
- Single Speed
- Starting Method
- Direct on line
- Synchronous Speed
- 1,800 rpm
- Synchronous Speed @ Frequency
- 1800 RPM @ 60 HZ
- Thermal Device - Bearing
- None
- Thermal Device - Winding
- Normally Closed Thermostat
- Voltage
- 230 V, 460 V
- Voltage @ Frequency
- 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
