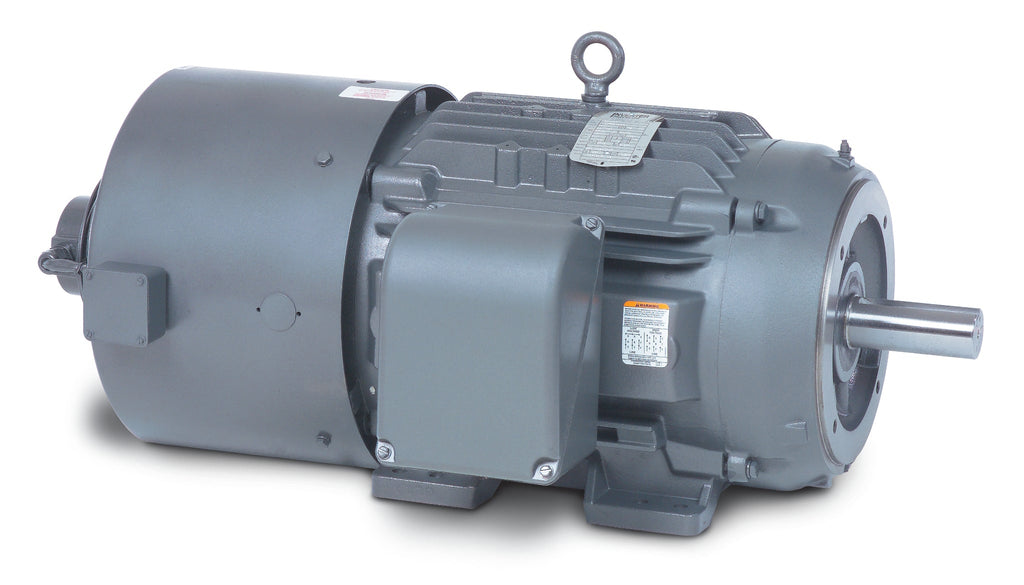

Image shown may not be actual product
Baldor IDM3661T - 3HP, 1755RPM, 3PH, 60HZ, 184TC, 0632M, TEBC, F1 - AC Inverter/Vector Duty Motors
Roll over image to zoom in Click on image to zoom
Baldor IDM3661T - 3HP, 1755RPM, 3PH, 60HZ, 184TC, 0632M, TEBC, F1 - AC Inverter/Vector Duty Motors
Baldor Electric Motors

Baldor IDM3661T - 3 HP, 1755RPM, 3 Phase, 60HZ, 184TC, 0632M, Tebc, F1 60HZ Three Phase 3 HP 0632 M Cable

BaldorSKU: IDM3661T
Price:
$2,282.25

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

Baldor Replacement Part — Cable
Cable

The Baldor IDM3661T is a replacement cable for Baldor pump systems. An electrical power cord for submersible pump motors, rated for continuous submerged operation.

Part Specifications
Part Number IDM3661T
Part Type Cable
Brand Baldor
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Need help confirming compatibility or finding the right part? Contact PumpStop — chat or call (781) 281-8905.
UPC
781568144459
Supplier Part Number
IDM3661T
Category
AC Motors
Subcategory
AC Inverter/Vector Duty Motors
Product Family
General Purpose
Agency Approvals
UR, CSA
Ambient Temperature
40 °C
Approximate Weight (lbs)
111.0
Auxillary Box
No Auxillary Box
Auxillary Box Lead Termination
None
Base Indicator
Rigid
Bearing Grease Type
Polyrex EM (-20F +300F)
Blower
BLOWER
Catalog Number
IDM3661T
Current @ Voltage
4.100 A @ 460.0 V, 8.200 A @ 230.0 V
Design Code
B
Drip Cover
No Drip Cover
Duty Rating
CONT
Efficiency @ 100% Load
89.5 %
Electrically Isolated Bearing
Not Electrically Isolated
Enclosure
TEBC
Feedback Device
NO FEEDBACK
Frame
184TC
Frame Material
Cast Iron
Frequency
60.00 Hz
Front Face Code
Encoder/Feedback Device
Front Shaft Indicator
None
Haz Area Class and Group
NONE
Haz Area Division
Not Applicable
Heater Indicator
No Heater
High Voltage Full Load Amps
4.1 a
Insulation Class
H
Inverter Code
Inverter Duty
KVA Code
J
Lifting Lugs
Standard Lifting Lugs
Locked Bearing Indicator
Locked Bearing
Max Speed
6000 rpm
Motor Lead Exit
Ko Box
Motor Lead Quantity/Wire Size
9 @ 16 AWG
Motor Lead Termination
Flying Leads
Motor Letter Type
Three Phase
Motor Standards
NEMA
Motor Type
0632M
Mounting Arrangement
F1
Number of Poles
4
Output
3.000 hp
Output @ Frequency
3.000 HP @ 60 HZ
Overall Length
21.71 IN
Phase
3
Power Factor
77
Pulley End Bearing Type
Ball
Pulley Face Code
C-Face
Pulley Shaft Indicator
Standard
Rodent Screen
None
RoHS Status
ROHS NON-COMPLIANT
Service Factor
1
Shaft Diameter
1.125 IN
Shaft Extension Location
Pulley End
Shaft Ground Indicator
No Shaft Grounding
Shaft Rotation
Reversible: Connected Standard
Shaft Slinger Indicator
No Slinger
Speed
1755 rpm
Speed Code
Single Speed
Starting Method
Direct on line
Synchronous Speed
1,800 rpm
Synchronous Speed @ Frequency
1800 RPM @ 60 HZ
Thermal Device - Bearing
None
Thermal Device - Winding
Normally Closed Thermostat
Vibration Sensor Indicator
No Vibration Sensor
Voltage
230 V, 460 V
Voltage @ Frequency
230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1
None
Winding Thermal 2
None
