Description

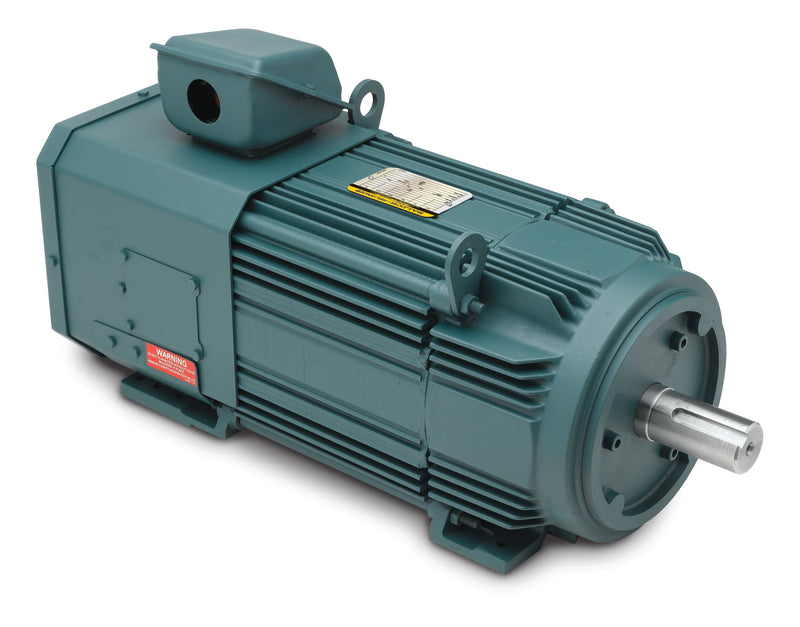

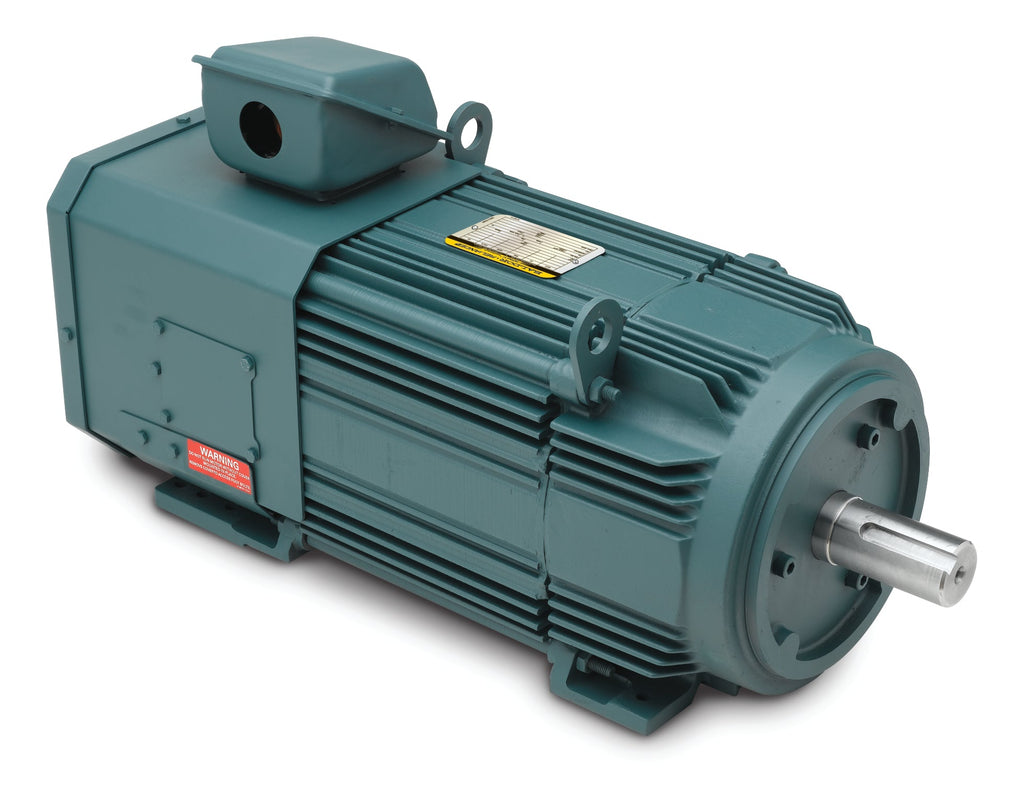

Baldor Replacement Part — Component
The Baldor IDBRPM18204C for Baldor pump systems.
Part Specifications
| Part Number | IDBRPM18204C |
| Brand | Baldor |
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
- UPC
- 781568604991
- Supplier Part Number
- IDBRPM18204C
- Category
- AC Motors
- Subcategory
- AC Laminated Frame - RPMAC Motors
- Product Family
- General Industrial
- Agency Approvals
- CCSA US
- Approximate Weight (lbs)
- 366.001
- Auxillary Box
- No Auxillary Box
- Base Indicator
- Rigid
- Bearing Grease Type
- Polyrex EM (-20F +300F)
- Catalog Number
- IDBRPM18204C
- Current @ Voltage
- 27.000 A @ 460.0 V
- Duty Rating
- CONT
- Enclosure
- TEBC
- Feedback Device
- NO FEEDBACK
- Frame
- FL1852C
- Frame Material
- Aluminum
- Frame Prefix
- FL
- Frequency
- 60.00 Hz
- Heater Indicator
- No Heater
- High Voltage Full Load Amps
- 27.0 a
- Insulation Class
- H
- Motor Letter Type
- Three Phase
- Motor Standards
- NEMA
- Mounting Arrangement
- F3
- Output
- 20.000 hp
- Output @ Frequency
- 20.000 HP @ 60 HZ
- Overall Length
- 27.96 IN
- Phase
- 3
- Pulley End Bearing Type
- Ball
- Pulley Face Code
- C-Face
- Service Factor
- 1
- Shaft Diameter
- 1.625 IN
- Shaft Ground Indicator
- No Shaft Grounding
- Shaft Rotation
- Reversible
- Speed
- 1755 rpm
- Synchronous Speed
- 1,800 rpm
- Synchronous Speed @ Frequency
- 1800 RPM @ 60 HZ
- Thermal Device - Bearing
- None
- Thermal Device - Winding
- Normally Closed Thermostat
- Voltage
- 460 V
- Voltage @ Frequency
- 460.0 V @ 60 HZ
