Baldor EM4312T-G - 50 HP, 1185RPM, 3 Phase, 60HZ, 365T, A3668M, TEFC, F 60HZ Three Phase 50 HP

Save $4,542.75
BaldorSKU: EM4312T-G

Price:
Sale price$13,628.25 Regular price$18,171.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

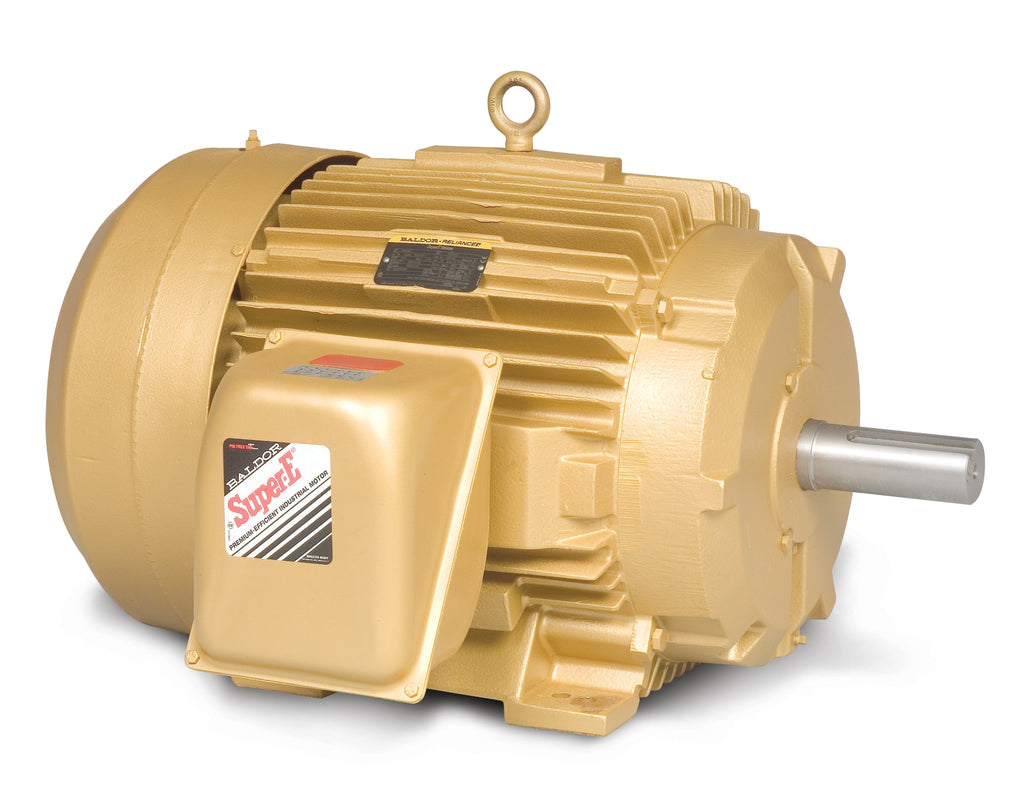

Baldor EM4312T-G Super-E Motor

The Baldor EM4312T-G is a high-performance 50 HP Super-E motor designed for reliable operation in various industrial applications. With a speed of 1185 RPM and a robust 3-phase, 60Hz configuration, this motor is engineered to deliver exceptional efficiency and durability.

Key Features:

  • Power: 50 HP
  • Speed: 1185 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 365T
  • Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: EM4312T-G

This motor is equipped with a Baldor-Reliance shaft grounding brush, ensuring enhanced protection against electrical discharge and extending the lifespan of your equipment. The TEFC design provides superior protection against dust and moisture, making it ideal for demanding environments.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EM4312T-G to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568665107
Supplier Part Number EM4312T-G
Category AC Motors
Subcategory Super-E motor with Baldor-Reliance shaft grounding brush
Product Family General Industrial
Agency Approvals NEMA PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 910.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number EM4312T-G
Current @ Voltage 124.000 A @ 230.0 V, 132.000 A @ 208.0 V, 62.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.1 %
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 365T
Frame Material Iron
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 62.0 a
Insulation Class H
Inverter Code Inverter Ready
IP Rating NONE
KVA Code G
Lifting Lugs Standard Lifting Lugs
Max Speed 1800 rpm
Motor Lead Quantity/Wire Size 3 @ 4 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A3668M
Mounting Arrangement F1
Number of Poles 6
Output 50.000 hp
Output @ Frequency 50.000 HP @ 60 HZ
Overall Length 33.48 IN
Phase 3
Power Factor 81
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 2.375 IN
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1185 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
