Baldor EM3616T-5 - 7.5 HP, 3470RPM, 3 Phase, 60HZ, 184T, 3646M, TEFC, F 60HZ Three Phase Three Phase 7.5 HP 3646 M Cable

Save $531.00
BaldorSKU: EM3616T-5

Price:
Sale price$1,593.00 Regular price$2,124.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

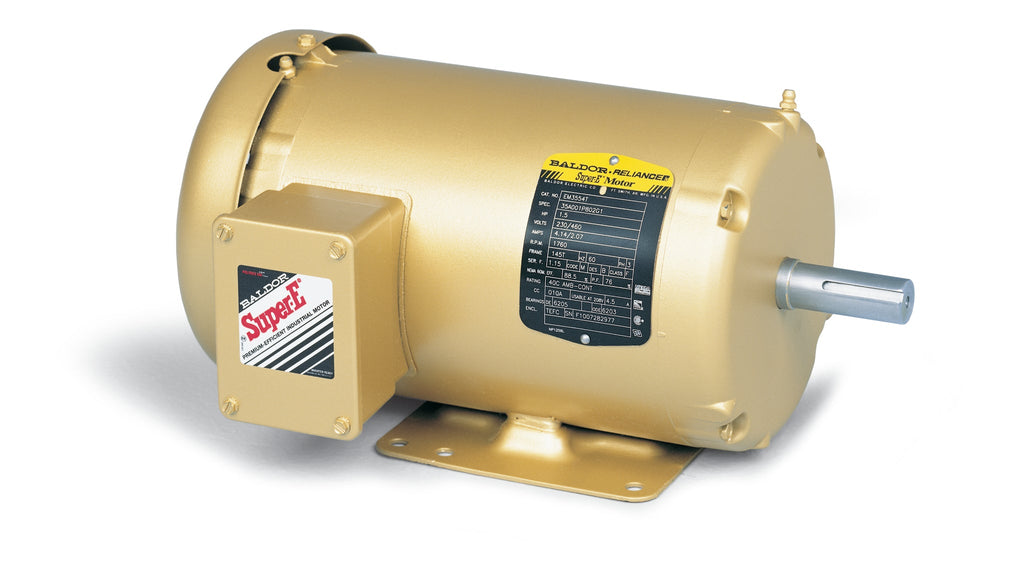

Baldor EM3616T-5 - 7.5 HP Three Phase Enclosed Motor

The Baldor EM3616T-5 is a high-performance three-phase enclosed motor designed for reliable operation in various industrial applications. With a powerful 7.5 HP output and a speed of 3470 RPM, this motor is engineered to deliver exceptional efficiency and durability. It operates at 60Hz and features a 184T frame size, making it suitable for a wide range of pump and machinery applications.

Key Features:

  • Power: 7.5 HP
  • Speed: 3470 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 184T
  • Enclosure: Totally Enclosed Fan Cooled (TEFC)
  • Product Code: EM3616T-5

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EM3616T-5 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568541647
Supplier Part Number EM3616T-5
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 98.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EM3616T-5
Current @ Voltage 6.800 A @ 575.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 184T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 6.8 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code L
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 3 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3646M
Mounting Arrangement F1
Number of Poles 2
Output 7.500 hp
Output @ Frequency 7.500 HP @ 60 HZ
Overall Length 18.05 IN
Phase 3
Power Factor 93
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3470 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 575 V
Voltage @ Frequency 575.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
