Baldor EM3615T-BG - 5 HP, 1750RPM, 3 Phase, 60HZ, 184T, 3642M, TEFC, F1 60HZ Three Phase 5 HP 3642 M Cable

Save $459.50
BaldorSKU: EM3615T-BG

Price:
Sale price$1,378.50 Regular price$1,838.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

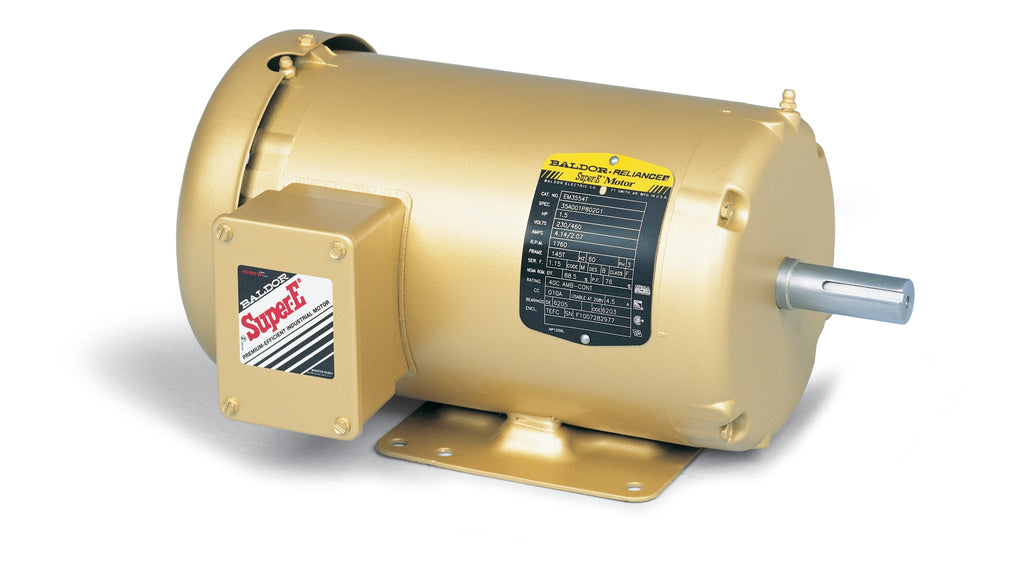

Baldor EM3615T-BG - 5 HP Super-E Motor

Upgrade your pumping system with the Baldor EM3615T-BG, a high-performance 5 HP, 1750 RPM, 3-phase motor designed for efficiency and reliability. This TEFC (Totally Enclosed Fan Cooled) motor is built to withstand harsh environments while providing optimal performance. With a frame size of 184T and a service factor of 1.0, this motor is perfect for a variety of industrial applications.

The Baldor-Reliance Super-E motor features a shaft grounding brush that helps to prevent bearing damage and extends the life of the motor. Operating at 60Hz, this motor is engineered for durability and efficiency, making it an ideal choice for your pumping needs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EM3615T-BG to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

Specifications:

  • Power: 5 HP
  • Speed: 1750 RPM
  • Phase: 3
  • Frequency: 60Hz
  • Frame Size: 184T
  • Type: TEFC
  • Product Code: EM3615T-BG

Choose the Baldor EM3615T-BG for a reliable and efficient motor solution that meets your industrial needs.

UPC 781568719701
Supplier Part Number EM3615T-BG
Category AC Motors
Subcategory Super-E motor with Baldor-Reliance shaft grounding brush
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 93.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EM3615T-BG
Current @ Voltage 13.900 A @ 208.0 V, 6.700 A @ 460.0 V, 13.400 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 89.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 184T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 6.7 a
Insulation Class H
Inverter Code Inverter Ready
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3642M
Mounting Arrangement F1
Number of Poles 4
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 18.04 IN
Phase 3
Power Factor 78
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1750 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
