Baldor EM3546 - 1 HP, 1770RPM, 3 Phase, 60HZ, 56, 3520M, TEFC, F1, N 60HZ Three Phase Three Phase 1 HP 3520 M Cable

Save $269.75
BaldorSKU: EM3546

Price:
Sale price$809.25 Regular price$1,079.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

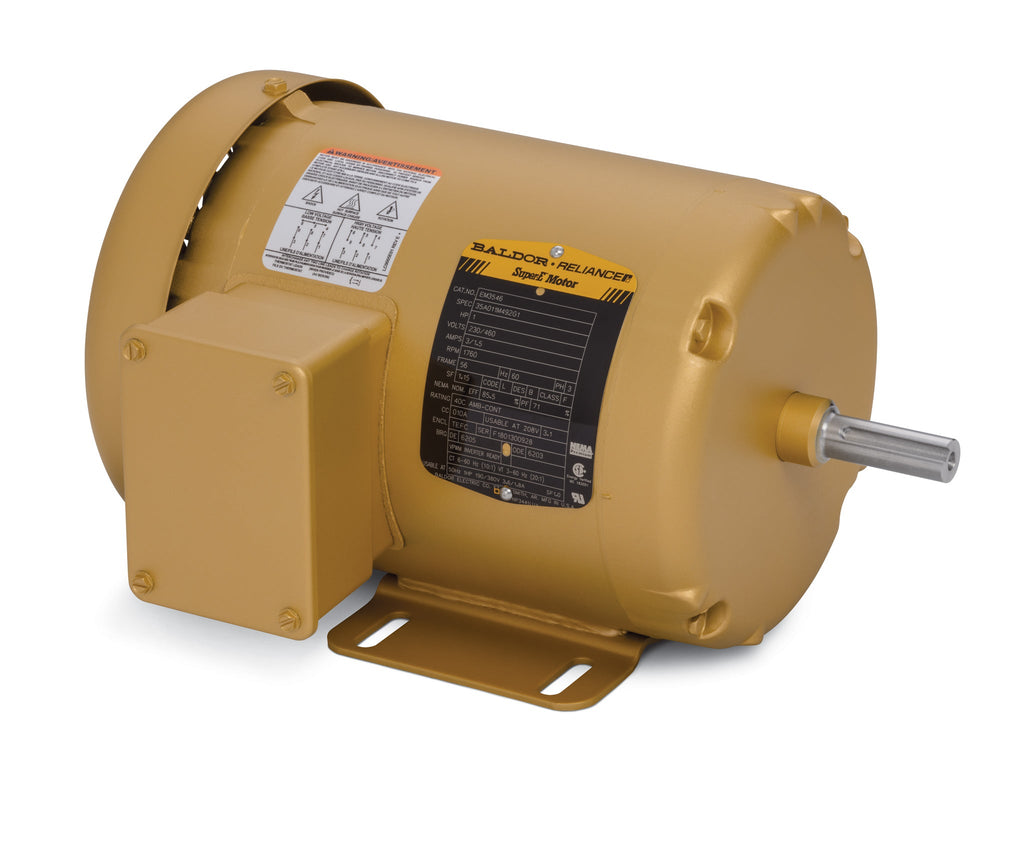

Baldor EM3546 - 1 HP Three Phase Enclosed Motor

Discover the reliability and performance of the Baldor EM3546, a robust 1 HP, 1770 RPM three-phase motor designed for a variety of industrial applications. Operating at 60Hz, this motor features a TEFC (Totally Enclosed Fan Cooled) design, ensuring durability and protection against harsh environments.

Specifications:

  • Power: 1 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame: 56
  • Model: 3520M
  • Enclosure: TEFC
  • Product Code: EM3546

This Baldor-Reliance motor is ideal for applications requiring reliable power and efficiency. As a trusted source for replacement pumps and parts, Pump-Stop.com is here to help you find the right solution for your needs. If you have questions or need assistance, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568295915
Supplier Part Number EM3546
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 35.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EM3546
Current @ Voltage 3.200 A @ 208.0 V, 3.200 A @ 230.0 V, 1.600 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 85.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.6 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code N
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3520M
Mounting Arrangement F1
Number of Poles 4
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 12.23 IN
Phase 3
Power Factor 69
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
