Baldor EM25694T-4 - 300 HP, 1785RPM, 3 Phase, 60HZ, 449T, Dp, F1 60HZ Three Phase Three Phase 300 HP

Save $10,740.00
BaldorSKU: EM25694T-4

Price:
Sale price$32,220.00 Regular price$42,960.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

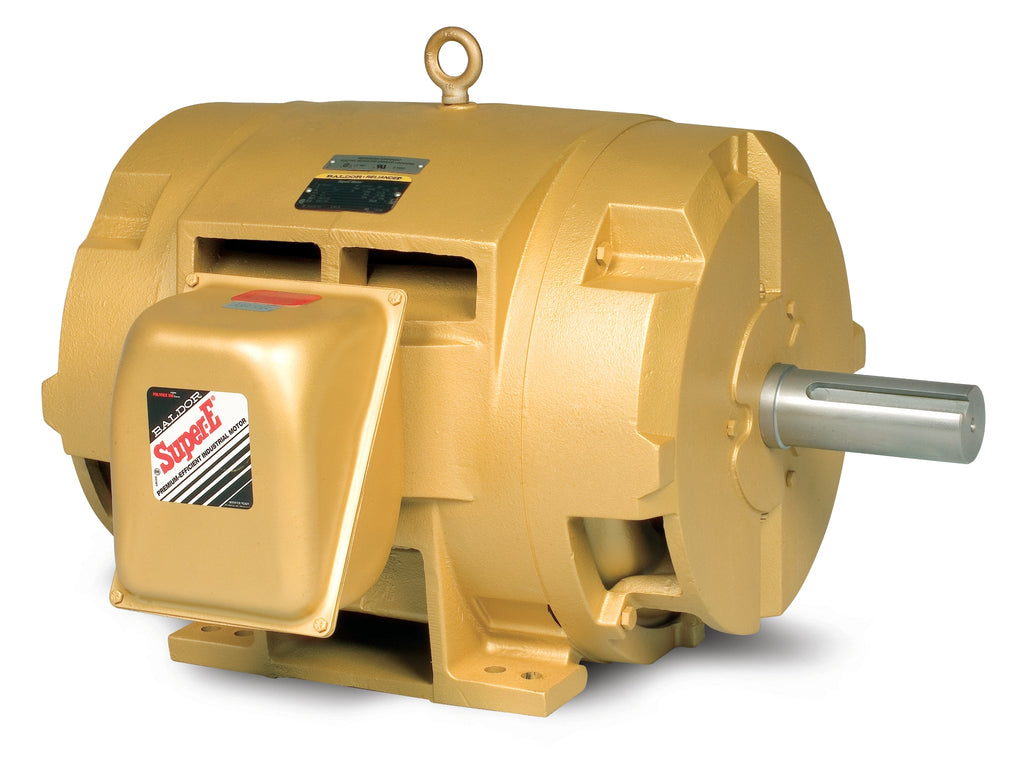

Baldor EM25694T-4 - 300 HP Three Phase Open Motor

Introducing the Baldor EM25694T-4, a high-performance three-phase open motor designed for demanding applications. With a robust power output of 300 HP and a speed of 1785 RPM, this motor is engineered to deliver reliable performance in various industrial settings. Operating at 60Hz, it features a 449T frame size and is built for durability and efficiency.

Key Specifications:

  • Power: 300 HP
  • Speed: 1785 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 449T
  • Type: Open Drip Proof (DP)
  • Product Code: EM25694T-4

As a trusted vendor, Baldor ensures that this motor meets high standards of quality and performance, making it an ideal choice for your pump applications. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EM25694T-4 to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568625422
Supplier Part Number EM25694T-4
Category AC Motors
Subcategory Three Phase Open
Product Family General Industrial
Agency Approvals CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 2151.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number EM25694T-4
Current @ Voltage 331.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.8 %
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 449T
Frame Material Cast Iron
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 331.0 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code G
Lifting Lugs Standard Lifting Lugs
Motor Lead Quantity/Wire Size 6 @ 2/0 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A44112M
Mounting Arrangement F1
Number of Poles 4
Output 300.000 hp
Output @ Frequency 300.000 HP @ 60 HZ
Overall Length 48.13 IN
Phase 3
Power Factor 88
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 3.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1785 rpm
Speed Code Single Speed
Starting Method Wye Start - Delta Run
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ

Motor Curves
