Baldor EM2563T-4 - 200 HP, 1780RPM, 3 Phase, 60HZ, 445T, 1880M, Open 60HZ Three Phase Three Phase 200 HP 1880 M Cable

Save $6,280.50
BaldorSKU: EM2563T-4

Price:
Sale price$18,841.50 Regular price$25,122.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

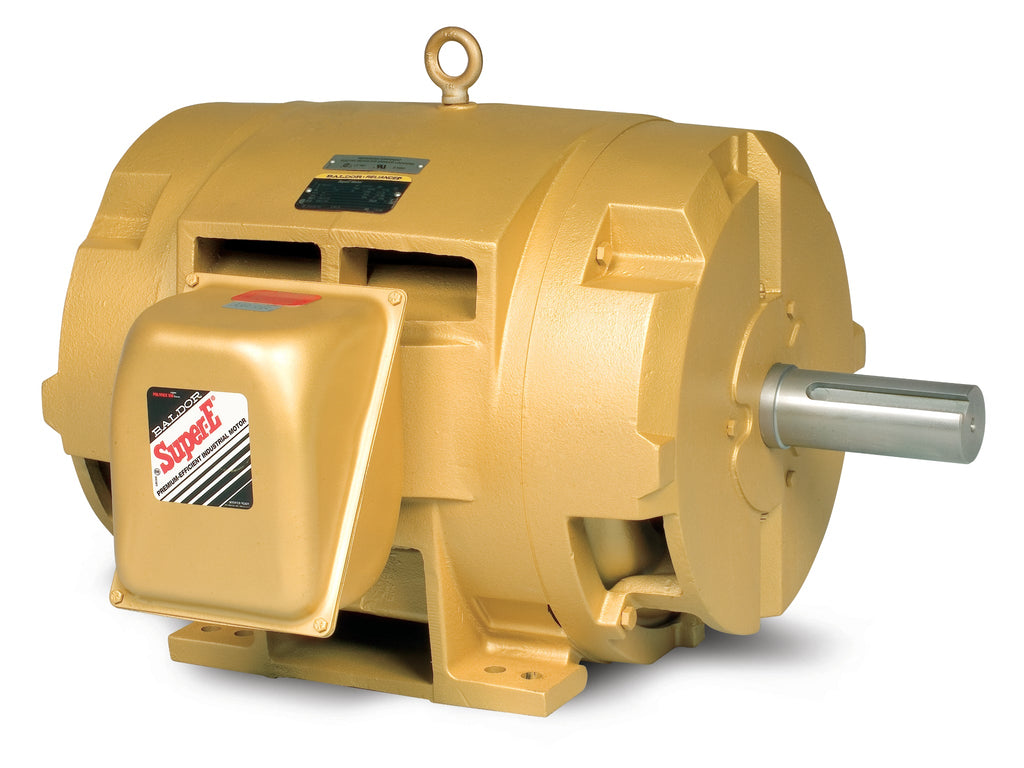

Baldor EM2563T-4 - 200 HP Three Phase Open Motor

Discover the power and reliability of the Baldor EM2563T-4, a high-performance 200 HP motor designed for demanding applications. Operating at 1780 RPM, this three-phase motor is engineered for efficiency and durability, making it an ideal choice for various industrial settings.

  • Power: 200 HP
  • Speed: 1780 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 445T
  • Insulation Class: 1880M
  • Type: Open

This Baldor-Reliance motor is perfect for applications requiring robust performance and reliability. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

Before purchasing, please check your current pump for the exact part number or SKU that matches the Baldor EM2563T-4. If you have any questions or need assistance in finding the right item, feel free to call us at (781) 281-8905.

UPC 781568221648
Supplier Part Number EM2563T-4
Category AC Motors
Subcategory Three Phase Open
Agency Approvals CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 1625.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number EM2563T-4
Current @ Voltage 222.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.8 %
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 445T
Frame Material Cast Iron
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 222.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code F
Lifting Lugs No Lifting Lugs
Motor Lead Quantity/Wire Size 6 @ 1 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A44072M
Mounting Arrangement F1
Number of Poles 4
Output 200.000 hp
Output @ Frequency 200.000 HP @ 60 HZ
Overall Length 39.56 IN
Phase 3
Power Factor 88
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 3.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1785 rpm
Speed Code Single Speed
Starting Method Wye Start - Delta Run
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ

Motor Curves
