Baldor EL1408T - 3 HP, 1755RPM, 1 Phase, 60HZ, 184T, 3634LC, Opsb, F1 60HZ Single Phase Single Phase 3 HP

Save $470.00
BaldorSKU: EL1408T

Price:
Sale price$1,410.00 Regular price$1,880.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

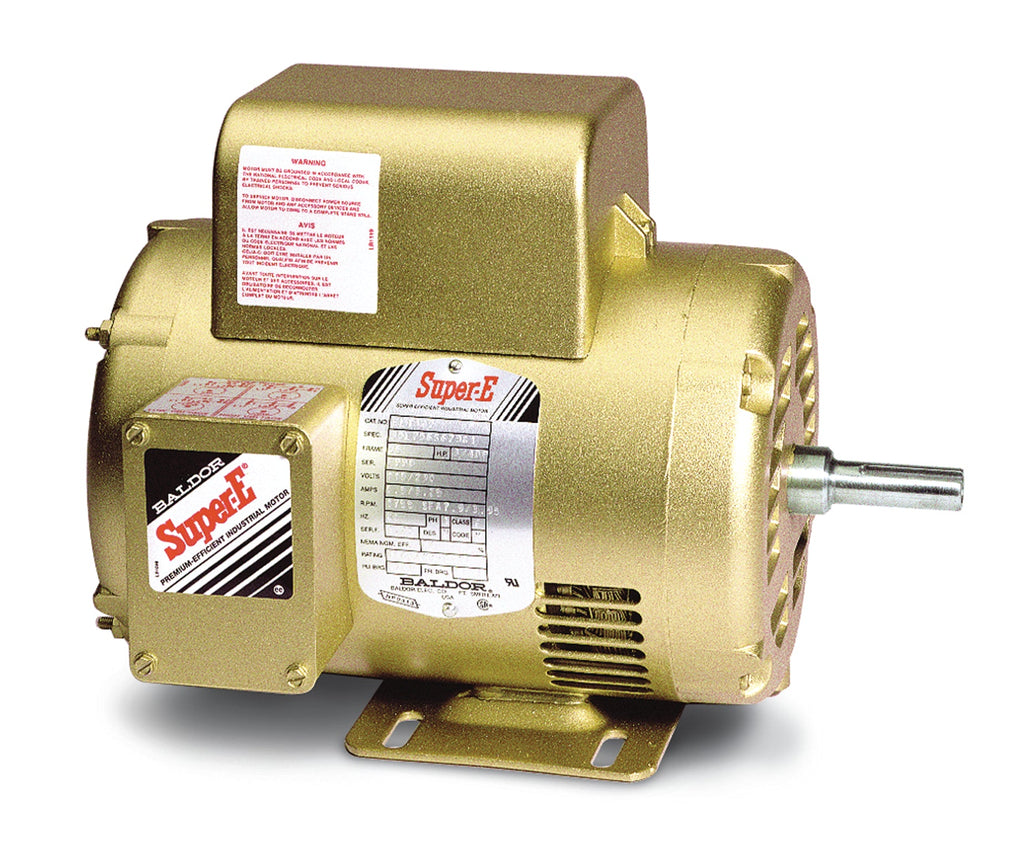

Baldor EL1408T - 3 HP Single Phase Open Motor

The Baldor EL1408T is a high-performance single-phase motor designed for a variety of applications. With a robust 3 HP power output and a speed of 1755 RPM, this motor is ideal for driving pumps and other machinery efficiently. Operating at 60HZ, it features a 184T frame size and is built for durability and reliability.

Key Specifications:

  • Power: 3 HP
  • Speed: 1755 RPM
  • Phase: Single Phase
  • Frequency: 60HZ
  • Frame Size: 184T
  • Product Code: EL1408T

This Baldor-Reliance motor is categorized under AC Motors and is perfect for those seeking a dependable solution for their pump systems. At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568138564
Supplier Part Number EL1408T
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM, UR, CURUS, CSA EEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 81.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EL1408T
Current @ Voltage 11.200 A @ 230.0 V, 12.500 A @ 208.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 85.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 184T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 11.2 a
Insulation Class F
Inverter Code Not Inverter
KVA Code F
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 14 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3634LC
Mounting Arrangement F1
Number of Poles 4
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 16.50 IN
Phase 1
Power Factor 98
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1750 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 208 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 208.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
