Baldor EL1405T - 2 HP, 1740RPM, 1 Phase, 60HZ, 182T, 3623LC, Opsb, F1 60HZ Single Phase Single Phase 2 HP

Save $449.25
BaldorSKU: EL1405T

Price:
Sale price$1,347.75 Regular price$1,797.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

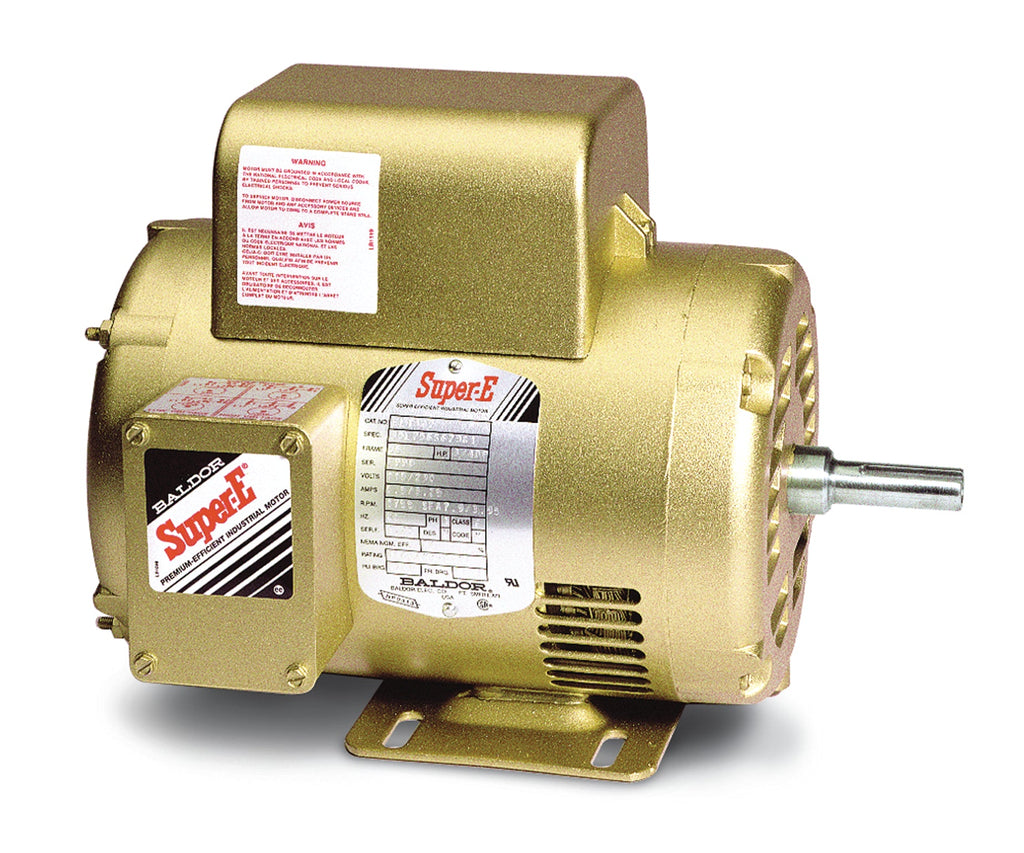

Baldor EL1405T - 2 HP Single Phase Open Motor

The Baldor EL1405T is a high-performance single-phase motor designed for a variety of applications. With a robust 2 HP power output and a speed of 1740 RPM, this motor is ideal for driving pumps and other machinery efficiently. Operating at 60Hz, it features a 182T frame size and is built for durability and reliability.

Key Specifications:

  • Power: 2 HP
  • Speed: 1740 RPM
  • Phase: Single Phase
  • Frequency: 60Hz
  • Frame Size: 182T
  • Product Code: EL1405T

As a trusted vendor, Baldor ensures that this motor meets high standards of quality and performance, making it a preferred choice for professionals and DIY enthusiasts alike.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EL1405T to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568138557
Supplier Part Number EL1405T
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM, UR, CURUS, CSA EEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 65.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EL1405T
Current @ Voltage 17.600 A @ 115.0 V, 8.800 A @ 230.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 182T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 8.8 a
Insulation Class F
Inverter Code Not Inverter
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3623LC
Mounting Arrangement F1
Number of Poles 4
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 15.87 IN
Phase 1
Power Factor 90
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1740 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 230.0 V @ 60 HZ, 115.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
