Baldor EL11308 - .75 HP, 1160RPM, 1 Phase, 60HZ, 56H, 3530LC, Open, F 60HZ Single Phase Single Phase 75 HP

Save $364.75
BaldorSKU: EL11308

Price:
Sale price$1,094.25 Regular price$1,459.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

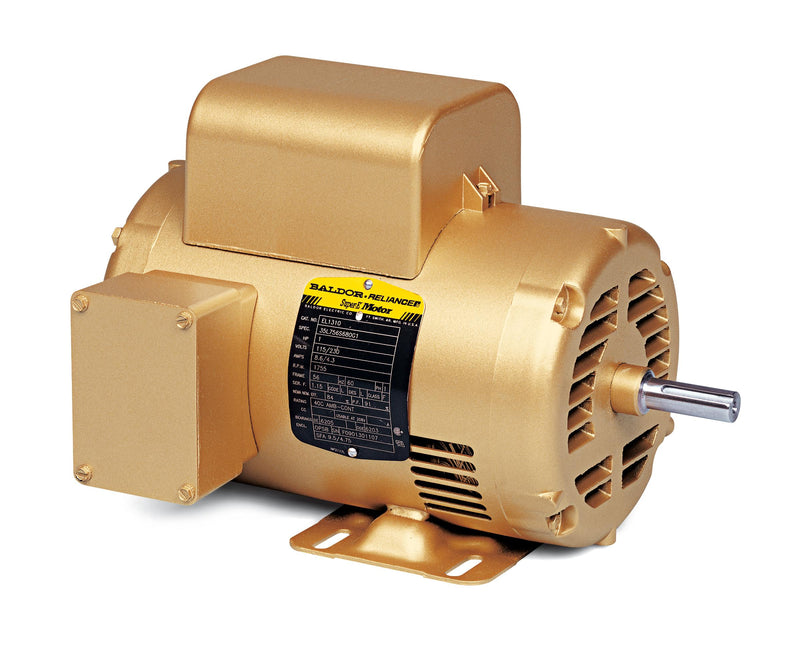

Baldor EL11308 - .75 HP Single Phase Open Motor

The Baldor EL11308 is a high-performance .75 HP single phase open motor designed for reliable operation in various applications. With a speed of 1160 RPM and a frequency of 60Hz, this motor is ideal for powering pumps and other equipment that require consistent performance. The motor features a 56H frame and is built to last, ensuring durability and efficiency in your operations.

Key Specifications:

  • Horsepower: .75 HP
  • RPM: 1160
  • Phase: 1 Phase
  • Frequency: 60Hz
  • Frame: 56H
  • Product Code: EL11308

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EL11308 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568763933
Supplier Part Number EL11308
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 47.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EL11308
Current @ Voltage 3.200 A @ 230.0 V, 3.500 A @ 208.0 V, 6.300 A @ 115.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 81.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 56H
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 3.2 a
Insulation Class F
Inverter Code Not Inverter
IP Rating NONE
KVA Code H
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3530LC
Mounting Arrangement F1
Number of Poles 6
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 12.62 IN
Phase 1
Power Factor 95
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1160 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 115 V, 208 V, 230 V
Voltage @ Frequency 115.0 V @ 60 HZ, 208.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
