Baldor EL11302 - .33 HP, 1140RPM, 1 Phase, 60HZ, 56, 3421LC, ODP, F1 60HZ Single Phase Single Phase 33 HP

Save $215.75
BaldorSKU: EL11302

Price:
Sale price$647.25 Regular price$863.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

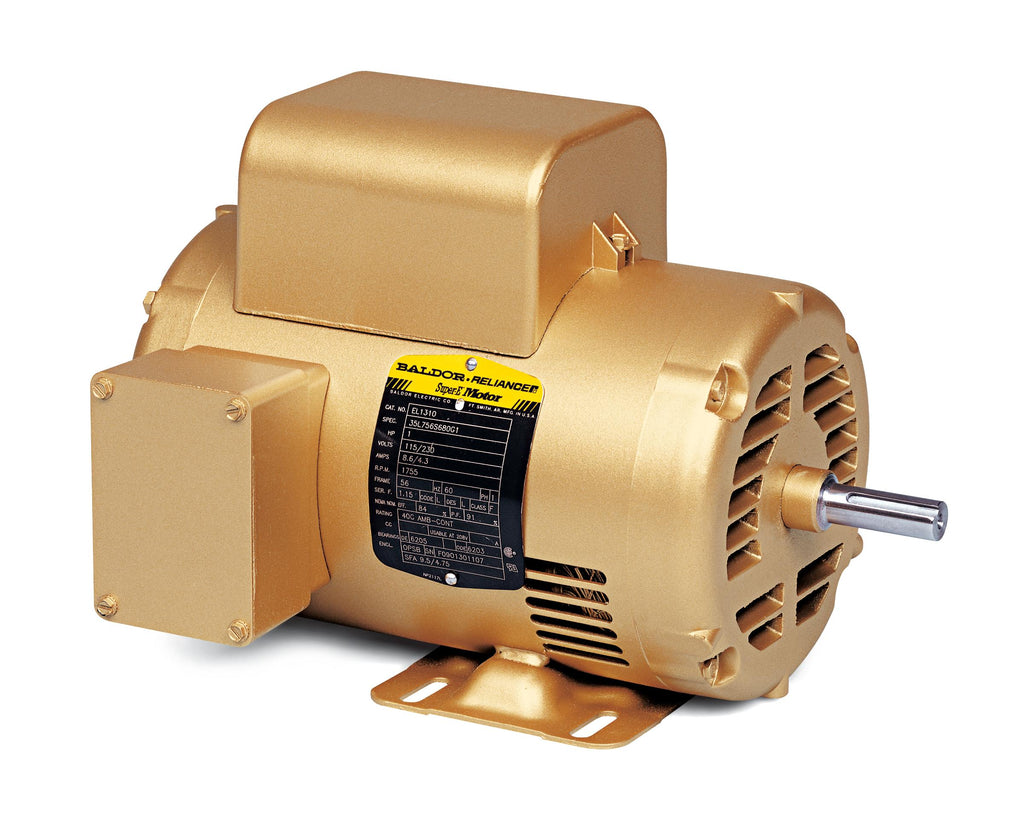

Baldor EL11302 - .33 HP Single Phase Open Motor

The Baldor EL11302 is a reliable and efficient .33 HP single phase open motor designed for various applications. Operating at 1140 RPM and powered by a 60Hz electrical supply, this motor is ideal for those seeking a robust solution for their pumping needs. With a frame size of 56 and a model number of 3421LC, this ODP (Open Drip Proof) motor ensures durability and performance in demanding environments.

Key Features:

  • Power: .33 HP
  • Speed: 1140 RPM
  • Phase: Single Phase
  • Frequency: 60Hz
  • Frame Size: 56
  • Model: 3421LC
  • Type: Open Drip Proof (ODP)

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EL11302 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568733622
Supplier Part Number EL11302
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 30.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EL11302
Current @ Voltage 1.900 A @ 230.0 V, 3.800 A @ 115.0 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 68.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.9 a
Insulation Class F
Inverter Code Not Inverter
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3421LC
Mounting Arrangement F1
Number of Poles 6
Output 0.330 hp
Output @ Frequency .330 HP @ 60 HZ
Overall Length 10.13 IN
Phase 1
Power Factor 83
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.35
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1140 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
