Baldor EL11204 - .25 HP, 1140RPM, 1 Phase, 60HZ, 48, 3416LC, Open, F1 60HZ Single Phase Single Phase 25 HP

Save $202.25
BaldorSKU: EL11204

Price:
Sale price$606.75 Regular price$809.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

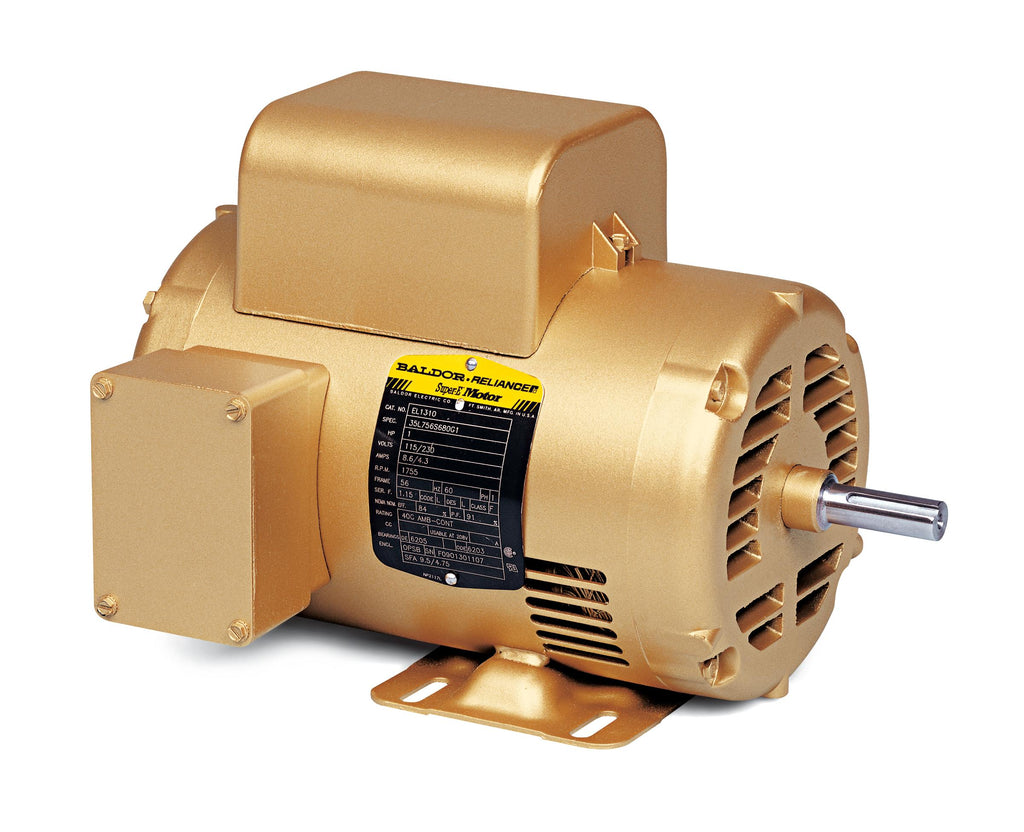

Baldor EL11204 - .25 HP Single Phase Open Motor

The Baldor EL11204 is a reliable and efficient .25 HP single phase open motor designed for various applications. Operating at 1140 RPM and powered by a 60Hz electrical supply, this motor is perfect for those seeking a robust solution for their pumping needs. With a frame size of 48 and a model number of 3416LC, this motor is built to deliver consistent performance in demanding environments.

Key Features:

  • Power: .25 HP
  • Speed: 1140 RPM
  • Phase: Single Phase
  • Frequency: 60Hz
  • Frame Size: 48
  • Model: 3416LC
  • Type: Open

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EL11204 to ensure compatibility. If you're having trouble locating the right item, our team is here to help!

UPC 781568733486
Supplier Part Number EL11204
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 25.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EL11204
Current @ Voltage 1.450 A @ 230.0 V, 2.900 A @ 115.0 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 64.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 48
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.5 a
Insulation Class F
Inverter Code Not Inverter
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3416LC
Mounting Arrangement F1
Number of Poles 6
Output 0.250 hp
Output @ Frequency .250 HP @ 60 HZ
Overall Length 9.76 IN
Phase 1
Power Factor 84
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.35
Shaft Diameter 0.500 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1140 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
