Baldor EJPM4108T - 30 HP, 3525RPM, 3 Phase, 60HZ, 286JP, 1048M, TEFC, F 60HZ Three Phase 30 HP 1048 M Cable

Save $2,239.00
BaldorSKU: EJPM4108T

Price:
Sale price$6,717.00 Regular price$8,956.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

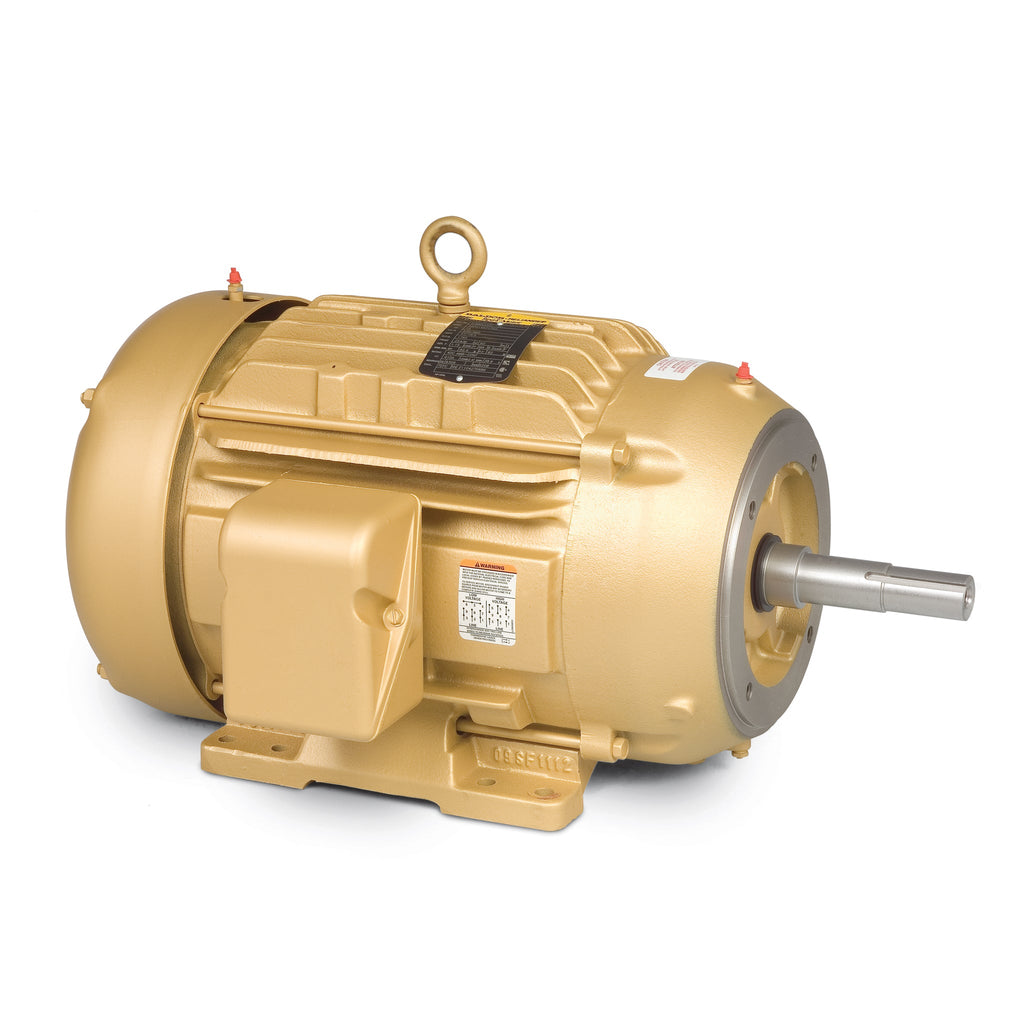

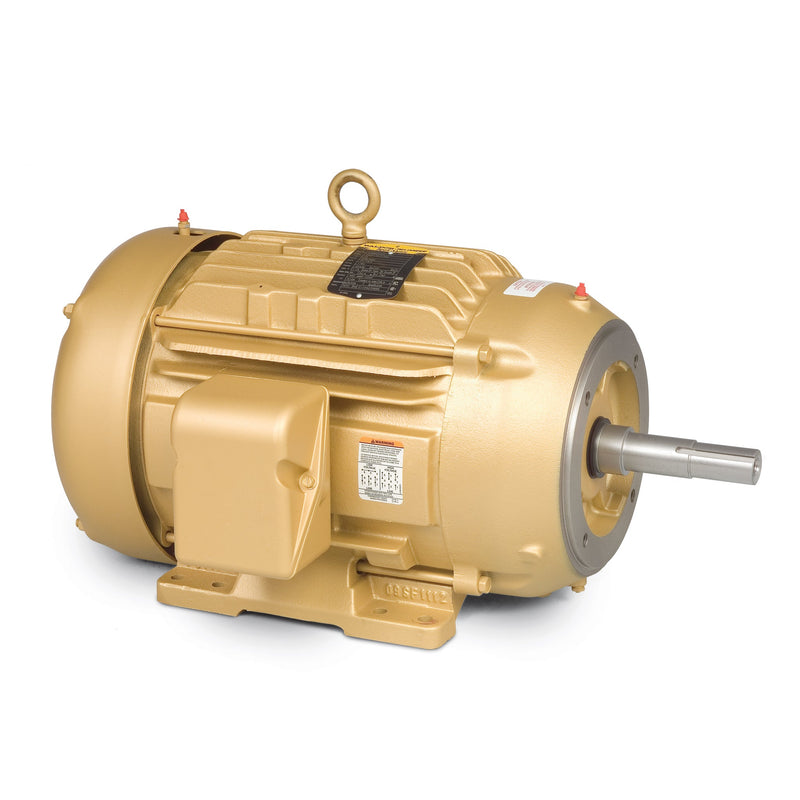

Baldor EJPM4108T - 30 HP Close Coupled Motor

Introducing the Baldor EJPM4108T, a high-performance 30 HP close coupled motor designed for reliable operation in various industrial applications. With a robust speed of 3525 RPM and a three-phase power supply, this motor is engineered to deliver exceptional efficiency and durability.

Specifications:

  • Power: 30 HP
  • Speed: 3525 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame: 286JP
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Motor Type: JM, JP, WCP Close Coupled Motors
  • Product Code: EJPM4108T

This Baldor-Reliance motor is ideal for applications requiring a dependable and efficient power source. Its TEFC design ensures protection against dust and moisture, making it suitable for challenging environments.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EJPM4108T to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568479476
Supplier Part Number EJPM4108T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 436.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EJPM4108T
Current @ Voltage 34.000 A @ 460.0 V, 68.000 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.7 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 286JP
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 34.0 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 10 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1048M
Mounting Arrangement F1
Number of Poles 2
Output 30.000 hp
Output @ Frequency 30.000 HP @ 60 HZ
Overall Length 31.56 IN
Phase 3
Power Factor 90
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Pump Coupling Shaft
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.750 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3525 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
