Baldor EJPM4104T - 30 HP, 1770RPM, 3 Phase, 60HZ, 286JP, 1056M, TEFC, F 60HZ Three Phase 30 HP 1056 M Cable

Save $2,385.25
BaldorSKU: EJPM4104T

Price:
Sale price$7,155.75 Regular price$9,541.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

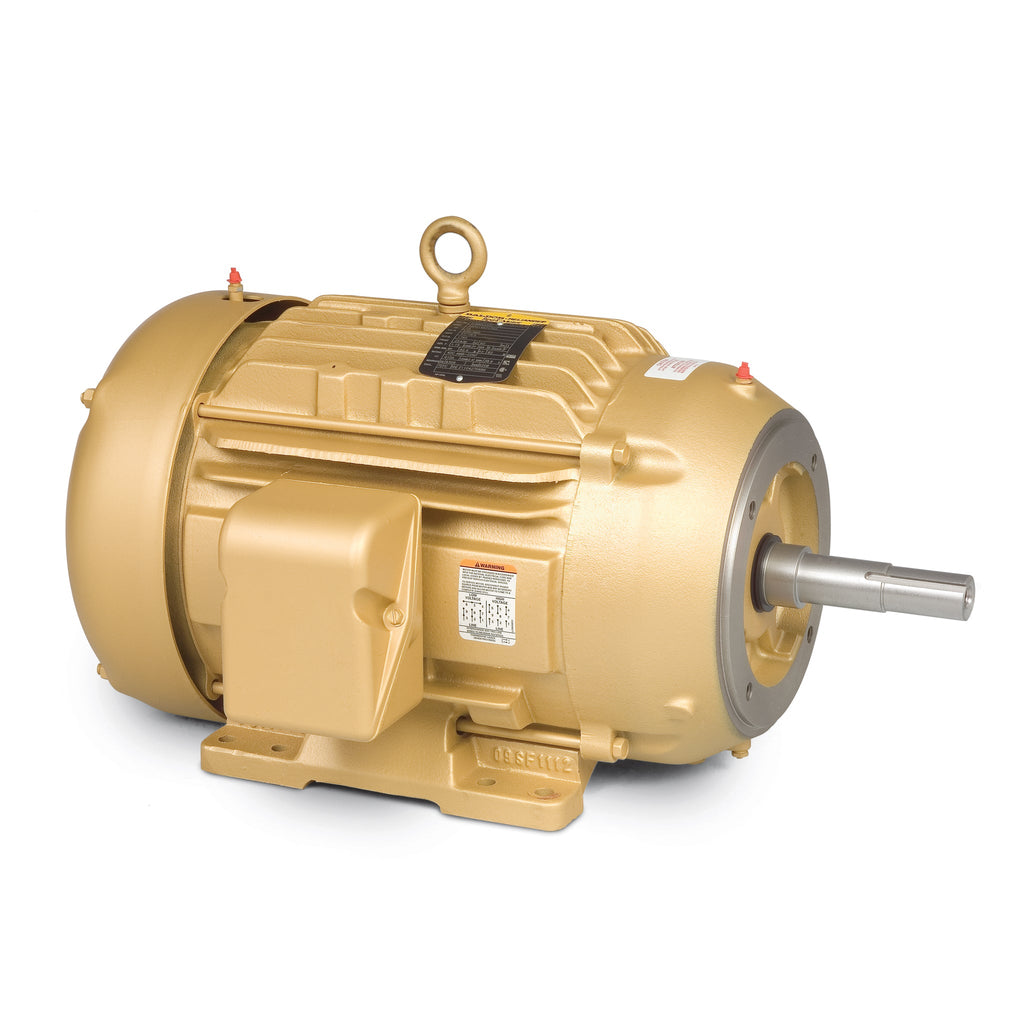

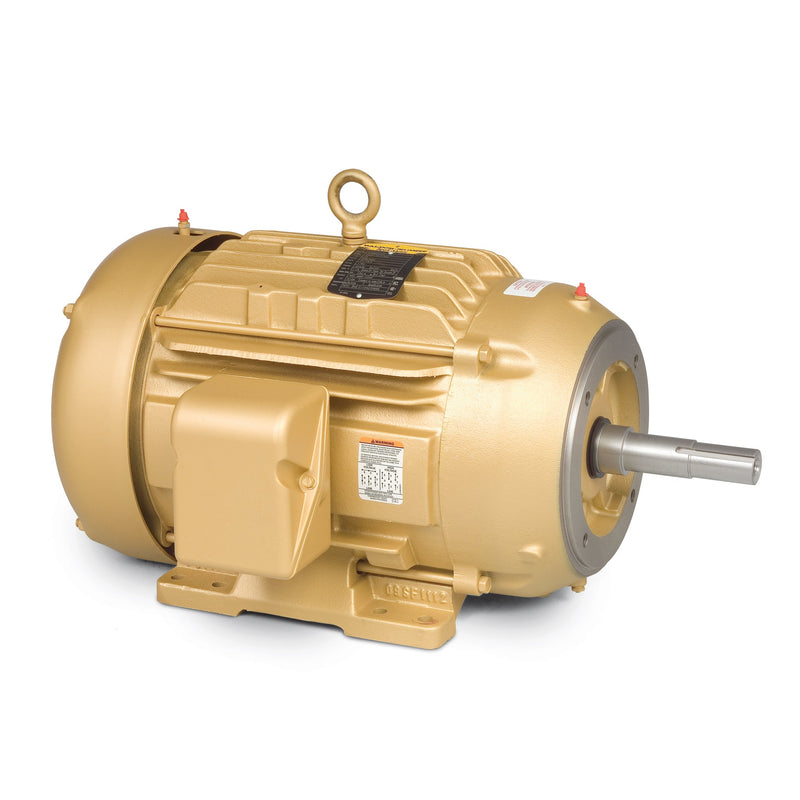

Baldor EJPM4104T - 30 HP Close Coupled Motor

Introducing the Baldor EJPM4104T, a high-performance 30 HP, 1770 RPM, 3-phase motor designed for reliable operation in various industrial applications. This TEFC (Totally Enclosed Fan Cooled) motor is engineered to withstand harsh environments while delivering optimal efficiency and durability.

Specifications:

  • Power: 30 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame: 286JP
  • Enclosure: TEFC
  • Type: JM, JP, WCP Close Coupled Motors
  • SKU: EJPM4104T

This Baldor-Reliance motor is ideal for pump applications, providing the reliability and performance you need. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

For assistance, please check your current pump for the exact part number or SKU that matches the Baldor EJPM4104T. If you have any questions or need help finding the right item, don't hesitate to call us at (781) 281-8905.

UPC 781568479490
Supplier Part Number EJPM4104T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 452.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EJPM4104T
Current @ Voltage 72.000 A @ 230.0 V, 76.000 A @ 208.0 V, 36.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.6 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 286JP
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 36.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 10 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1056M
Mounting Arrangement F1
Number of Poles 4
Output 30.000 hp
Output @ Frequency 30.000 HP @ 60 HZ
Overall Length 31.56 IN
Phase 3
Power Factor 83
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Pump Coupling Shaft
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.250 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
