Baldor EJPM2515T - 20 HP, 1765RPM, 3 Phase, 60HZ, 256JP, 3948M, Opsb, F 60HZ Three Phase 20 HP 3948 M Cable

Save $1,238.25
BaldorSKU: EJPM2515T

Price:
Sale price$3,714.75 Regular price$4,953.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

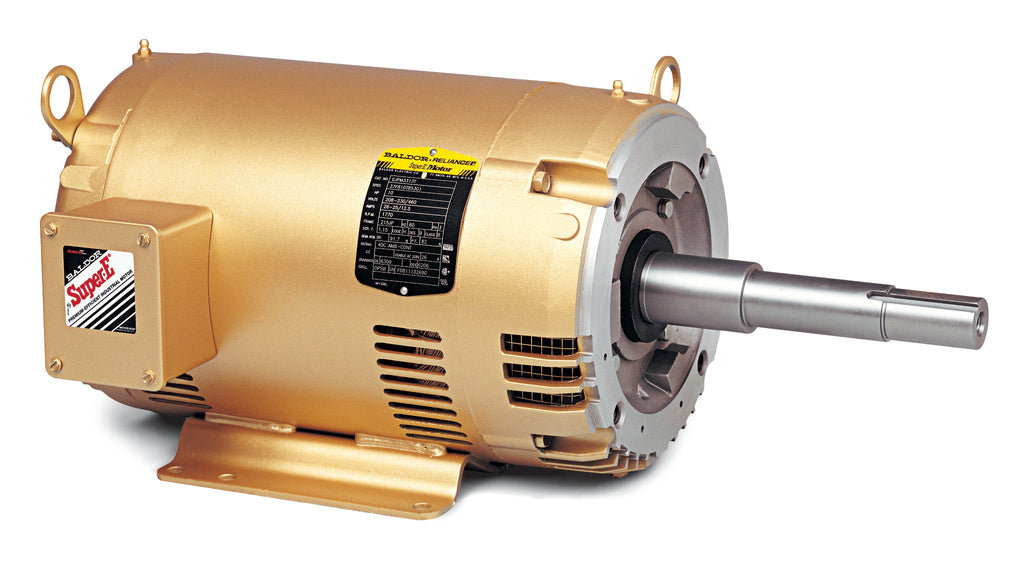

Baldor EJPM2515T - 20 HP Close Coupled Motor

Introducing the Baldor EJPM2515T, a high-performance 20 HP, 1765 RPM, 3-phase motor designed for reliable operation in various industrial applications. This motor operates at 60Hz and features a 256JP frame, making it an ideal choice for close-coupled pump systems.

Key Features:

  • Power: 20 HP
  • Speed: 1765 RPM
  • Phase: 3-Phase
  • Frequency: 60Hz
  • Frame Size: 256JP
  • Model: 3948M
  • Type: JM, JP, WCP Close Coupled Motors

As a trusted vendor, Baldor ensures that this motor meets high standards of quality and performance, making it a reliable choice for your pumping needs. At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor EJPM2515T. If you encounter any difficulties in finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568479414
Supplier Part Number EJPM2515T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 236.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EJPM2515T
Current @ Voltage 48.000 A @ 230.0 V, 52.000 A @ 208.0 V, 24.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 256JP
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 24.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 10 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3948M
Mounting Arrangement F1
Number of Poles 4
Output 20.000 hp
Output @ Frequency 20.000 HP @ 60 HZ
Overall Length 27.56 IN
Phase 3
Power Factor 85
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
Service Factor 1.15
Shaft Diameter 1.750 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
