Baldor EJMM4110T - 40 HP, 1775RPM, 3 Phase, 60HZ, 324JM, 1254M, TEFC, F 60HZ Three Phase 40 HP 1254 M Cable

Save $2,768.50
BaldorSKU: EJMM4110T

Price:
Sale price$8,305.50 Regular price$11,074.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

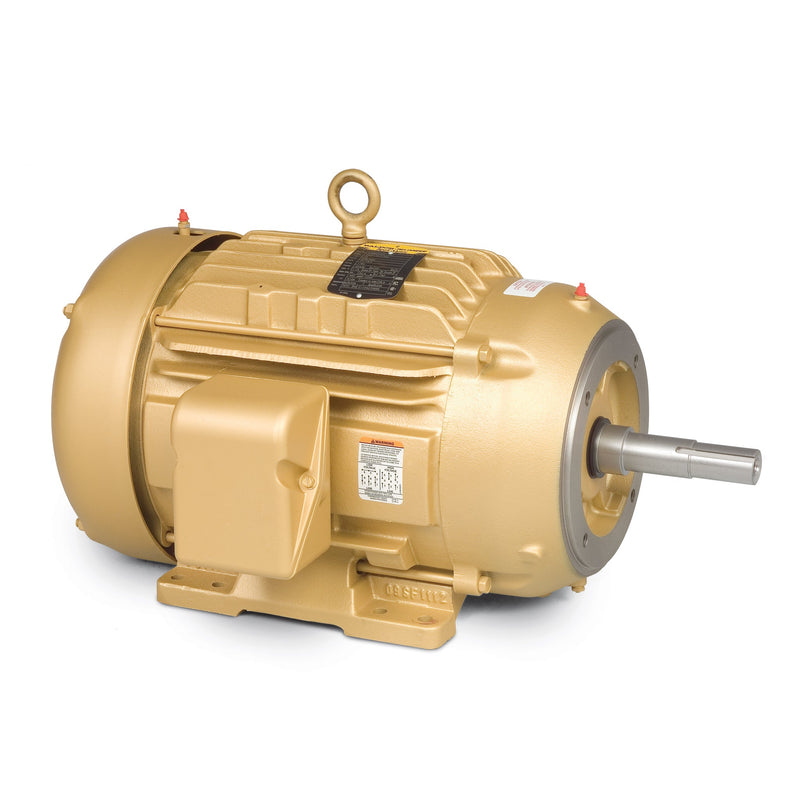

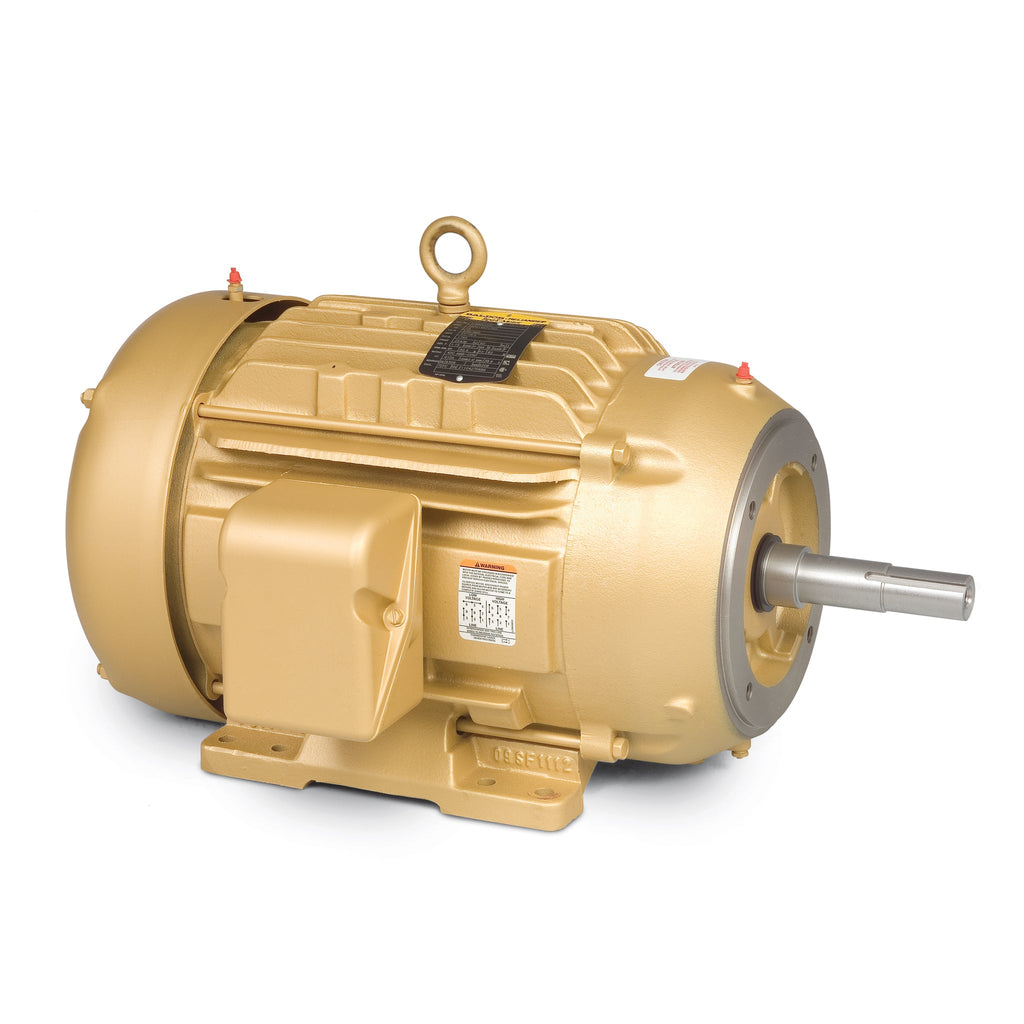

Baldor EJMM4110T - 40 HP Close Coupled Motor

Introducing the Baldor EJMM4110T, a high-performance 40 HP, 1775 RPM, 3-phase motor designed for reliability and efficiency in various industrial applications. This TEFC (Totally Enclosed Fan Cooled) motor operates at 60Hz and features a 324JM frame size, making it an ideal choice for close coupled pump systems.

With its robust construction and advanced engineering, the Baldor EJMM4110T ensures optimal performance and longevity, making it a trusted solution for your pumping needs. Whether you're replacing an existing motor or upgrading your system, this motor is engineered to deliver consistent power and efficiency.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EJMM4110T to ensure compatibility. Our team is here to help you find the perfect solution for your needs.

Product Specifications:

  • Power: 40 HP
  • Speed: 1775 RPM
  • Phase: 3
  • Frequency: 60Hz
  • Frame Size: 324JM
  • Type: TEFC
  • Product Code: EJMM4110T

Choose the Baldor EJMM4110T for a reliable and efficient motor solution that meets your industrial needs.

UPC 781568394960
Supplier Part Number EJMM4110T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 586.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EJMM4110T
Current @ Voltage 48.000 A @ 460.0 V, 96.000 A @ 230.0 V, 102.000 A @ 208.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.1 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 324JM
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 48.0 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 8 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1254M
Mounting Arrangement F1
Number of Poles 4
Output 40.000 hp
Output @ Frequency 40.000 HP @ 60 HZ
Overall Length 30.65 IN
Phase 3
Power Factor 82
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1775 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
