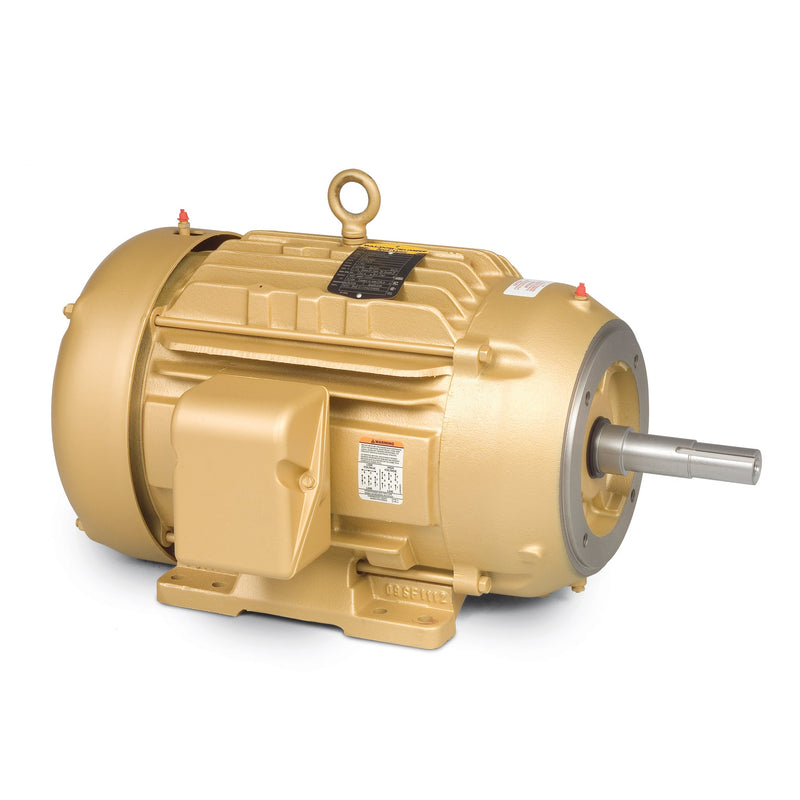

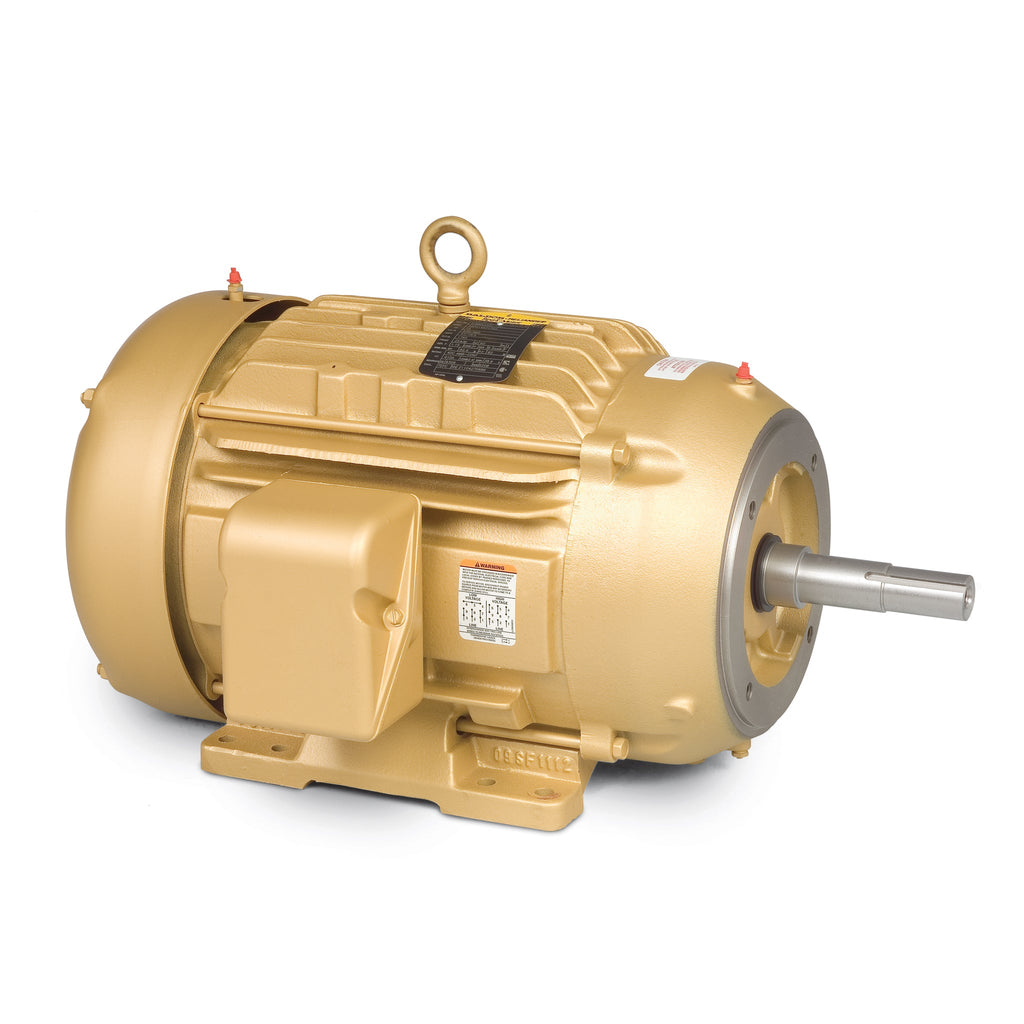

Baldor EJMM4108T - 30 HP, 3525RPM, 3 Phase, 60HZ, 286JM, 1048M, TEFC, F 60HZ Three Phase 30 HP 1048 M Cable

Save $2,239.00
BaldorSKU: EJMM4108T

Price:
Sale price$6,717.00 Regular price$8,956.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor EJMM4108T - 30 HP Close Coupled Motor

Introducing the Baldor EJMM4108T, a high-performance 30 HP close coupled motor designed for reliable operation in various industrial applications. With a robust speed of 3525 RPM and a three-phase power supply at 60Hz, this motor is engineered to deliver exceptional efficiency and durability.

Key Features:

  • Power: 30 HP
  • Speed: 3525 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 286JM
  • Enclosure: Totally Enclosed Fan Cooled (TEFC)
  • Product Code: EJMM4108T

This Baldor-Reliance motor is ideal for applications requiring a dependable and efficient power source. As a trusted name in the industry, Baldor ensures that this motor meets high standards of quality and performance.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EJMM4108T. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568394946
Supplier Part Number EJMM4108T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 406.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EJMM4108T
Current @ Voltage 34.000 A @ 460.0 V, 68.000 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.7 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 286JM
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 34.0 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 10 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1048M
Mounting Arrangement F1
Number of Poles 2
Output 30.000 hp
Output @ Frequency 30.000 HP @ 60 HZ
Overall Length 28.69 IN
Phase 3
Power Factor 90
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Pump Coupling Shaft
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3525 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
