Baldor EJMM2542T - 50 HP, 3550RPM, 3 Phase, 60HZ, 324JM, 4248M, Opsb, F 60HZ Three Phase 50 HP 4248 M Cable

Save $2,399.25
BaldorSKU: EJMM2542T

Price:
Sale price$7,197.75 Regular price$9,597.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

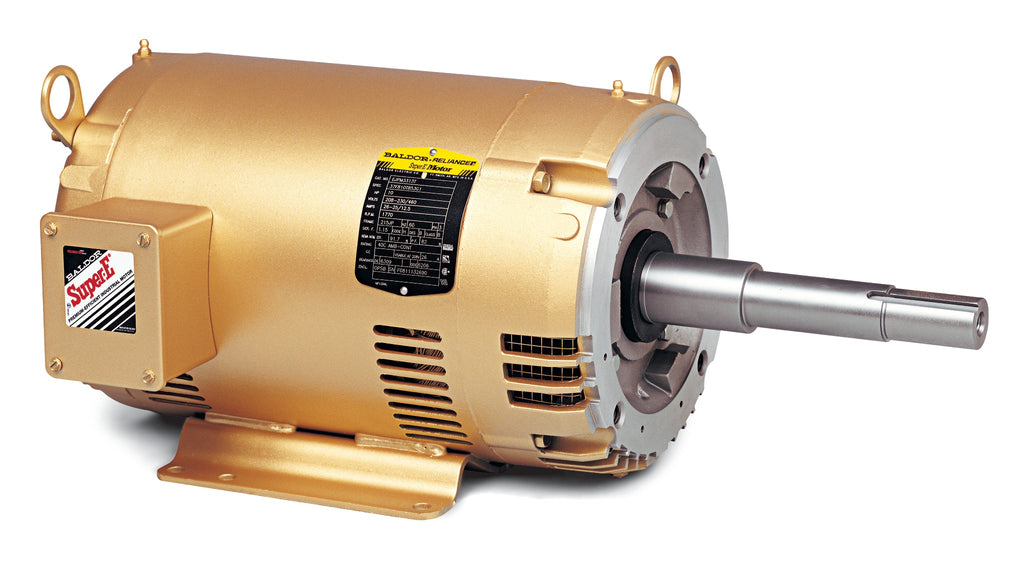

Baldor EJMM2542T - 50 HP Close Coupled Motor

Introducing the Baldor EJMM2542T, a high-performance 50 HP, 3550 RPM, 3 Phase, 60HZ motor designed for reliable operation in various industrial applications. This motor features a robust 324JM frame and is part of the JM, JP, and WCP Close Coupled Motors series, ensuring compatibility with a wide range of pumps and equipment.

With its durable construction and efficient design, the Baldor EJMM2542T is ideal for those seeking a dependable solution for their pumping needs. Whether you're replacing an existing motor or upgrading your system, this motor delivers the power and performance you require.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EJMM2542T to ensure compatibility. Our team is here to help you find the perfect solution for your needs.

Product Specifications:

  • Power: 50 HP
  • Speed: 3550 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ
  • Frame: 324JM
  • Product Code: EJMM2542T

Choose the Baldor EJMM2542T for your next project and experience the quality and reliability that Baldor-Reliance motors are known for.

UPC 781568138212
Supplier Part Number EJMM2542T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals NEMA_PREMIUM, NEMA PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 421.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EJMM2542T
Current @ Voltage 116.000 A @ 230.0 V, 58.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPSB
Feedback Device NO FEEDBACK
Frame 324JM
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
High Voltage Full Load Amps 58.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 6 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 4248M
Mounting Arrangement F1
Number of Poles 2
Output 50.000 hp
Output @ Frequency 50.000 HP @ 60 HZ
Overall Length 26.94 IN
Phase 3
Power Factor 87
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
Service Factor 1.15
Shaft Diameter 1.250 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3550 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
