Baldor EHM2523T - 15 HP, 1765RPM, 3 Phase, 60HZ, 254T, 3948M, Opsb, F1 60HZ Three Phase 15 HP 3948 M Cable

Save $762.75
BaldorSKU: EHM2523T

Price:
Sale price$2,288.25 Regular price$3,051.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

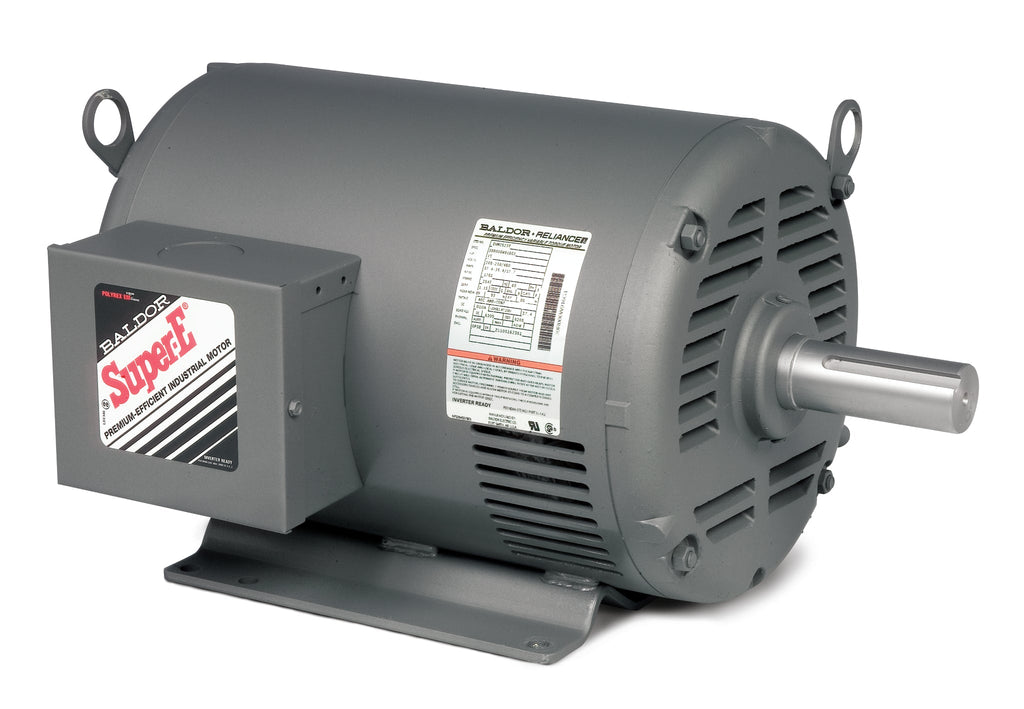

Baldor EHM2523T - 15 HP General Purpose HVAC Motor

The Baldor EHM2523T is a high-performance 15 HP, 1765 RPM, 3-phase HVAC motor designed for a variety of general-purpose applications. With a robust 254T frame and operating at 60Hz, this motor is engineered for reliability and efficiency, making it an ideal choice for HVAC systems and other industrial uses.

Key Features:

  • Power: 15 HP
  • Speed: 1765 RPM
  • Phase: 3-Phase
  • Frequency: 60Hz
  • Frame Size: 254T
  • Product Code: EHM2523T

As a trusted vendor, Baldor ensures that this motor meets high standards of quality and performance, making it a reliable choice for your HVAC needs. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right components for your applications.

If you have questions or need assistance in finding the right pump, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EHM2523T to ensure compatibility. Our team is here to help you with any inquiries or challenges you may face in selecting the right item.

UPC 781568424162
Supplier Part Number EHM2523T
Category AC Motors
Subcategory General Purpose HVAC Motors
Product Family General Purpose
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 236.999
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EHM2523T
Current @ Voltage 36.400 A @ 230.0 V, 39.000 A @ 208.0 V, 18.200 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 254T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 18.2 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3948M
Mounting Arrangement F1
Number of Poles 4
Output 15.000 hp
Output @ Frequency 15.000 HP @ 60 HZ
Overall Length 23.19 IN
Phase 3
Power Factor 83
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
