Baldor EHM2276T - 7.5 HP, 1180RPM, 3 Phase, 60HZ, 254T, 0954M, TEFC, F 60HZ Three Phase 7.5 HP 0954 M Cable

Save $1,063.25
BaldorSKU: EHM2276T

Price:
Sale price$3,189.75 Regular price$4,253.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

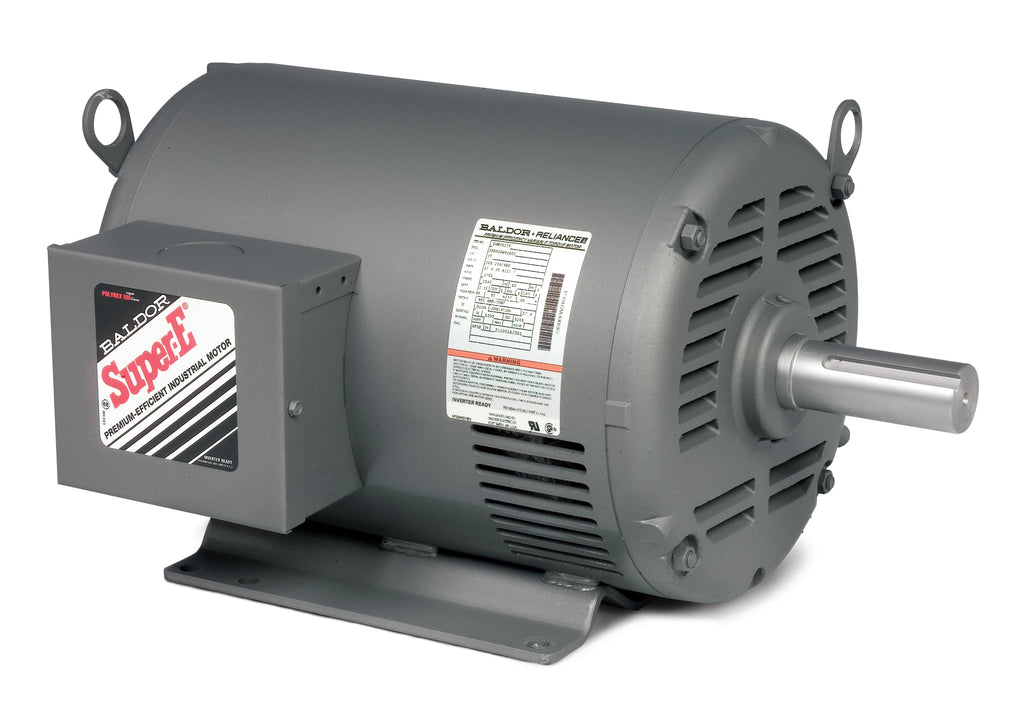

Baldor EHM2276T - 7.5 HP General Purpose HVAC Motor

Upgrade your HVAC system with the Baldor EHM2276T, a high-performance general purpose motor designed for reliability and efficiency. With a robust 7.5 HP output and a speed of 1180 RPM, this 3-phase motor operates at 60HZ, making it ideal for various applications in heating, ventilation, and air conditioning.

Key specifications include:

  • Power: 7.5 HP
  • Speed: 1180 RPM
  • Phase: 3
  • Frequency: 60HZ
  • Frame Size: 254T
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: EHM2276T

This motor is built to withstand demanding environments, ensuring long-lasting performance and minimal maintenance. Whether you are replacing an old motor or upgrading your system, the Baldor EHM2276T is a reliable choice.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EHM2276T. Our team is here to help you find the perfect solution for your needs.

UPC 781568720837
Supplier Part Number EHM2276T
Category AC Motors
Subcategory General Purpose HVAC Motors
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 294.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EHM2276T
Current @ Voltage 22.000 A @ 230.0 V, 23.000 A @ 208.0 V, 11.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 254T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 11.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0954M
Mounting Arrangement F1
Number of Poles 6
Output 7.500 hp
Output @ Frequency 7.500 HP @ 60 HZ
Overall Length 23.36 IN
Phase 3
Power Factor 70
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator Mounting Provisions Only
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1180 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
