Baldor EFM3116T - 1 HP, 1770RPM, 3 Phase, 60HZ, 143T, 3520M, Opsb, F2 60HZ Three Phase Three Phase 1 HP 3520 M Cable

Save $292.75
BaldorSKU: EFM3116T

Price:
Sale price$878.25 Regular price$1,171.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

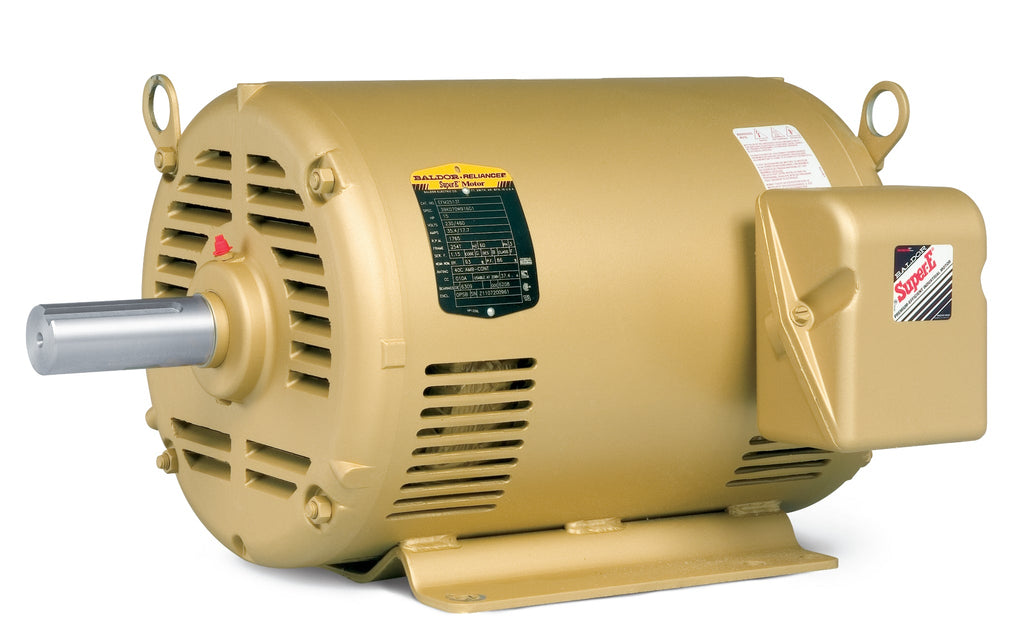

Baldor EFM3116T - 1 HP Three Phase Open Motor

Discover the reliability and performance of the Baldor EFM3116T, a high-quality 1 HP, 1770 RPM three-phase open motor designed for various industrial applications. Operating at 60Hz, this motor features a 143T frame and is built to deliver exceptional efficiency and durability.

Key Specifications:

  • Power: 1 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 143T
  • Product Code: EFM3116T

This Baldor-Reliance motor is ideal for applications requiring robust performance and reliability. Whether you are replacing an existing motor or upgrading your equipment, the EFM3116T is a perfect choice.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the EFM3116T. Our team is here to help you find the right item for your needs.

UPC 781568173367
Supplier Part Number EFM3116T
Category AC Motors
Subcategory Three Phase Open
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 35.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EFM3116T
Current @ Voltage 3.200 A @ 208.0 V, 3.200 A @ 230.0 V, 1.600 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 85.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 143T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.6 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code N
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3520M
Mounting Arrangement F2
Number of Poles 4
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 11.13 IN
Phase 3
Power Factor 69
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
