Baldor EFM2394T - 15 HP, 3520RPM, 3 Phase, 60HZ, 254T, 0930M, TEFC, F2 60HZ Three Phase Three Phase 15 HP 0930 M Cable

Save $1,037.50
BaldorSKU: EFM2394T

Price:
Sale price$3,112.50 Regular price$4,150.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

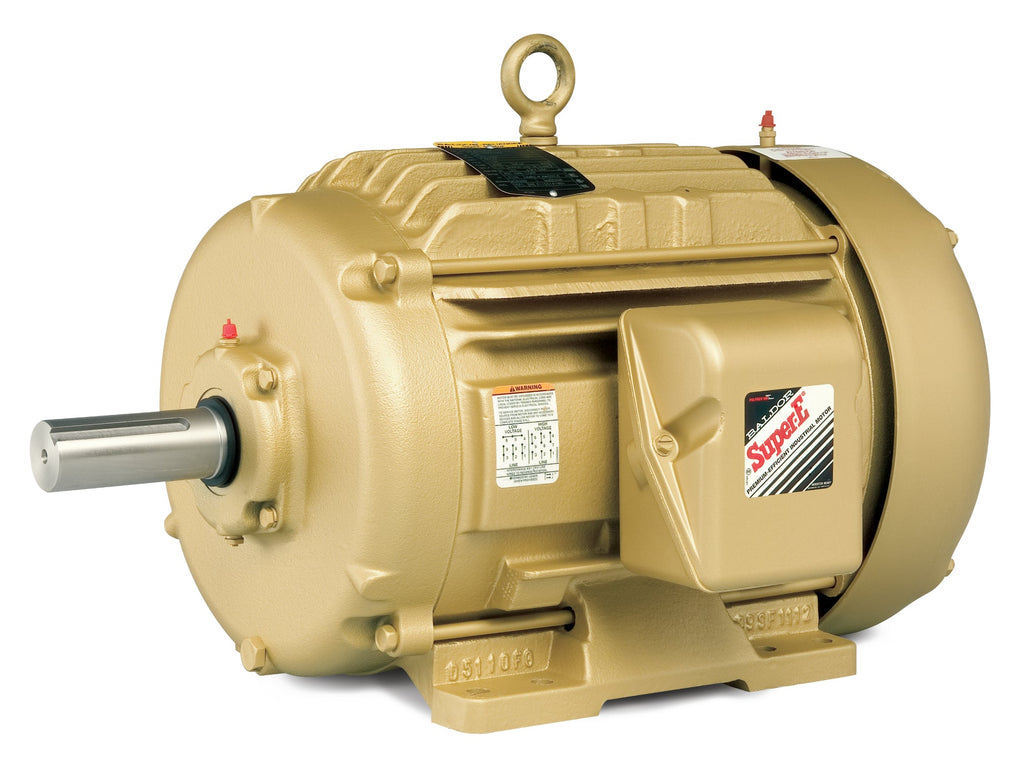

Baldor EFM2394T - 15 HP Three Phase Enclosed Motor

Discover the power and reliability of the Baldor EFM2394T, a high-performance 15 HP motor designed for three-phase applications. Operating at 3520 RPM and 60HZ, this motor is built to deliver exceptional efficiency and durability. With a 254T frame size and TEFC (Totally Enclosed Fan Cooled) design, it ensures optimal performance in various industrial settings.

Key Features:

  • Power: 15 HP
  • Speed: 3520 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ
  • Frame Size: 254T
  • Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: EFM2394T

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor EFM2394T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568708026
Supplier Part Number EFM2394T
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 236.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number EFM2394T
Current @ Voltage 35.000 A @ 230.0 V, 38.000 A @ 208.0 V, 17.500 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 254T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 17.5 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0930M
Mounting Arrangement F2
Number of Poles 2
Output 15.000 hp
Output @ Frequency 15.000 HP @ 60 HZ
Overall Length 23.36 IN
Phase 3
Power Factor 87
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3520 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
