Baldor ECTM4110T - 40 Air Overhp, 1775RPM, 3 Phase, 60HZ, 324T, 1254 60HZ Three Phase

Save $2,582.50
BaldorSKU: ECTM4110T

Price:
Sale price$7,747.50 Regular price$10,330.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

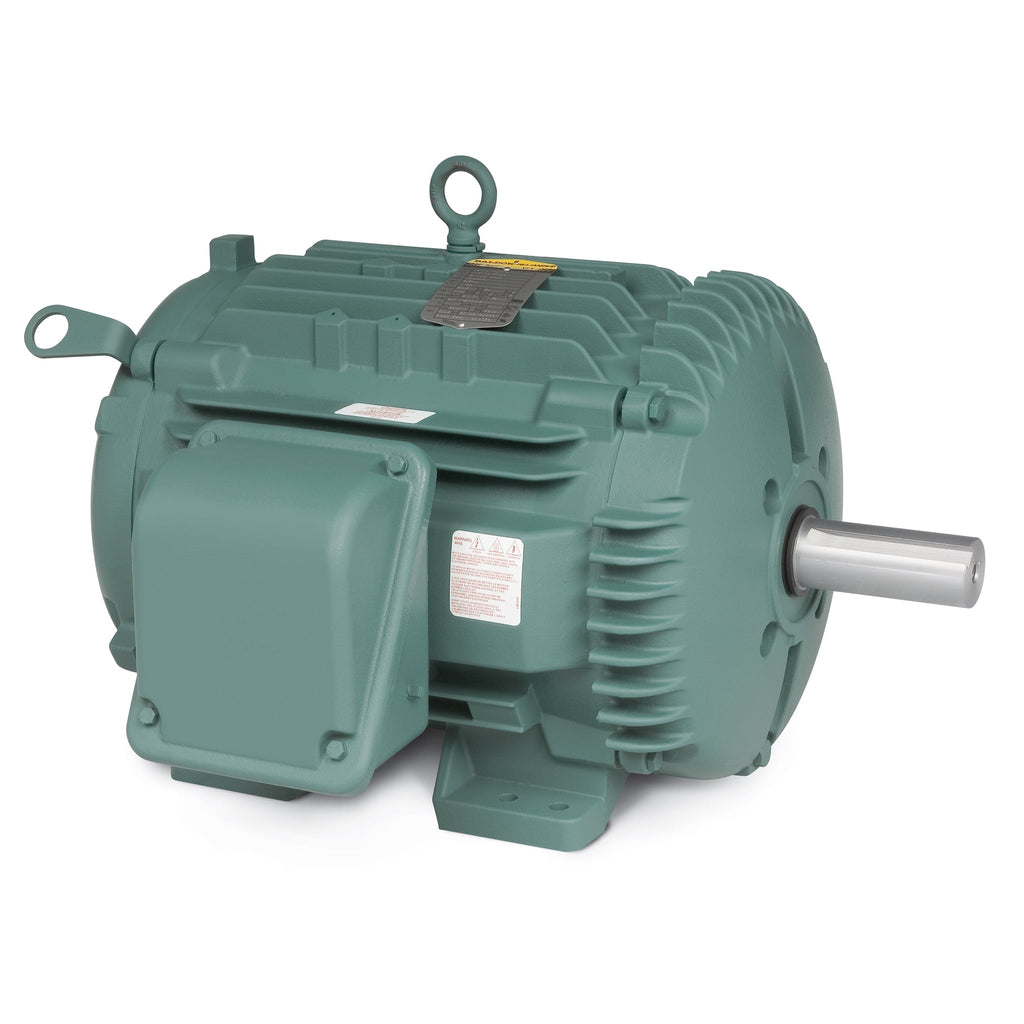

Baldor ECTM4110T Chiller/Cooling Tower Motor

The Baldor ECTM4110T is a high-performance chiller and cooling tower motor designed for reliable operation in demanding environments. With a power rating of 40 Air Over Horsepower (HP) and a speed of 1775 RPM, this 3-phase motor operates efficiently at 60Hz, making it an ideal choice for various industrial applications.

Specifications:

  • Power: 40 Air Over HP
  • Speed: 1775 RPM
  • Phase: 3
  • Frequency: 60Hz
  • Frame Size: 324T
  • Product Code: ECTM4110T

As a trusted vendor, Baldor provides durable and efficient motors that meet the needs of cooling systems. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your application. If you have questions or need assistance, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you are having trouble finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568408407
Supplier Part Number ECTM4110T
Category AC Motors
Subcategory Chiller/Cooling Tower Motors
Product Family Super-E Chemical Processing
Agency Approvals NEMA_PREMIUM, UR, CURUS, CSA EEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 552.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECTM4110T
Current @ Voltage 48.000 A @ 460.0 V, 96.000 A @ 230.0 V, 102.000 A @ 208.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.1 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEAO
Feedback Device NO FEEDBACK
Frame 324T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 48.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Vertical Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 8 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1254M
Mounting Arrangement F1
Number of Poles 4
Output 40.000 hp
Output @ Frequency 40.000 HP @ 60 HZ
Overall Length 28.38 IN
Phase 3
Power Factor 82
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 2.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1775 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
