Baldor ECTM3774T - 10 HP, 1765RPM, 3 Phase, 60HZ, 213T, 0748M, Teao, F1 60HZ Three Phase 10 HP 0748 M Cable

Save $913.00
BaldorSKU: ECTM3774T

Price:
Sale price$2,739.00 Regular price$3,652.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

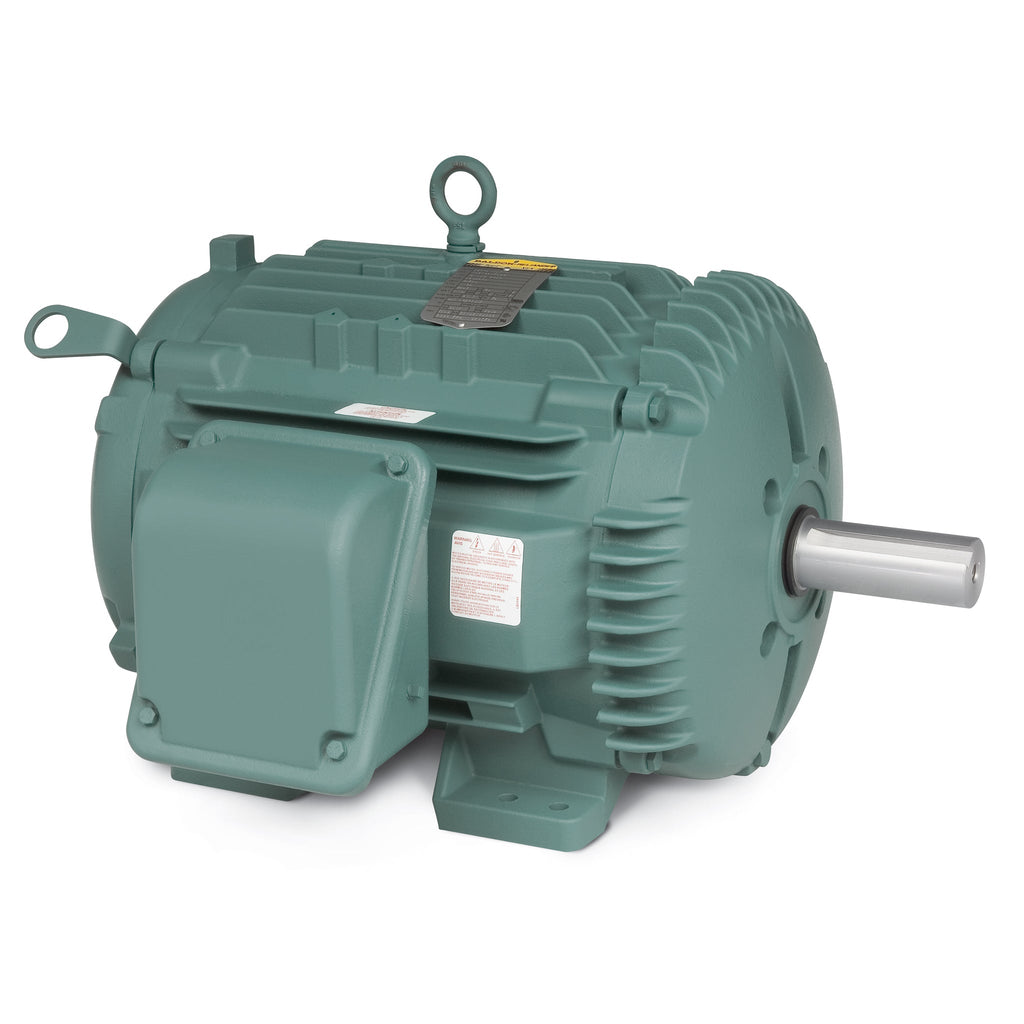

Baldor ECTM3774T - 10 HP Chiller/Cooling Tower Motor

Upgrade your cooling system with the Baldor ECTM3774T, a high-performance 10 HP chiller/cooling tower motor designed for efficiency and reliability. Operating at 1765 RPM, this robust 3-phase motor is engineered for 60Hz applications, making it an ideal choice for various industrial and commercial cooling needs.

Specifications:

  • Power: 10 HP
  • Speed: 1765 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 213T
  • Enclosure: TEAO (Totally Enclosed Air Over)
  • Product Code: ECTM3774T

As a trusted vendor, Baldor ensures that this motor meets the highest standards of quality and performance, making it a reliable choice for your cooling applications. At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor ECTM3774T. If you encounter any difficulties in finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568408353
Supplier Part Number ECTM3774T
Category AC Motors
Subcategory Chiller/Cooling Tower Motors
Product Family Chemical Processing (Not DC)
Agency Approvals CSA, CURUSEEV, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 231.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECTM3774T
Current @ Voltage 24.600 A @ 230.0 V, 27.000 A @ 208.0 V, 12.300 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.7 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEAO
Feedback Device NO FEEDBACK
Frame 213T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 12.3 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Vertical Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0748M
Mounting Arrangement F1
Number of Poles 4
Output 10.000 hp
Output @ Frequency 10.000 HP @ 60 HZ
Overall Length 19.54 IN
Phase 3
Power Factor 83
Pulley End Bearing Type Sealed Bearing
Pulley Face Code Standard
Pulley Shaft Indicator Tapped & Key
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 208 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ, 208.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
