Baldor ECTM3770T - 7.5 HP, 1770RPM, 3 Phase, 60HZ, 213T, 0738M, Teao, F 60HZ Three Phase 7.5 HP 0738 M Cable

Save $680.50
BaldorSKU: ECTM3770T

Price:
Sale price$2,041.50 Regular price$2,722.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

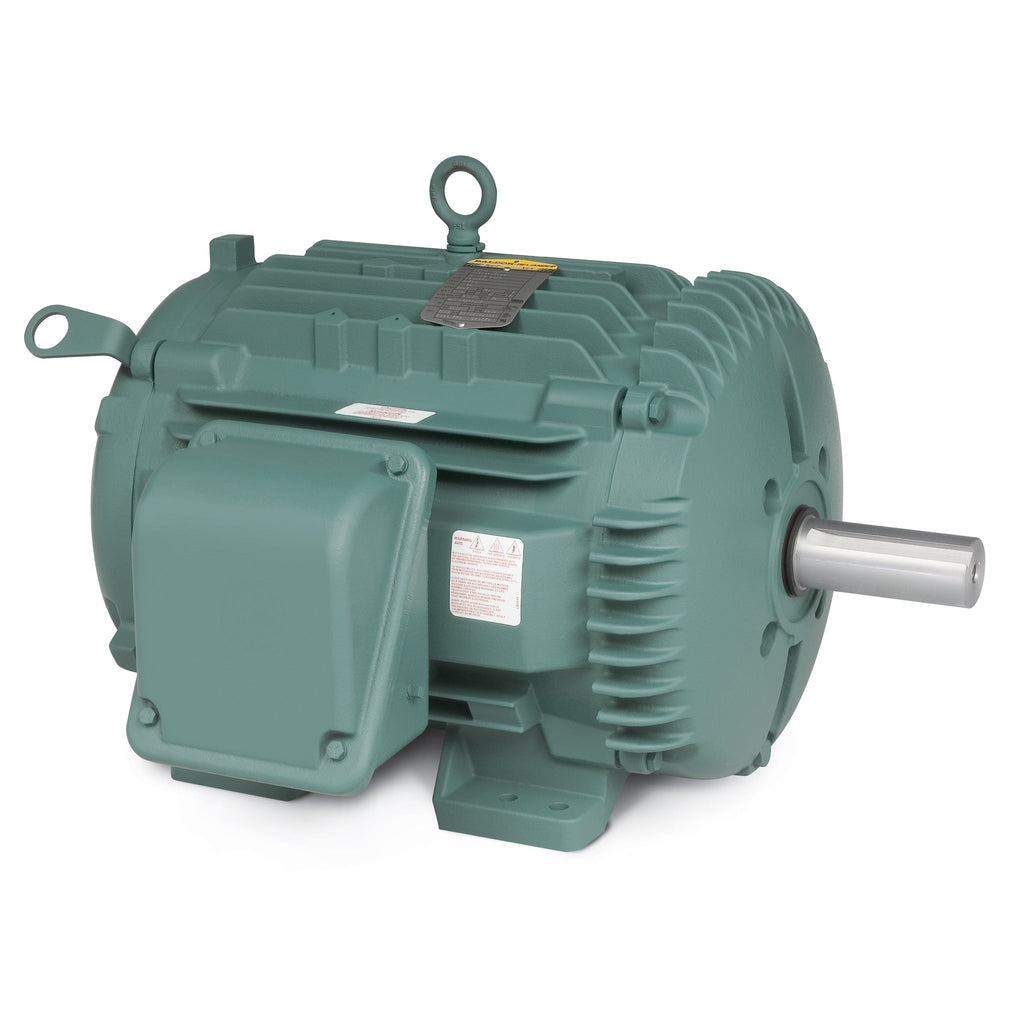

Baldor ECTM3770T - 7.5 HP Chiller/Cooling Tower Motor

Upgrade your cooling system with the Baldor ECTM3770T, a high-performance chiller and cooling tower motor designed for efficiency and reliability. This robust motor features:

  • Power: 7.5 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 213T
  • Enclosure Type: TEAO (Totally Enclosed Air Over)
  • Product Code: ECTM3770T

This Baldor-Reliance motor is ideal for various applications, ensuring optimal performance in demanding environments. As a trusted source for replacement pumps and parts, Pump-Stop is here to help you find the right solution for your needs. If you have questions or need assistance locating the correct pump, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568408346
Supplier Part Number ECTM3770T
Category AC Motors
Subcategory Chiller/Cooling Tower Motors
Product Family Chemical Processing (Not DC)
Agency Approvals UR, CURUSEEV, CSA
Ambient Temperature 40 °C
Approximate Weight (lbs) 170.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECTM3770T
Current @ Voltage 19.000 A @ 230.0 V, 20.200 A @ 208.0 V, 9.500 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.7 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEAO
Feedback Device NO FEEDBACK
Frame 213T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 9.5 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code J
Lifting Lugs Vertical Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0738M
Mounting Arrangement F1
Number of Poles 4
Output 7.500 hp
Output @ Frequency 7.500 HP @ 60 HZ
Overall Length 19.54 IN
Phase 3
Power Factor 81
Pulley End Bearing Type Sealed Bearing
Pulley Face Code Standard
Pulley Shaft Indicator Tapped & Key
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
