Baldor ECS101M0H7FB4 - 7.5 HP, 1800RPM, 3 Phase, 60HZ, 213TC, TEFC, N 60HZ Three Phase 7.5 HP

Save $711.00
BaldorSKU: ECS101M0H7FB4

Price:
Sale price$2,133.00 Regular price$2,844.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

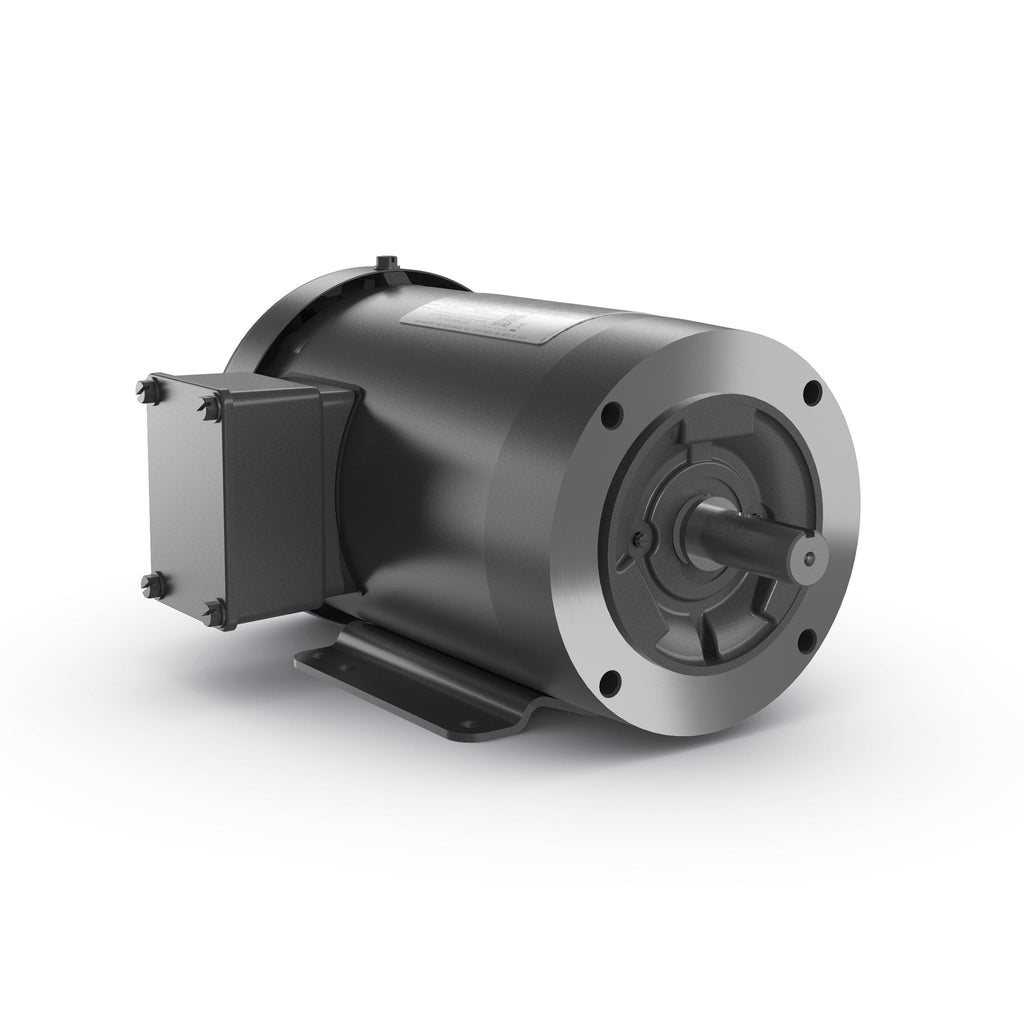

Baldor-Reliance EC Titanium Motor - 7.5 HP

Introducing the Baldor ECS101M0H7FB4, a high-performance EC Titanium Motor designed for efficiency and durability. With a power output of 7.5 HP and a speed of 1800 RPM, this three-phase motor operates at 60HZ, making it ideal for a variety of industrial applications.

Key features include:

  • Type: EC Titanium Motor
  • Phase: 3
  • Frame Size: 213TC
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: ECS101M0H7FB4

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor. If you’re having trouble locating the right item, our team is here to help!

UPC 781568958469
Supplier Part Number ECS101M0H7FB4
Category AC Motors
Subcategory EC Titanium Motors
Product Family General Purpose
Agency Approvals WEEE, CULUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 167.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECS101M0H7FB4
Constant Torque Speed Range 6
Current @ Voltage 17.740 A @ 230.0 V, 8.870 A @ 460.0 V
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 213TC
Frame Material Steel
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 8.9 a
Insulation Class F
Inverter Code Inverter Duty
IP Rating NONE
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Termination Flying Leads
Motor Letter Type Brushless Wound Field PM Rotor
Motor Standards NEMA
Motor Type 3730B
Mounting Arrangement F1
Number of Poles 4
Output 7.500 hp
Output @ Frequency 7.500 HP @ 60 HZ
Overall Length 18.63 IN
Phase 3
Power Factor 92
Pulley Face Code C-Face
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.5
Shaft Diameter 1.375 IN
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Speed 1800 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
