Baldor ECS101M0H10FB4 - 10 HP, 1800RPM, 3 Phase, 60HZ, 215TC, TEFC, N 60HZ Three Phase 10 HP

Save $838.75
BaldorSKU: ECS101M0H10FB4

Price:
Sale price$2,516.25 Regular price$3,355.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

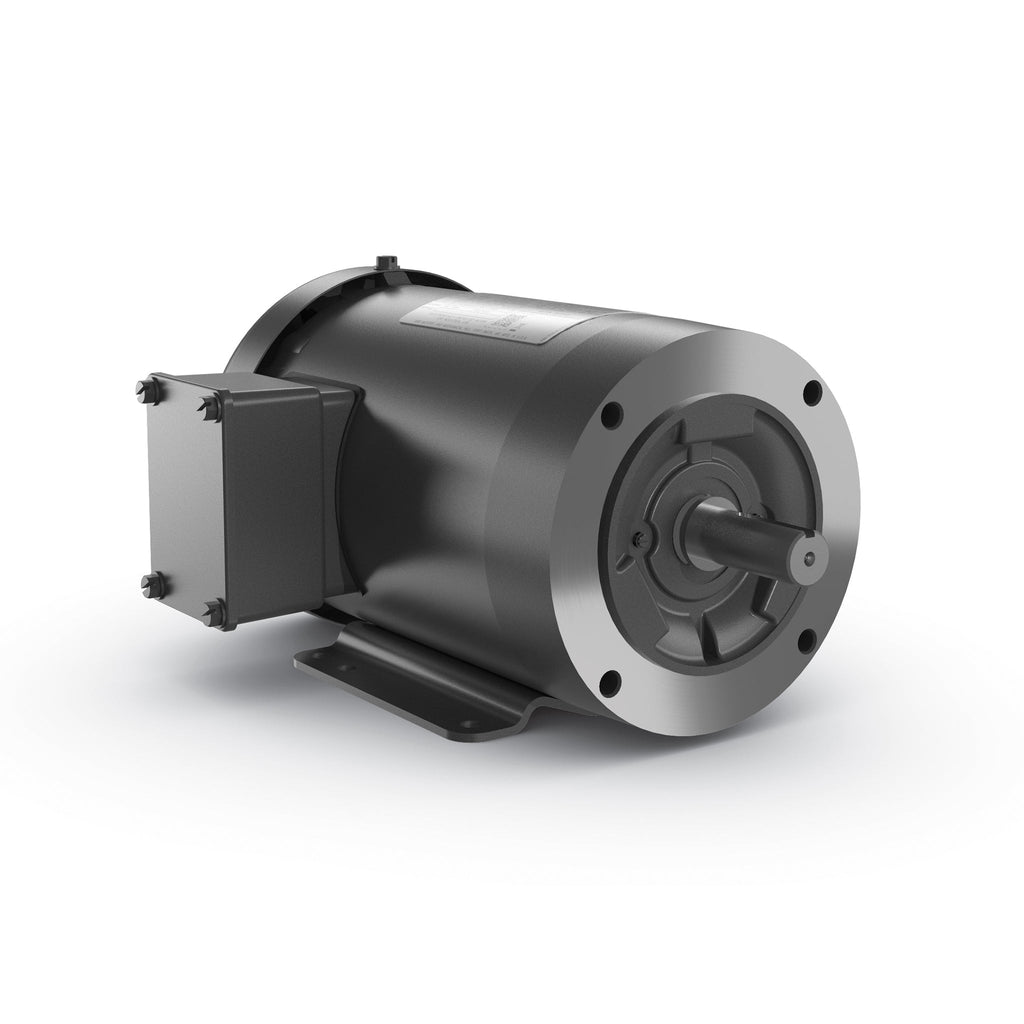

Baldor-Reliance EC Titanium Motor - 10 HP

Introducing the Baldor ECS101M0H10FB4, a high-performance 10 HP EC Titanium Motor designed for efficiency and durability. Operating at 1800 RPM, this three-phase motor is ideal for a variety of industrial applications. With a frequency of 60Hz and a 215TC frame size, it ensures reliable performance in demanding environments.

The TEFC (Totally Enclosed Fan Cooled) design protects the motor from dust and moisture, making it suitable for both indoor and outdoor use. This motor is part of the Baldor-Reliance family, known for its commitment to quality and innovation in motor technology.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor ECS101M0H10FB4 to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

Explore our selection of AC Motors, Baldor-Reliance Motors & Drives, and EC Titanium Motors to find the perfect solution for your needs.

UPC 781568958360
Supplier Part Number ECS101M0H10FB4
Category AC Motors
Subcategory EC Titanium Motors
Product Family General Purpose
Agency Approvals WEEE, CULUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 131.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECS101M0H10FB4
Constant Torque Speed Range 6
Current @ Voltage 11.220 A @ 460.0 V, 22.440 A @ 230.0 V
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.8 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 215TC
Frame Material Steel
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 11.2 a
Insulation Class F
Inverter Code Inverter Duty
IP Rating NONE
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Termination Flying Leads
Motor Letter Type Brushless Wound Field PM Rotor
Motor Standards NEMA
Motor Type 3740B
Mounting Arrangement F1
Number of Poles 4
Output 10.000 hp
Output @ Frequency 10.000 HP @ 60 HZ
Overall Length 19.75 IN
Phase 3
Power Factor 94
Pulley Face Code C-Face
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.5
Shaft Diameter 1.375 IN
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Speed 1800 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
