Baldor ECS100T8H2DC4 - 2 HP, 1800RPM, 3 Phase, 60HZ, 145TC, 3524B, TEFC, F1 60HZ Three Phase 2 HP

Save $755.50
BaldorSKU: ECS100T8H2DC4

Price:
Sale price$2,266.50 Regular price$3,022.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

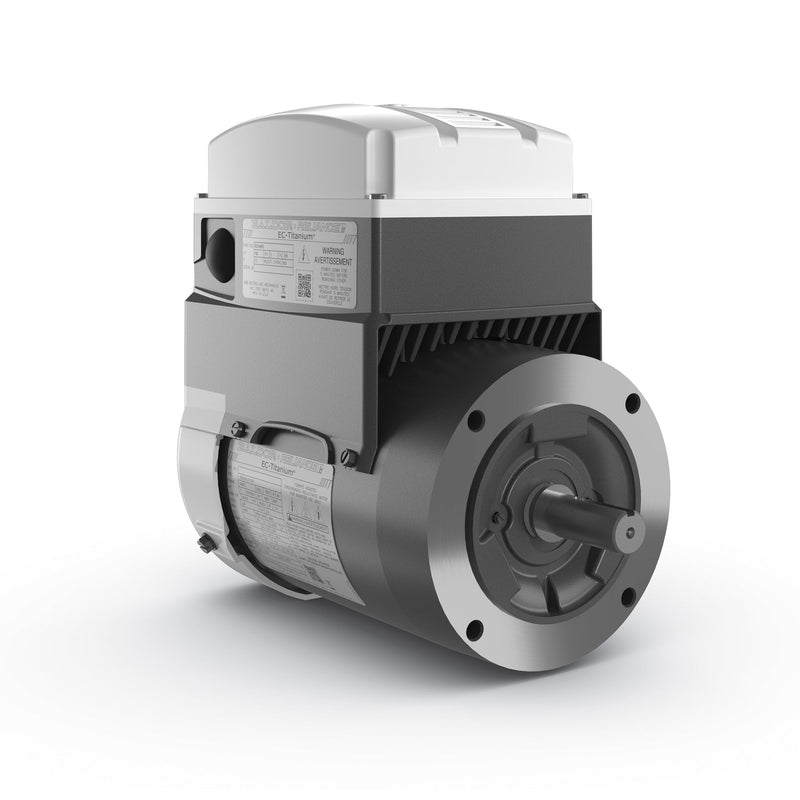

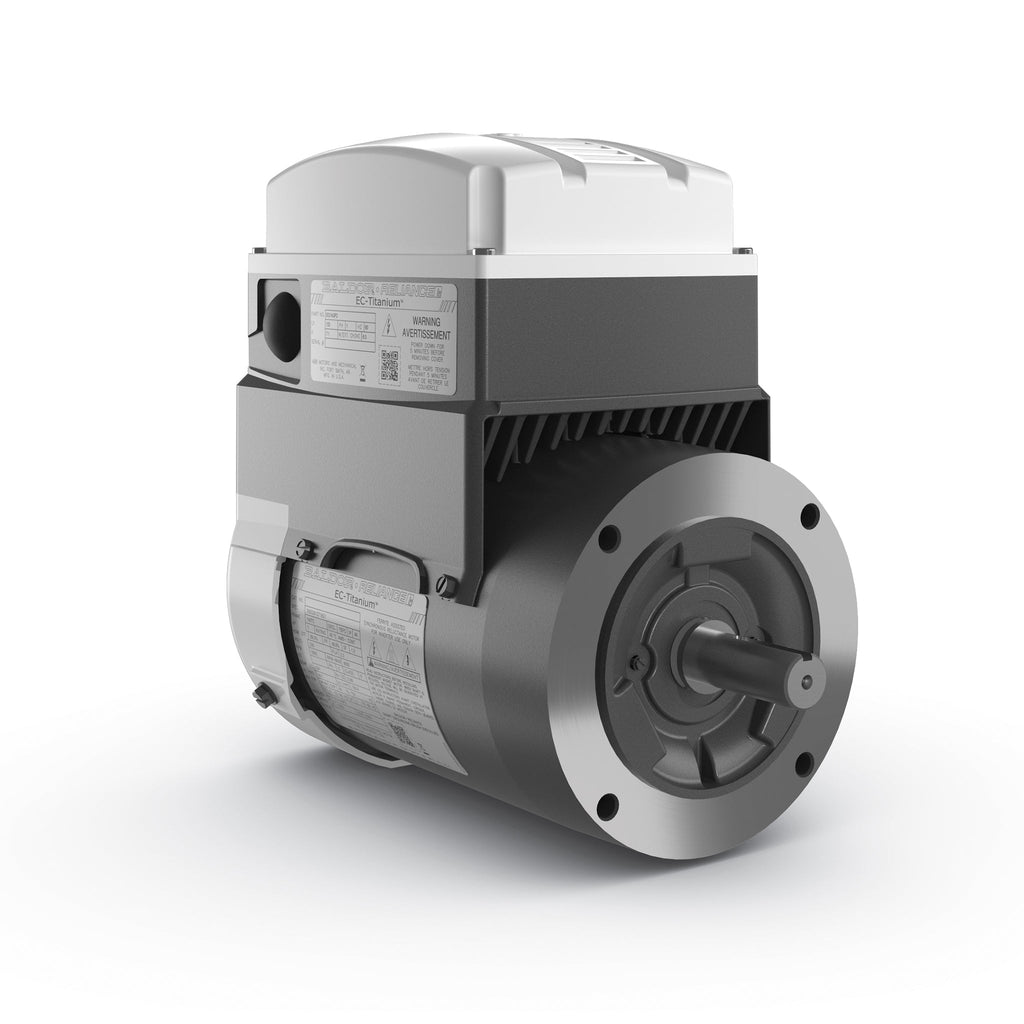

Baldor-Reliance EC Titanium Motor - Model ECS100T8H2DC4

Upgrade your industrial applications with the Baldor-Reliance EC Titanium Motor, featuring a robust 2 HP power output and a reliable 1800 RPM speed. This three-phase motor operates at 60Hz, making it ideal for a variety of demanding environments.

Specifications:

  • Power: 2 HP
  • Speed: 1800 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 145TC
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: ECS100T8H2DC4

This motor is designed for durability and efficiency, making it a perfect choice for various applications in manufacturing and processing. With its TEFC design, it ensures protection against dust and moisture, enhancing its longevity and performance.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568960486
Supplier Part Number ECS100T8H2DC4
Category AC Motors
Subcategory EC Titanium Motors
Product Family General Purpose
Agency Approvals BLUETOOTH, CULUS, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 42.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECS100T8H2DC4
Constant Torque Speed Range 6
Current @ Voltage 4.800 A @ 230.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.3 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 145TC
Frame Material Steel
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 4.8 a
Insulation Class F
Inverter Code 3
IP Rating NONE
KVA Code -
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Quantity/Wire Size 3 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Brushless Wound Field PM Rotor
Motor Standards NEMA
Motor Type 3524B
Mounting Arrangement F1
Number of Poles 4
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 12.38 IN
Phase 3
Power Factor 93
Pulley Face Code C-Face
Rodent Screen None
Service Factor 1
Shaft Diameter 0.875 IN
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Speed 1800 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V
Voltage @ Frequency 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
