Baldor ECS100T4H7FC4 - 7.5 HP, 1800RPM, 3 Phase, 60HZ, 213TC, 3730B, TEFC 60HZ Three Phase 7.5 HP

Save $1,203.25
BaldorSKU: ECS100T4H7FC4

Price:
Sale price$3,609.75 Regular price$4,813.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

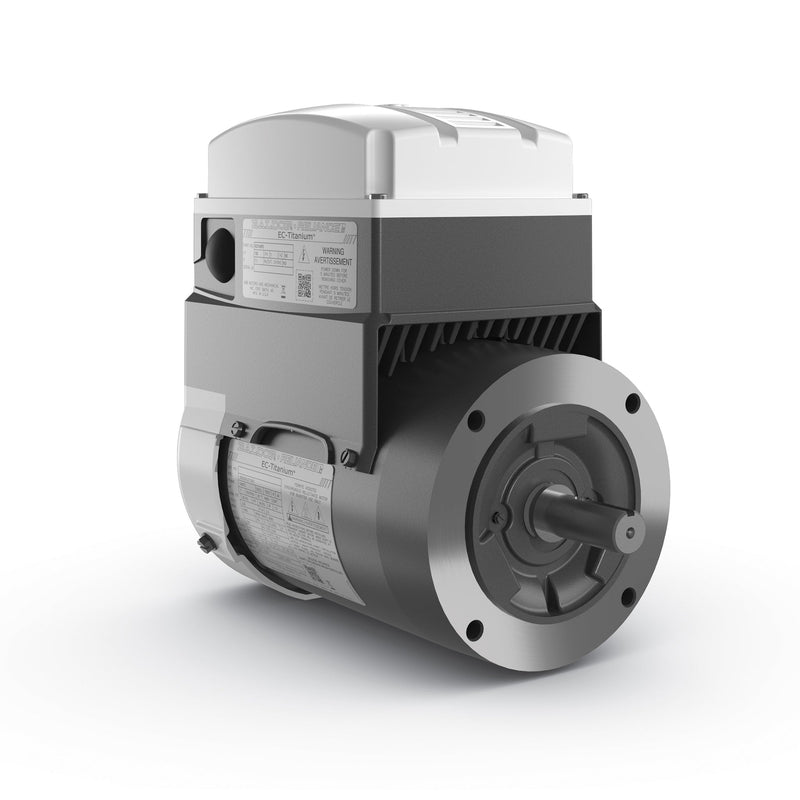

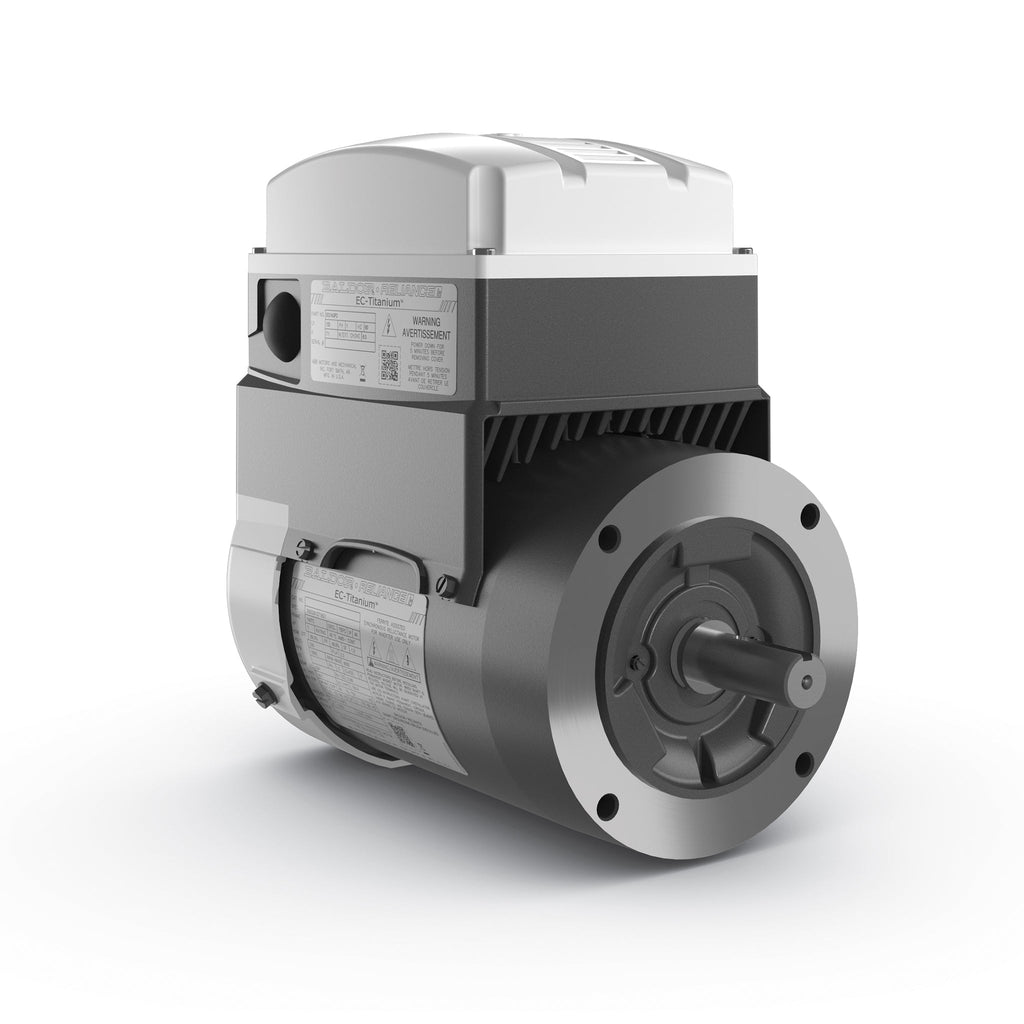

Baldor-Reliance EC Titanium Motor - 7.5 HP

Introducing the Baldor ECS100T4H7FC4, a high-performance EC Titanium Motor designed for efficiency and reliability. With a power output of 7.5 HP and a speed of 1800 RPM, this three-phase motor operates at 60HZ, making it ideal for a variety of industrial applications.

Key specifications include:

  • Power: 7.5 HP
  • Speed: 1800 RPM
  • Phase: 3
  • Frequency: 60HZ
  • Frame Size: 213TC
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: ECS100T4H7FC4

This motor is part of the Baldor-Reliance EC Titanium Motors series, known for their energy efficiency and robust performance. Whether you are replacing an existing motor or upgrading your system, the Baldor ECS100T4H7FC4 is a reliable choice.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568960455
Supplier Part Number ECS100T4H7FC4
Category AC Motors
Subcategory EC Titanium Motors
Product Family General Purpose
Agency Approvals BLUETOOTH, CULUS, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 167.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECS100T4H7FC4
Constant Torque Speed Range 6
Current @ Voltage 8.870 A @ 460.0 V
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.7 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 213TC
Frame Material Steel
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 8.9 a
Insulation Class F
Inverter Code Inverter Duty
IP Rating NONE
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Termination Flying Leads
Motor Letter Type Brushless Wound Field PM Rotor
Motor Standards NEMA
Motor Type 3730B
Mounting Arrangement F1
Number of Poles 4
Output 7.500 hp
Output @ Frequency 7.500 HP @ 60 HZ
Overall Length 18.83 IN
Phase 3
Power Factor 92
Pulley Face Code C-Face
Rodent Screen None
Service Factor 1
Shaft Diameter 1.375 IN
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Speed 1800 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
