Baldor ECS100T4H3EF4 - 3 HP, 1800RPM, 3 Phase, 60HZ, 182T, TEFC, Top 60HZ Three Phase 3 HP

Save $843.00
BaldorSKU: ECS100T4H3EF4

Price:
Sale price$2,529.00 Regular price$3,372.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

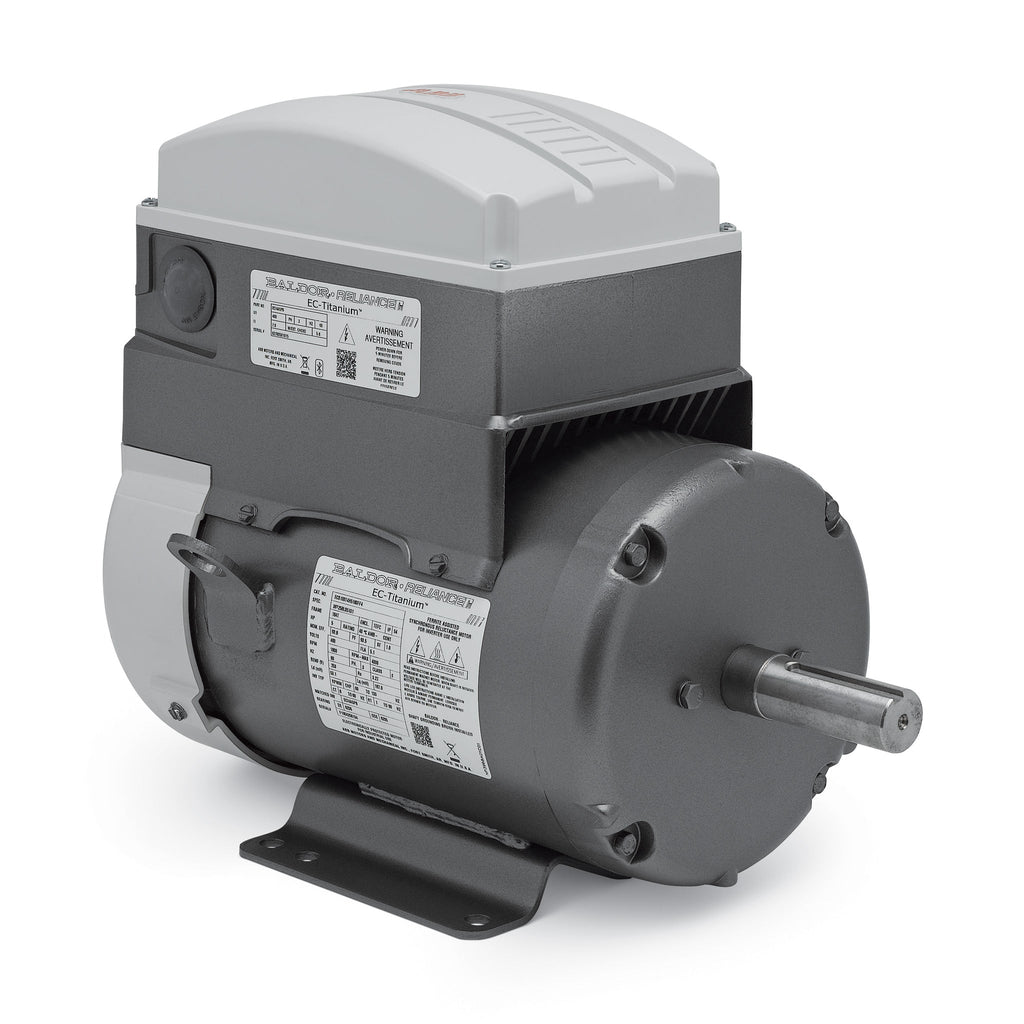

Baldor-Reliance EC Titanium Motor - Model ECS100T4H3EF4

Upgrade your industrial applications with the Baldor-Reliance EC Titanium Motor, featuring a robust 3 HP power output and a reliable 1800 RPM speed. This three-phase motor operates at 60HZ and is designed with a TEFC (Totally Enclosed Fan Cooled) enclosure, ensuring durability and efficiency in demanding environments.

Key Specifications:

  • Power: 3 HP
  • Speed: 1800 RPM
  • Phase: 3
  • Frequency: 60HZ
  • Frame Size: 182T
  • Enclosure Type: TEFC
  • Product Code: ECS100T4H3EF4

This motor is ideal for a variety of applications, providing reliable performance and energy efficiency. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor ECS100T4H3EF4 motor. Our team is here to help you with any inquiries or challenges you may face in selecting the perfect motor for your project.

UPC 781568951248
Supplier Part Number ECS100T4H3EF4
Category AC Motors
Subcategory EC Titanium Motors
Product Family General Purpose
Agency Approvals BLUETOOTH, CULUS, WEEE
Approximate Weight (lbs) 76.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECS100T4H3EF4
Constant Torque Speed Range 6
Design Code B
Drip Cover No Drip Cover
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 182T
Frame Material Steel
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Inverter Code Inverter Duty
IP Rating NONE
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Quantity/Wire Size 3 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Brushless Wound Field PM Rotor
Motor Standards NEMA
Motor Type 3624B
Mounting Arrangement F1
Number of Poles 4
Overall Length 16.71 IN
Phase 3
Pulley Face Code Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Shaft Diameter 1.125 IN
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Speed Code Single Speed
Starting Method INVERTER SPECIAL
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None
