Baldor ECS100T4H10FB4 - 10 HP, 1800RPM, 3 Phase, 60HZ, 215TC, TEFC, Top 60HZ Three Phase 10 HP

Save $1,415.50
BaldorSKU: ECS100T4H10FB4

Price:
Sale price$4,246.50 Regular price$5,662.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

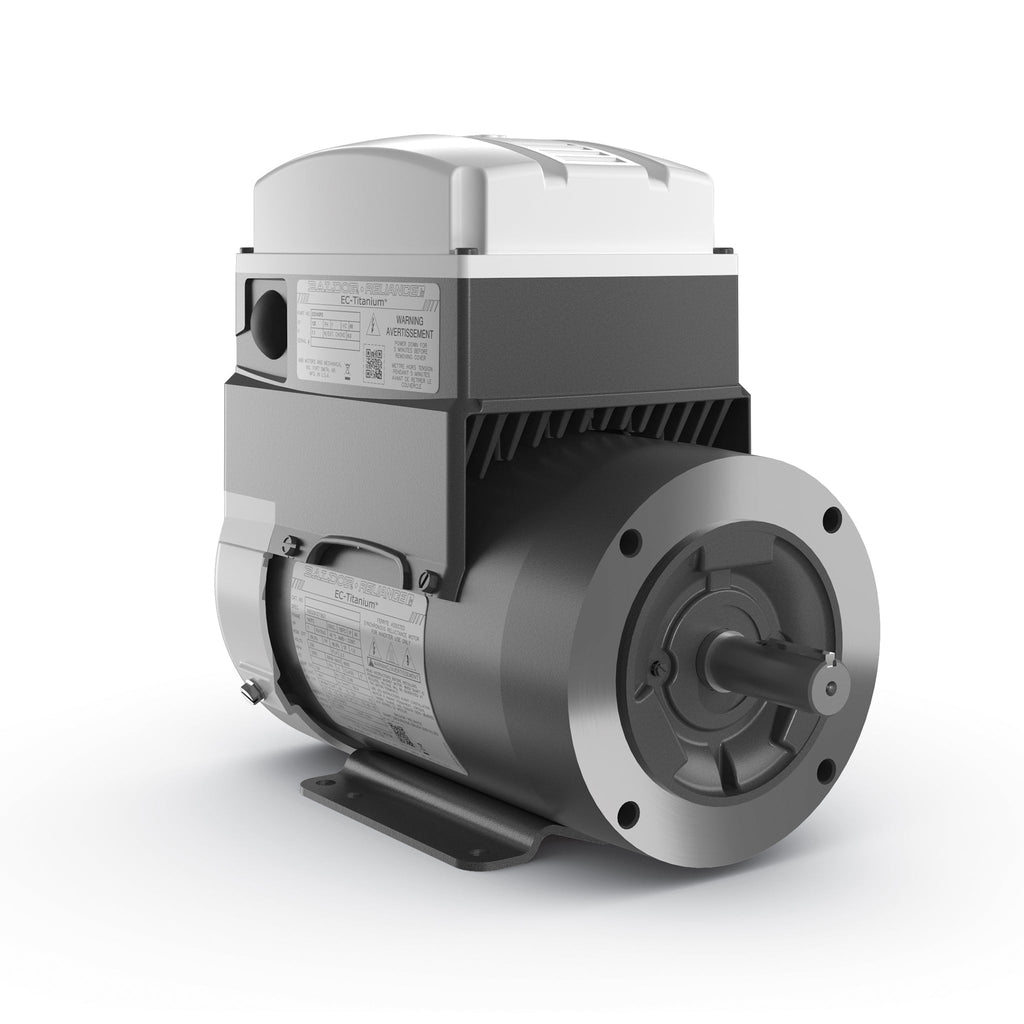

Baldor-Reliance EC Titanium Motors - ECS100T4H10FB4

Upgrade your industrial applications with the Baldor ECS100T4H10FB4, a powerful 10 HP EC Titanium Motor designed for efficiency and reliability. Operating at 1800 RPM, this 3-phase motor is optimized for 60Hz performance, making it an ideal choice for various heavy-duty tasks.

Key Features:

  • Power: 10 HP
  • Speed: 1800 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 215TC
  • Enclosure: Totally Enclosed Fan Cooled (TEFC)

As a trusted vendor, Baldor ensures that this motor meets high standards of performance and durability, making it suitable for a wide range of applications. Whether you are replacing an old motor or upgrading your system, the Baldor EC Titanium Motor is your go-to solution.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568958223
Supplier Part Number ECS100T4H10FB4
Category AC Motors
Subcategory EC Titanium Motors
Product Family General Purpose
Agency Approvals BLUETOOTH, CULUS, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 131.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECS100T4H10FB4
Constant Torque Speed Range 6
Current @ Voltage 11.220 A @ 460.0 V
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.8 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 215TC
Frame Material Steel
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 11.2 a
Insulation Class F
Inverter Code Inverter Duty
IP Rating NONE
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Termination Flying Leads
Motor Letter Type Brushless Wound Field PM Rotor
Motor Standards NEMA
Motor Type 3740B
Mounting Arrangement F1
Number of Poles 4
Output 10.000 hp
Output @ Frequency 10.000 HP @ 60 HZ
Overall Length 19.23 IN
Phase 3
Power Factor 94
Pulley Face Code C-Face
Rodent Screen None
Service Factor 1
Shaft Diameter 1.375 IN
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Speed 1800 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
