Baldor ECS100T2H3EF4 - 3 HP, 1800RPM, 3 Phase, 60HZ, 182T, TEFC, Top 60HZ Three Phase 3 HP

Save $843.00
BaldorSKU: ECS100T2H3EF4

Price:
Sale price$2,529.00 Regular price$3,372.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

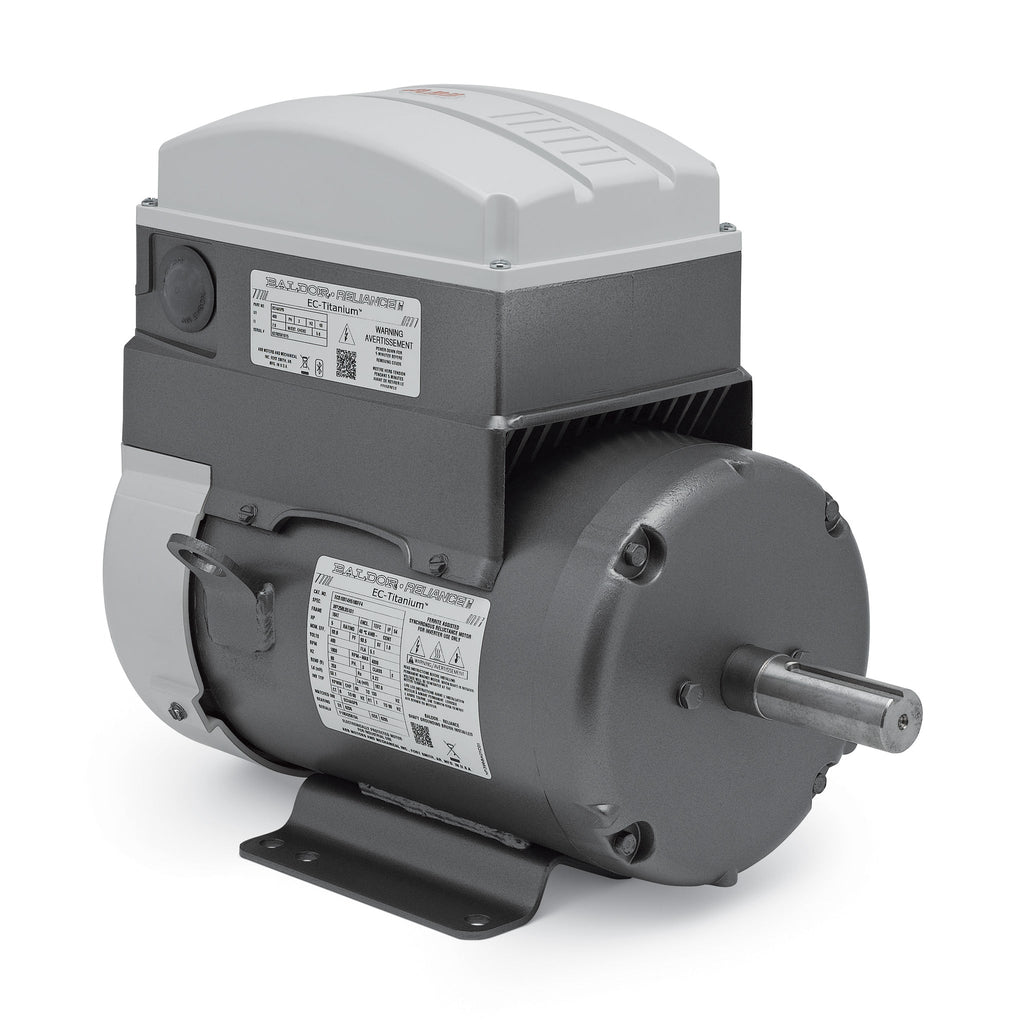

Baldor-Reliance EC Titanium Motors - ECS100T2H3EF4

Introducing the Baldor-Reliance EC Titanium Motor, a high-performance solution designed for demanding applications. This 3 HP motor operates at 1800 RPM and is engineered for three-phase power with a frequency of 60Hz. The motor features a 182T frame size and is built with a Totally Enclosed Fan Cooled (TEFC) design, ensuring durability and efficiency in various environments.

Key Features:

  • Power: 3 HP
  • Speed: 1800 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 182T
  • Design: TEFC (Totally Enclosed Fan Cooled)

This motor is ideal for a wide range of industrial applications, providing reliable performance and energy efficiency. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor ECS100T2H3EF4 to ensure compatibility. Don't hesitate to reach out if you need help locating the right item!

UPC 781568951187
Supplier Part Number ECS100T2H3EF4
Category AC Motors
Subcategory EC Titanium Motors
Product Family General Purpose
Agency Approvals BLUETOOTH, CULUS, WEEE
Approximate Weight (lbs) 80.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number ECS100T2H3EF4
Constant Torque Speed Range 6
Design Code B
Drip Cover No Drip Cover
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 182T
Frame Material Steel
Frequency 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Inverter Code Inverter Duty
IP Rating NONE
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Quantity/Wire Size 3 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Brushless Wound Field PM Rotor
Motor Standards NEMA
Motor Type 3624B
Mounting Arrangement F1
Number of Poles 4
Overall Length 16.71 IN
Phase 3
Pulley Face Code Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Shaft Diameter 1.125 IN
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Speed Code Single Speed
Starting Method INVERTER SPECIAL
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
